Quantic PMI offers a wide range of connectorized Detector Logarithmic Video Amplifiers (DLVA, ERDLVA, SDLVA) designs covering the DC to 40 GHz with extended range models offering dynamic ranges over 70 dB.  Our standard products provide exceptional temperature stability, log linearity and frequency response.  Also, most SDLVAs provide a limited IF output.    Quantic PMI offers custom as well as form, fit, function DLVA’s and SDLVA’s to meet your requirements or replace obsolete products.

If you do not see exactly what you need, please email your requirement to sales@quanticpmi.com so we can propose an instant solution.

Part NumberTypeStatusFrequency RangeFrequency MinFrequency MaxTSSSizeLog SlopeLog Range
GMDA-S4080-60-HERM
Preliminary
SDLVA
-
4 to 8 GHz4 GHz8 GHz-60 dBm Max1.80" x 1.00" x 0.285"
45.72 mm x 25.40 mm x 7.24 mm
25.0 ±1.0 mV/dB Max
25.0 ±2.0 mV/dB Max Over Temperature
-55 dBm to +5 dBm

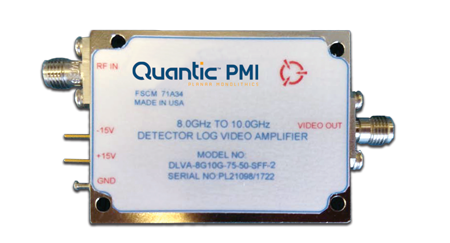

DLVA-8G10G-75-50-SFF-2
Preliminary
DLVAPreliminary8 to 10 GHz8 GHz10 GHz-73 dBm2.00" x 1.254" x 0.40"50 ± 4 mV/dB-70 to +5 dBm
ERDLVA-8G18G-65-70MV-2
Preliminary
DLVAPreliminary8.0 to 18.0 GHz8.0 GHz18.0 GHz71 dBm2.82" x 2.25" x 0.50"70 mV / dB ±3 mV / dB-65 to 0 dBm
ERDLVA-2G8G-65-70MV-2
Preliminary
DLVAPreliminary2.0 to 8.0 GHz2.0 GHz8.0 GHz-71 dBm2.82" x 2.25" x 0.50"70 mV/dB ±3 mV/dB-65 to 0 dBm
EWDM-8G18G-65-70MV-2
Preliminary
DLVAPreliminary8.0 to 18.0 GHz8.0 GHz18.0 GHz-71 dBm2.82" x 2.25" x 0.50"70 mV / dB ±3 mV / dB-65 to 0 dBm
EWDM-2G8G-65-70MV-2
Preliminary
DLVAPreliminary2.0 to 8.0 GHz2.0 GHz8.0 GHz-71 dBm2.82" x 2.25" x 0.50"70±3 mV/dB-65 to 0 dBm
DLVA-6D5G18G-70-JMAKG3
Active
DLVAActive6.5 to 18.0 GHz6.5 GHz18.0 GHz-72 dBm Min4.2" x 2.05" x 0.40"25 mV/dB (±10%)@ 50 OHM LOAD-70 dBm to 0 dBm
SDLVA-2G18G-50MV-100-NRF-HERM
Preliminary
SDLVAPreliminary2.0 to 18.0 GHz2.0 GHz18.0 GHz-69 dB Min3.2" x 1.8" x 0.4"50 mV/dB (±1.5mV) 100 OHMs-70 to +5 dBm
ERDLVA-218-73-50MV
Preliminary
DLVAPreliminary2.0 to 18.0 GHz2.0 GHz18.0 GHz-70dBm Max1.90" x 1.50" x 0.31"50mV/dB ±5MV/dB INTO 100 OHMS LOAD-68 dBm to 5 dBm
SDLVA-2G18G-50MV-100-NRF
Active
SDLVAActive2.0 to 18.0 GHz2.0 GHz18.0 GHz-69 dB Min3.2" x 1.8" x 0.4"50 mV/dB (±1.5 mV) 100 Ohm-70 to +5 dBm
SDLVA-30M-80-12V
Preliminary
SDLVAPreliminary0.025 to 0.035 GHz0.025 GHz0.035 GHz
-
3.51" x 1.50" x 0.47"25 MV/dB to 0 dBm Typ
-
SDLVA-1G20G-55-12-SFF-100OHM
Preliminary
SDLVAPreliminary1.0 to 20.0 GHz1.0 GHz20.0 GHz-58 dBm Typ1.08" x 0.71" x 0.29"50 mV / dB Typ-55 to +5 dBm
SDLVA-0120-70-CONDOR-RoHS
Preliminary
SDLVAPreliminary0.75 to 1.25 GHz0.75 GHz1.25 GHz-65 dBm Min, -70 dBm Typ3.75 " x 1.50 " x 0.50"25 mV/dB Nom, ±50 mV/dB-60 dBm Min, -65 dBm Typ - Measured <-60 dBm
SDLVA-15R4G15R7G-70DB-EN
Preliminary
SDLVAPreliminary15.4 to 15.7 GHz15.4 GHz15.7 GHz-74 dBm Min4.15" x 1.80" x 0.60"15 mV/dB (±10 %) @ 50 Ohm Load-70 to 0 dBm
DLVA-16G18G-60-16
Preliminary
DLVAPreliminary16 to 18 GHz16 GHz18 GHz-40 dBm1.60" x 1.5" x 0.31"16 ±1 mV/dB -40 TO -14dBm-40 TO +20 dBm
ERDLVA-0R5G18G-CW-75MV-93
Preliminary
DLVAPreliminary0.5 TO 18.0 GHz0.5 GHz18.0 GHz-42 dBm (8.5 dBV SNR)2.68" x 2.30" x 0.50"75 ± 10mV MAX per dB-40 dBm TO +20 dBm MIN
ERDLVA-0R5G2G-CW-75MV-93
Active
DLVAActive0.5 to 2.0 GHz0.5 GHz2.0 GHz-42 dBm (8.5 dBV SNR)2.68" x 2.30" x 0.50"75 ± 10 mV Max per dB-40 to +20 dBm
ERDLVA-218-CW-75MV-93
Active
DLVAActive2.0 to 18.0 GHz2.0 GHz18.0 GHz-42 dBm (8.5 dBV SNR)2.68" x 2.30" x 0.50"75 ± 10 mV Max per dB-40 to +20 dBm
SDLVA-50M12G-70
Preliminary
SDLVAPreliminary0.05 to 12.0 GHz0.05 GHz12.0 GHz-70 dBm TYP2.30" x 2.20" x 0.40"25 mV/dB (±5%) @ 50 OHM Load-70 dBm to 0 dBm MIN
SDLVA-160-80
Active
SDLVAActive0.12 to 0.2 GHz0.12 GHz0.2 GHz
-
3.53" x1.50" x 0.46"25 mV/dB ± 3%
-
ERDLVA-1G40G-50-50MV-CW
Preliminary
DLVAPreliminary1.0 GHz to 40 GHz18 GHz40 GHz-48 dBm MAX @ 25° C2.37 x 1.80 x 0.4250 mV/dB into 100 ohms-47 dBm to +3 dBm
SDLVA-250M6G-CD-1-RoHS
Active
SDLVAActive0.25 to 6.0 GHz0.25 GHz6 GHz-73 dB typ. - Measured -73 dBm3.2 " x 1.8 " x 0.4"25 mV/dB typ. (±5%) - Measured 24.8 mV/dB-70dBm to 0dBm
SDLVA-0R5G18G-50R-30DBM-10
Preliminary
SDLVAPreliminary0.5 to 18 GHz0.5 GHz18 GHz-71 dBm Min - Measured -72 dB3.2" x 1.8" x 0.4"10 mV/dB (±10%) @ 50 OHM Load, Measured 24.03 mV/dB-70 dBm to 0 dBm
SDLVA-15R4G15R7G-30dBm
Active
SDLVAActive15.4 GHz to 15.7 GHz15.4 GHz15.7 GHz-74 dBm Min4.15 x 1.80 x 0.6015 mV/dB (±10%) @50 OHM Load-70 dBm to 0 dBm
HADA-D2002-0R518
Preliminary
DLVAPreliminary0.5 to 18 GHz0.5 GHz18 GHz-40 dBm MIN. @ -40°C TO +85°CPer Figure50 mV/dB40 dB
DLVA-2G18G-42-50MV
Preliminary
DLVAPreliminary2.0 to 18.0 GHz2.0 GHz18.0 GHz-42 dBm MinPer Figure50 ±5mV/dB-40 to +2 dBm
ERDLVA-8G18G-65-70MV-TF
Preliminary
DLVAPreliminary8.0 to 18.0 GHz8.0 GHz18.0 GHz-71 dBm2.25" x 2.69" x 0.40"70 mV/dB ± 3 mV/dB-65 to 0 dBm
EWDM-2G8G-65-70MV-TF
Preliminary
DLVAPreliminary2.0 to 8.0 GHz2.0 GHz8.0 GHz-71 dBm2.25" x 2.69" x 0.40"70 mV/dB ± 3 mV/dB-65 to 0 dBm
EWDM-8G18G-65-70MV-TF
Preliminary
DLVAPreliminary8.0 to 18.0 GHz8.0 GHz18.0 GHz-71 dBm2.25" x 2.69" x 0.40"70 mV/dB ± 3 mV/dB-65 to 0 dBm
SDLVA-218-70-70MV-TF
Preliminary
SDLVAPreliminary2.0 to 18.0 GHz2.0 GHz18.0 GHz-71 dBm max.3.248" x 1.844" x 0.400"70 ± 3 mV/dB max.
-
ERDLVA-2G8G-65-70MV-TF
Preliminary
DLVAPreliminary2.0 to 8.0 GHz2.0 GHz8.0 GHz-71 dBm2.25" x 2.69" x 0.40"70 mV/dB ± 3 mV/dB-65 to 0 dBm
GMDA-D1005-08R11R44
Active
DLVAActive0.81 to 1.44 GHz0.81 GHz1.44 GHz-65 dBm Max3.50" x 3.20" x 0.50"
88.9 mm x 81.3 mm x 12.7 mm
+25.0 ± 1.0 mV/dB Typ-60 dBm to +10 dBm
DLVA-2G18G-51-CW
Preliminary
DLVAPreliminary
-
2 GHz18 GHzN/A2.44" (62) X 1.33" (34) X 0.472" (12) MAX (mm)50 mV/dB ± 4.5%-47 to +4 dBm
ERDLVA-2G18G-65-70MV-70C
Active
DLVAActive2.0 to 18.0 GHz2.0 GHz18.0 GHz-71 dBm3.5" x 2.5" x 0.5"70 ± 3 mV/dB-65 to 0 dBm
ERDLVA-2G18G-65-70MV-85C
Active
DLVAActive2.0 to 18.0 GHz2.0 GHz18.0 GHz-71 dBm3.5" x 2.5" x 0.5"70 ± 3 mV/dB @ 25 °C-65 to 0 dBm
654VE4862-2
Active
DLVAActive0.5 to 1.0 GHz0.5 GHz1.0 GHz-45 dBm min.5.125" x 2.500" x 1.000"50 mV/dB nominal-44 to 0 dBm
LVA-60M-70-25MV-SFF
Preliminary
DLVAPreliminary
-
0.05 GHz0.07 GHz-80 dBm2.500" x 1.000" x 0.260"25 mV/dB ±5% Over Temp-70 to 0 dBm
SDLVA-2D5G4D9G-45-55MV-LPF
Active
SDLVAActive2.5 to 4.9 GHz2.5 GHz4.9 GHz-70 dBm Min7.20" x 1.57" x 1.31"55.5 ± 5% mV/dB
-
SDLVA-0120-70 Opt 500M105 10DBM MH-50
Active
SDLVAActive
-
0.5 GHz1.5 GHz-65 dBm (-70 dBm Typical)3.75' x 1.50" x 0.50"25 mV/dB Nominal-60 dBm (-65 dBm Typical) to +5 dBm (+8 dBm Typical)
DLVA-2G6G-AC-1
Active
DLVAActive
-
2.0 GHz6.0 GHz-43 dBm Typical2.85" x 1.80" x 0.56"75 mV/dB Nominal-40 to 0 dBm Typical
SDLVA-160-70
Active
SDLVAActive
-
0.135 GHz0.185 GHz-70 dBm Max3.75" x 1.50" x 0.50"25 mV/dB +/- 5% @ 25°C
-
SDLVA-0120-70-051-OHM50-5V
Active
SDLVAActive0.5 to 1.0 GHz0.5 GHz1.0 GHz-65 dBm min., -70 dBm typ.3.75" x 1.50" x 0.50"25 mV/dB nominal (Adjustable to 30 mV/dB)
-
SDLVA-218-75-16MV-12DBM
Active
SDLVAActive2.0 to 18.0 GHz2.0 GHz18.0 GHz-64 dBm Max4.240" x 0.994" x 0.380"-16.0 ± 2.0 dB mV/dB Nom
-
SDLVA-100M4G-CD-1
Active
SDLVAActive
-
0.1 GHz4.0 GHz73 dB Typ -71 dB Max3.96" X 1.80" X 0.20"25 mV/dB Typ 50 Ohm LOAD-70 to 0 dBm
SDLVA-0120-70 Opt 500M105 10DBM MH
Active
SDLVAActive0.5 to 1.5 GHz0.5 GHz1.5 GHz-65 dBm (-70 dBm typ.)(H) 3.75" x (W) 1.50" x (H) 0.50"25 mV/dB nominal-60 dBm (-65 dBm Typ) to +5 dBm (+8 dBm Typ)
DLVA-Y7Y13R5-50-60MV
Active
DLVAActive
-
-
-
-
-
-
-
SDLVA-0120-70 Option 105F
Active
SDLVAActive
-
1.4 GHz1.6 GHz-65 dBm Minimum (-70 dBm Typical)3.75" x 1.50" x 0.50"25 mV/dB-60 dBm (-65 dBm Typical) to +5 dBm (+8 dBm Typical)
SDLVA-0120-70 OPTIONS A02, A04, A05
Active
SDLVAActive
-
0.7 GHz1.3 GHz-65 dBm (Typical)3.75" x 1.50" x 0.50"25 mV/dB-60 dBm (-65 dBm Typical) to +5dBm (+8 dBm Typical)
SDLVA-0120-70 OPTIONS EADS, 100MV, 09103
Active
SDLVAActive
-
0.95 GHz1.25 GHz-60 dBm Typical3.75" x 1.50" x 0.50"25 mV/dB-55 dBm (-55 dBm to 0 dBm)
SDLVA-0120-70 Options 500M105, 10DBM, MH
Active
SDLVAActive
-
0.5 GHz1.5 GHz-65 dBm3.75" x 1.50" x 0.50"25 mV/dB Nominal
-
SDLVA-0120-70 OPTIONS 500M105, 5DBM, MH
Active
SDLVAActive
-
0.5 GHz1.5 GHz-65 dBm3.75" x 1.50" x 0.50"25 mV/dB Nominal
-
SDLVA-100M6G-CD-2
Active
SDLVAActive100 MHz to 6.0 GHz0.1 GHz6.0 GHz-73 dB Typ, -71 dB Max3.2" x 1.8" x 0.4"25 mV/dB Typ. 50 O Load-70 to 0 dBm
SDLVA-100M-80-SS
Preliminary
SDLVAPreliminary
-
0.09 GHz0.11 GHz-80 dBm typ.3.00" (L) x 2.00" (W) x 0.35" (H)25 mV/dB Typical
-
SDLVA-2020-50 OPTIONS 26, INDRA
Active
SDLVAActive
-
2.4 GHz5.4 GHz-50 dBm Typ.3.5" (L) x 3.0" (W) x 0.5" (H)20 mV/dB (±10% Tolerance)
-
SDLVA-0R71R3-75-CD-2
Active
SDLVAActive0.7 to 1.3 GHz0.7 GHz1.3 GHz-70 dBm typical3.75" x 1.50" x 0.50"40 mV/dB nominal
-
MSDLVA-2020-70 OPTIONS 48, SE
Active
SDLVAActive
-
4.0 GHz8.0 GHz-70 dBm Max, -73 dBm Typ4.60" x 0.98" x 0.24"50 mV/dB-65 dBm to +15 dBm
SDLVA-18G40G-CD-1
Active
SDLVAActive18.0 to 40.0 GHz18.0 GHz40.0 GHz-70 dBm typ., -68 dBm max.3.2" x 1.8" x 0.4"25 mV/dB typ., 50 Ohm Load-70 to +5 dBm
SDLVA-61F-80 OPT: 5829387-002, TBRK
Active
SDLVAActive0.061 to 0.0615 GHz0.061 GHz0.0615 GHz-80 dBm Typ4.125" x 1.250" x 0.624"22.5 mV/dB
-
PLVA-6G18G-40-1
Active
DLVAActive6.0 to 18.0 GHz6.0 GHz18.0 GHz-42 dBm Min2.20" x 1.50" x 0.40"50 mV/dB (±4% of Average Slope)-40 to 0 dBm Min
SDLVA-1G2G-65-SFF
Active
SDLVAActive1.0 to 2.0 GHz1.0 GHz2.0 GHz-65 dBm min.5.125" x 2.500" x 1.000"21 mV/dB nominal-60 to +5 dBm
SDLVA-8G18G-40-5-SFF-CM
Active
SDLVAActive8.0 to 18.0 GHz8.0 GHz18.0 GHz
-
1.20" x 0.85" x 0.40"50 mV/dB ± 6.0 mV/dB max.-40 to 0 dBm
SDLVA-0R61R1-65-CD-SFF-3
Active
SDLVAActive0.6 to 1.1 GHz (0.85 GHz ± 0.25 GHz)0.6 GHz1.1 GHz-68 dBm max.3.2" x 1.8" x 0.4"30 mV/dB typ. ± 1.5 mV/dB max.
100 Ohms Load
-65 to 0 dBm
SDLVA-30M90-80
Active
SDLVAActive
-
0.052 GHz0.068 GHz-84 dBm3.75" x 1.50" x 0.50"<500 ns-84 to -14 dBm
DLVA-45-20MV-48DBM
Active
DLVAActive
-
-
-
-
-
-
-
SDLVA-60-15MV-48DBM
Active
SDLVAActive
-
-
-
-
-
-
-
DLVA-60-15MV-75DBM
Active
DLVAActive
-
-
-
-
-
-
-
SDLVA-25150-75
Active
SDLVAActive0.025 to 0.15 GHz0.025 GHz0.15 GHz
-
3.75" x 1.50" x 0.50"25 mV/dB nominal-80 to 0 dBm typ.
SDLVA-100M18G-DC-70-MAH-OPT0D16
Preliminary
SDLVAPreliminary0.1 to 6.0 GHz0.1 GHz6.0 GHz-68 dBm min., -70 dBm typ.2.30" x 2.20" x 0.36"10 mV/dB into a 50-Ohm Load ± 1 mV max.-65 to +5 dBm min.
SDLVA-100M18G-CW-70-MAH-OPT0D16
Preliminary
SDLVAPreliminary0.1 to 6.0 GHz0.1 GHz6.0 GHz-68 dBm min., -70 dBm typ.2.30" x 2.20" x 0.36"10 mV/dB into a 50-Ohm Load ± 1 mV max.-65 to +5 dBm min.
ERDLVA-0.5G2G-CW-75MV
Preliminary
DLVAPreliminary0.5 to 2.0 GHz0.5 GHz2.0 GHz-42 dBm (8.5 dBV SNR)2.68" x 2.30" x 0.50"75 ± 10 mV max. per dB-40 to +20 dBm
ERDLVA-0.5G18G-CW-75MV
Preliminary
DLVAPreliminary0.5 to 18.0 GHz0.5 GHz18.0 GHz-42 dBm (8.5 dBV SNR)2.68" x 2.30" x 0.50"75 ± 10 mV max. per dB-40 to +20 dBm min.
PLVA-2G6G-40-1
Active
DLVAActive2.0 to 6.0 GHz2.0 GHz6.0 GHz-42 dBm min.
-
50 mV/dB (±4% of Average Slope)-40 to 0 dBm min.
CVR-FXF6-50-CW
Active
DLVAActive
-
-
-
-
-
-
-
SDLVA-18G40G-65-50MV-100
Active
SDLVAActive18.0 to 40.0 GHz18.0 GHz40.0 GHz-65 dBm2.37" x 1.80" x 0.42"50 mV/dB Nom
-
DLVA-6G18G-50-1-SFF-OPT80NS
Preliminary
DLVAPreliminary6.0 to 18.0 GHz6.0 GHz18.0 GHz-68 dBm min.3.20" x 2.05" x 0.40"25 mV/dB (±10%)-65 to 0 dBm
DLVA-0R757-40-50MV
Preliminary
DLVAPreliminary0.75 to 7.0 GHz0.75 GHz7.0 GHz-45 dBm min.2.40" x 2.50" x 0.45"50 mV/dB into 100 Ohm-40 to 0 dBm
DLVA-26-60-30MV
Preliminary
DLVAPreliminary2.0 to 6.0 GHz2.0 GHz6.0 GHz-43 dBm min.4.0" x 2.9" x 0.5"30 mV/dB into 100 Ohm-40 to +20 dBm
SDLVA-218-70-70MV-3
Preliminary
SDLVAPreliminary2.0 to 18.0 GHz2.0 GHz18.0 GHz-71 dBm max.3.5" x 2.5" x 0.5"70 ± 3 mV/dB max.
-
DLVA-0R52-60-30MV
Preliminary
DLVAPreliminary0.5 to 2.0 GHz0.5 GHz2.0 GHz-43 dBm min.4.0" x 2.9" x 0.5"30 mV/dB into 100 Ohm-40 to +20 dBm
DLVA-2G18G-38-50MV
Preliminary
DLVAPreliminary2.0 to 18.0 GHz2 GHz18 GHz-39 dBm max.5.12" x 2.50" x 1.00"50 mV/dB ± 5 mV/dB-38 to 0 dBm min.
DLVA-2G4G-40-50MV
Preliminary
DLVAPreliminary2.0 to 4.0 GHz2 GHz4 GHz-43 dBm max.2.64" x 1.97" x 0.56"50 mV/dB ± 2 mV/dB-40 to 0 dBm min.
DLVA-2G40G-49dB
Preliminary
DLVAPreliminary2.0 to 40.0 GHz2 GHz40 GHz
-
2.0" x 1.50" x 0.40"50 mV/dB typ. 100 Ohms Load-47 dBm to +2 dBm
SDLVA-SP2T-6G18G-65-50MV
Preliminary
SDLVAPreliminary6.0 GHz to 18.0 GHz6 GHz18 GHz-68 dBm MAX3.6" x 2.0" x 0.5"50 ± 3 mV/dB
-
SDLVA-300-800-65-25MV
Preliminary
SDLVAPreliminary0.3 to 0.8 GHz0.3 GHz0.8 GHz-70 dBm max.2.25" x 1.00" x 0.25"25.0 mv/dB +2.5, -0 mV/dB Over Temp.
-
SDLVA-218-64-70MV-CW-100
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-66 dBm3.5" x 2.5" x 0.5"70 mV/dB Nom-60 to +4 dBm
DLVA-60M-70-25MV
Preliminary
DLVAPreliminary0.06 GHz0.06 GHz0.06 GHz
-
2.50" x 1.00" x 0.26"-70 to 0 dBm-70 to 0 dBm
SDLVA-218-60-70MV-CW-100
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-66 dBm3.5" x 2.5" x 0.5"70 mV/dB nominal
-
DLVA-6D5G18G-70-JMAKG1
Preliminary
DLVAPreliminary6.5 to 18.0 GHz6.5 GHz18 GHz-72 dBm min.3.20" x 2.05" x 0.40"25 mV/dB (±10%) @ 50 Ohm Load-70 to 0 dBm
SDLVA-2020-70 OPT.0518-A03-A07-50OHM
Active
SDLVAActive0.5 to 18.0 GHz0.5 GHz18 GHz-65 dBm Min (8 to 18 GHz)3.00" x 3.5" x 0.5"20 mV/dB (±10% Tolerance)-65 dBm to +5 dBm
GMDA-S4080-60
Active
SDLVAActive4.0 to 8.0 GHz4 GHz8 GHz-60 dBm Min1.80" x 1.00" x 0.28"25 ± 1 mV/dB Nom-55 to +5 dBm
DLVA-12G20G-40
Preliminary
DLVAPreliminary12.0 to 20.0 GHz12 GHz20 GHz-42dBm min2.75 X 1.5 X 0.5 inches100mV/dB40dB
DLVA-6G18G-50-1-SFF
Preliminary
DLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-73dBm min3.2 " x 2.05 " x 0.4"25mV/dB (±10%) @ 50Ohm Load-70dBm to 0dBm
DLVA-6G18G-50-OPT50MV
Preliminary
DLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-72 dB min.3.2 " x 2.05 " x 0.4"50 mV/dB (±10%)-70 to 0 dBm
DVA-9G11G-25
Preliminary
DLVAPreliminary9.0 to 11.0 GHz9 GHz11 GHz
-
2.57" X 2.00" X 1.13"
-
-
ERDLVA-2G18G-70-50MV
Preliminary
DLVAPreliminary2.0 to 18.0 GHz2 GHz18 GHz-70 dBm typ. -65 dBm min.2.90 X 2.95 X 0.50 (excluding connectors)50.0 mV/dB typ.75 dB typ. , 70 db min. (-65 dBm to +5 dBm)
HADA-D1009
Preliminary
DLVAPreliminary3.0 to 3.4 GHz3 GHz3.4 GHz-73 dBm Max3.0" x 4.0" x 0.5"+50 ± 3 mV/dB-70 to +3 dBm
MDA-1146
Preliminary
DLVAPreliminary2.0 to 18.0 GHz2 GHz18 GHz-55 dBm max.3.5" x 3.2" x 0.5"+25±1 mv/dB at Room Temperature, +25±2 mv/dB over Room Temperature, +25 mv/dB typ.-50 to +10 dBm
P6VA-2VO-1VG-20M
Preliminary
SDLVAPreliminary0.02 GHz0.02 GHz0.02 GHz
-
5.25" x 3.5" x 0.5"
-
-
SDLVA-0120-70-0208
Preliminary
SDLVAPreliminary0.2 to 0.8 GHz0.2 GHz0.8 GHz-80 dBm typ.3.75" x 1.50" x 0.50"25 mV/dB Nominal-75 dBm
SDLVA-218-68-70MV
Preliminary
SDLVAPreliminary2.0 to 18.0 GHz2 GHz18 GHz-70 dBmSize70 ± 3 mV/dB
-
SDLVA-218-71-70MV-1-OPT1G18G
Preliminary
SDLVAPreliminary1.0 GHz to 18.0 GHz1 GHz18 GHz-42 dBm max2.20" x 1.50" x 0.40"70±3 mV/dB max
-
SDLVA-650M850M-60-25MV
Preliminary
SDLVAPreliminary0.07 to 40 GHz0.07 GHz40 GHz-68 dBm max. @ -54 ºC to +95 ºC2.5" x 1.0" x 0.276"
-
-
SDLVA-65M75M-80-CD-1
Preliminary
SDLVAPreliminary0.065 to 0.075 GHz0.065 GHz0.075 GHz
-
2.5" x 1.0" x 0.4"25mV/dB nominal
-
DLVA-100M210M-70DB-50R
Preliminary
DLVAPreliminary0.10 to 0.21 GHz0.1 GHz0.21 GHz-77 dBm Typ, -74 dBm Max1.72" x 1.11" x 0.26"
-
-70 to 0 dBm
DLVA-8G10G-49-50-SFF
Preliminary
DLVAPreliminary8.0 to 10.0 GHz8 GHz10 GHz-57 dBm1.0" x 1.5" x 0.3"50 ±4 mV/dB-54 dBm to 55 dBm
DLVA-8G10G-80-50-SFF
Preliminary
DLVAPreliminary8.0 to 10.0 GHz8 GHz10 GHz-80 dBm2.0" x 1.5" x 0.4"50 ±4 mV/dB-75 dBm to 0 dBm
DLVA-9G18G-35-50MV-CW
Preliminary
DLVAPreliminary9.0 to 18.0 GHz9 GHz18 GHz-40 dBm typ.3.5" x 2.5" x 0.5"50 mV/dB nominal-33 dBm to 0 dBm
ERDLVA-17G35G-68-50MV
Preliminary
DLVAPreliminary17.0 to 35.0 GHz17 GHz35 GHz-68 to -72 dBm Min2.75" x 2.00" x 0.50"50 mV Nom-65 to +3 dBm
ERDLVA-18G40G-65-50MV
Preliminary
DLVAPreliminary18.0 to 40.0 GHz18 GHz40 GHz-65 dBm typ.1.6" x 1.5" x 0.31"50 ±4 mV/dB-63 to +2 dBm
ERDLVA-1G18G-68-50MV
Preliminary
DLVAPreliminary1.0 to 18.0 GHz1 GHz18 GHz-68 to -72dBm min2.75" x 2.00" x 0.50"50mV nom-65 to +3dBm
GMDA-D0206-45
Preliminary
DLVAPreliminary2.0 to 6.0 GHz2 GHz6 GHz-43dBm2.50" x 1.50" x 0.44"50mV/ dB nominal-40 to +5dBm
GMDA-S0206-70
Preliminary
SDLVAPreliminary2.0 to 6.0 GHz2 GHz6 GHz-75dBm3.80" x 2.00 x 0.40"25 mV/dB-70dBm to +0dBm
GMDA-S0408-70
Preliminary
SDLVAPreliminary4.0 to 8.0 GHz4 GHz8 GHz-73 dBm3.8" x 2.0" x 0.4"25 mV/dB-70 to 0 dBm
GMDA-S0502-70
Preliminary
SDLVAPreliminary0.5 to 2.0 GHz0.5 GHz2 GHz-75dBm3.8" x 2.0" x 0.4"25mV/dB-70 to 0dBm
GMDA-S0818-70
Preliminary
SDLVAPreliminary8.0 to 18.0 GHz8 GHz18 GHz-73 dBm3.8" x 2.0" x 0.4"25 mV/dB-70 to 0 dBm
GMDA-SD504-70
Preliminary
SDLVAPreliminary0.5 to 4.0 GHz0.5 GHz4 GHz-73 dBm3.8" x 2.0" x 0.4"25 mV/dB
-
IFDLVA-400M1G-45dB-SL
Preliminary
SDLVAPreliminary0.4 to 1 GHz0.4 GHz1 GHz-50 dBm max.1.75" x 1.25" x 0.40"45 mV/dB, ±5%
-
PLVA-218-50-518
Preliminary
DLVAPreliminary5.0 to 18.0 GHz5 GHz18 GHz-40 dBm min.2.2" x 1.5" x 0.4"50 mV/ dB min.-40 dBm to 0 dBm
SDLVA-0120-70-0205
Active
SDLVAActive
-
0.2 GHz0.5 GHz-60 dBm Minimum3.75 " x 1.50 " x 0.40"20 mV/dB Nominal-60 dBm (-65 dBm TYP)
SDLVA-0120-70-051
Active
SDLVAActive0.5 to 1.0 GHz0.5 GHz1 GHz-65 dBm min., -70 dBm typ.3.75" x 1.50" x 0.50"25 mV/dB nominal (Adjustable to 30 mV/dB)
-
SDLVA-0120-70-07103
Active
SDLVAActive
-
0.7 GHz1.3 GHz-67 dBm3.75" x 1.50" x 0.50"25 mV/dB Nominal (Adjustable to 30 mV/dB)-60 dBm (-65 dBm Typical)
SDLVA-0R81R6-75-CD-3
Preliminary
SDLVAPreliminary0.85 to 1.5 GHz0.85 GHz1.5 GHz-70 dBm typ.3.75" x 1.50" x 0.50"40 mV/dB nominal-70dBm to +5dBm
SDLVA-0R91R3-70-CD-1
Preliminary
SDLVAPreliminary0.9 to 1.3 GHz0.9 GHz1.3 GHz-82 dBm typ.3.75" x 1.50" x 0.50"50 mV/dB nominal
-
SDLVA-0R91R3-70-CD-RF
Preliminary
SDLVAPreliminary0.9 to 1.3 GHz0.9 GHz1.3 GHz-82 dBm typ.3.75" x 1.50" x 0.50"50 mV/dB nominal
-
SDLVA-110M240M-65-CD
Preliminary
SDLVAPreliminary0.110 to 0.240 GHz0.11 GHz0.24 GHz-73 dBm min.3.75" x 1.50" x 0.50"50 mV/dB (±2.0 mV/dB) 100 Ohms Load-65 to 0 dBm
SDLVA-1G40G-49dB
Preliminary
SDLVAPreliminary1.0 to 40.0 GHz1 GHz40 GHz-52 dBm2.0" x 1.5" x 0.4"50 mV/dB
-
SDLVA-250M6G-CD-1-OPT26
Preliminary
SDLVAPreliminary2.0 to 6.0 GHz2 GHz6 GHz-73 dBm typ.3.2" x 1.8" x 0.4"25 mV/dB typ.-67 to +3 dBm
SDLVA-2G18D3G-65-16MV-12DBM
Preliminary
SDLVAPreliminary2.0 GHz to 18.3 GHz2 GHz18.3 GHz-64 dBm max4.25" x 0.994" x 0.38"-16 mV/dB ±2 mV/dB-55 dBm to +10 dBm
SDLVA-2G6G-70-50MV
Preliminary
SDLVAPreliminary2.0 to 6.0 GHz2 GHz6 GHz-70 dBm or better, variation less than ±3 dB over frequency3.2" x 1.8" x 0.4"50 mV/±2mV/dB (3.25 V ±130 mV over the input range)-65 to +5 dBm
SDLVA-2G6G-70dB-100R
Preliminary
SDLVAPreliminary2.0 to 6.0 GHz2 GHz6 GHz-73 dB typ., -71 dB max.3.2" x 1.8" x 0.4"25 mV/ dB typ. 100 Ohm Load-70 to 0 dBm
SDLVA-4G8G-70dB-100R
Active
SDLVAActive4.0 GHz to 8.0 GHz4 GHz8 GHz-73 dB typ., -71 dB max. - Measured -73 dBm3.2" x 1.8" x 0.425 mV/ dB typ. 100 Ohm Load-Measured 25.2 mV/dB-70 to 0 dBm
SDLVA-500M4G-CD-100HM
Preliminary
SDLVAPreliminary0.5 to 4.0 GHz0.5 GHz4 GHz-73 dB typ., -71dB max.3.2" x 1.8" x 0.4"25 mV/dB typ. 100 ? Load-70 to 0 dBm
SDLVA-50M18G-50R-30DBM
Preliminary
SDLVAPreliminary0.05 to 18.0 GHz0.05 GHz18 GHz-71 dB Min.3.2" x 1.8" x 0.4"25 mV/dB (±10%) @ 50 OHM Load-70 dBm to 0 dBm
SDLVA-54M66M-70dB-DUAL
Preliminary
SDLVAPreliminary0.054 to 0.066 GHz0.054 GHz0.066 GHz
-
3.35" x 4.88" x 0.60"
-
-
SDLVA-618-65-50MV-10DBM
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-70dBm or better varition in TSS <±3dB over frequency video bandwidth 20MHz5.60" x 1.14" x 0.37"50mV/dB ±mV/dB at any frequency and temperature over the input range (3.25V ±130mV over input range)
-
SDLVA-6G18G-70
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-70 dBm typ.2.30" x 2.20" x 0.40"25 mV/dB (±5%) @ 50 O Load-70 dBm to 0dBm min.
SDLVA-6G18G-70-50MV
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-70 dBm or better, variation less than ±3 dB over frequency3.2" x 1.8" x 0.4"50 mV/±2mV/dB (3.25 V ±130 mV over the input range)-65 to +5 dBm
SDLVA-6G18G-70dB-100R
Preliminary
SDLVAPreliminary6.0 GHz to 18.0 GHz6 GHz18 GHz-73 dB typ., -71 dB max.3.2" x 1.8" x 0.425 mV/ dB typ. 100 Ohm Load-70 to 0 dBm
SDLVA-6G18G-CD-1-OPT93-PTB
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-70dB min.4.92" x 4.92" x 2.26"25 mV/dB (±10%) 93 Ohms, 48 mV/dB (±10%) No Load-70 to +5 dBm
SDLVA-6G18G-OP2
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-71 dB min.3.2" x 1.8" x 0.4"25 mV/dB nom., 93 ohm load-68 to +2 dBm
SDLVA-70M40G-1
Preliminary
SDLVAPreliminary0.07 to 40 GHz0.07 GHz40 GHz-58 dBm @ 25°C3.2" x 1.8" x 0.4"25 mV/dB (±10%) 50? Load, 50 mV/dB (±10%) No Load-55 to +0 dBm
SDLVA-70M40G-60-25
Preliminary
SDLVAPreliminary0.07 to 40 GHz0.07 GHz40 GHz-60 dBm @ 25°C2.37" x 1.80" x 0.42"25 mV/dB nominal-55 dBm to +5 dBm
DLVA-500M18G-70
Active
DLVAActive0.5 to 18.0 GHz0.5 GHz18 GHz
-
2.20" x 1.50" x 0.40"70 mV/dB - Measured 66 mV/dB-40 dBm to +5 dBm
ERDLVA-1840-60-50MV
Preliminary
DLVAPreliminary18.0 to 40.0 GHz18 GHz40 GHz-68 dBm Min2.37" x 2.32" x 0.42"50 mV Nom-60 to 0 dBm Min
ERDLVA-1G18G-70-50MV-CW
Preliminary
DLVAPreliminary1.2 to 18.0 GHz1.2 GHz18 GHz-72dBm min2.95" x 2.90" x 0.50"50mV/dB ±5% over -60 to 0dBm-65 to 5 dBm min
ERDLVA-1G40G-50-50
Preliminary
DLVAPreliminary1.0 to 40.0 GHz1 GHz40 GHz-52 dBm @ 25°C2.37" x 1.80" x 0.42"50 mV/dB typ.-47 dBm to +2 dBm
ERDLVA-218-70-50MV
Preliminary
DLVAPreliminary2.0 to 18.0 GHz2 GHz18 GHz-70 dBm3.5" x 2.5" x 0.5", 88.9 mm x 63.5 mm x 12.7 mm50 mV/dB nominal- 65 dBm to 5 dBm
ERDLVA-218-CW-LPD
Active
DLVAActive2.0 to 18.0 GHz2 GHz18 GHz-64 dBm Min.2.040" x 1.670" x 0.472"77 mV/dB (±5 mV) - Measured 74.19mV/dB @ 10 GHz-60 to +4 dBm
GMDA-CW0518-30
Preliminary
DLVAPreliminary0.5 to 18.0 GHz0.5 GHz18 GHz-43 dBm Min2.3" x 2.3" x 0.47"280 mV/dB with ±12 mV/dB tolerance @ Input Power
-40 to -10 dBm, Transition from 280 mV/dB tolerance
@ Input Power -10 to 0 dBm, 0 mV/dB with ±12 mV/dB
tolerance @ Input Power 0 to +20 dBm
63 dB (-43 to +20 dBm)
GMDA-S0618-70
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6.0 GHz18.0 GHz-70 dBm3.8" x 2.0" x 0.4"25 mV/dB nominal
-
PLVA-218-50-9G10G
Active
DLVAActive9.0 to 10.0 GHz9 GHz10 GHz-42dBm min.2.20" x 1.50" x 0.40"50mV/dB-40dBm to +0dBm (Useful Range up to +5dBm)
SDLVA-140M180M-65-CD
Preliminary
SDLVAPreliminary0.140 to 0.180 GHz0.14 GHz0.18 GHz-73 dBm min.3.75" x 1.50" x 0.50"50 mV/dB (±2.0 mV/dB) 100 Ohms Load
-
SDLVA-218-60-70MV-CW
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-66 dBm for 10 MHz Video Bandwidth - Measured -66 dBm3.5" x 2.5" x 0.5"70 mV/dB nominal - Measured 70 mV/dB
-
SDLVA-218-71-70MV-1
Active
SDLVAActive2.0 GHz to 18.0 GHz2 GHz18 GHz-72dBm for 10MHz Video Bandwidth3.5" x 2.5" x 0.5"70mV/dB nominal
-
SDLVA-26R5G40G-65-CD-1
Active
SDLVAActive26.5 to 40.0 GHz26.5 GHz40 GHz-65 dBm @ 25 ºC - Measured -67 dBm2.37" x 1.8" x 0.42"25 mV/dB nominal-63 dBm to +2 dBm
SDLVA-6G18G-CD-2-OPT1G12G
Preliminary
SDLVAPreliminary1.0 to 12.0 GHz1 GHz12 GHz-70 dB min3.2" x 1.8" x 0.4"25 mV/dB (±10%) 50 Ohms-70 to +5 dBm
SDLVA-6G18G-CD-2-OPT1G18G
Preliminary
SDLVAPreliminary1.0 to 18.0 GHz1 GHz18 GHz-70 dB min3.2" x 1.8" x 0.4"25 mV/dB (±10%) 50 Ohms-70 to +5 dBm
ERDLVA-6G18G-70-50MV
Preliminary
DLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-70 dBm @ 85 ºC1.90" x 1.50" x 0.31", 60 mm x 38 mm x 7.9 mm50 mV/dB ±4.0 mV/dB-65 dBm to + 5 dBm
GMDA-D1006
Active
DLVAActive2.0 to 6.0 GHz2 GHz6 GHz-65 dB Min3.5" x 3.2" x 0.5"+25 ±1 mV/dB @ Room Temperature,
+25 ±1.5 mV/dB Over Temperature,
+25 mV/dB Typ
-60 to +10 dBm
GMDA-S0618-50
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6.0 GHz18.0 GHz-65 dBm3.8" x 2.0" x 0.4"25 mV/dB nominal
-
PLVA-218-50
Active
DLVAActive2.0 to 18.0 GHz2 GHz18 GHz-42 dBm min.2.20" x 1.50" x 0.40"50 mV/dB - Measured 50.4 mV/dB-40 dBm to +0 dBm min. - Measured -40 to 0 dBm
SDLVA-0060-80
Active
SDLVAActive0.055 to 0.065 GHz0.055 GHz0.065 GHz
-
3.75" x 1.50" x 0.50"25 mV/dB Nom-80 to 0 dBm Typ
SDLVA-0120-70-100M2G-10DBM-OPT300M1G
Preliminary
SDLVAPreliminary0.3 to 1.0 GHz0.3 GHz1 GHz-65 dBm, -70 dBm typ.3.75 " x 1.50 " x 0.40"25 mV/dB nominal @ 1.0 GHz-65 dBm
SDLVA-0R61R1-65-CD-SFF-1
Active
SDLVAActive0.6 to 1.1 GHz0.6 GHz1.1 GHz-68dBm max3.2" x 1.8" x 0.4"30mV/dB typ 100 ohm load-65 to 0dBm
SDLVA-0R61R1-65-CD-SFF-2
Active
SDLVAActive0.6 to 1.1 GHz0.6 GHz1.1 GHz-68dBm max3.2" x 1.8" x 0.4"30mV/dB typ ±1.5mV/dB max, 100 Ohm Load-65 to 0dBm
SDLVA-0R71R3-75-CD-3
Active
SDLVAActive0.7 to 1.3 GHz0.7 GHz1.3 GHz-70 dBm typ.3.75" x 1.50" x 0.50"40 mV/dB nominal-70dBm
SDLVA-100M700M-70
Active
SDLVAActive0.100 to 0.700 GHz0.1 GHz0.7 GHz-60 dBm Typ3.75 " x 1.50 " x 0.50"25 ± 5 mV/dB
-
SDLVA-2020-70-0518-1MOHM
Active
SDLVAActive0.5 to 18 GHz0.5 GHz18 GHz-65 dBm Minimum (8 to 18 GHz)3.00" x 3.5" x 0.5"20 mV/dB (±10% Tolerance)-65 dBm to +5 dBm
SDLVA-2020-70-102
Preliminary
SDLVAPreliminary1.0 to 2.0 GHz1 GHz2 GHz-65 dBm min3.50" x 3.00" x 0.50"10 mV/dB (±10% tolerance)-65 dBm to +10 dBm
SDLVA-2020-70-118
Active
SDLVAActive
-
1 GHz18 GHz-64 dBm Minimum3.00" x 3.50" x 0.50"20 mV/dB (±10% Tolerance)-60 dBm to 0 dBm
SDLVA-2020-70-204
Preliminary
SDLVAPreliminary2.0 to 4.0 GHz2 GHz4 GHz-65 dBm min3.50" x 3.00" x 0.50"10 mV/dB (±10% tolerance)-65 dBm to +10 dBm
SDLVA-2020-70-OPT0518-A03
Preliminary
SDLVAPreliminary0.5 to 18 GHz0.5 GHz18 GHz-65 dBm Minimum (8 to 18 GHz)3.00" x 3.50" x 0.50"20 mV/dB (±10% Tolerance)-65 dBm to +5 dBm
SDLVA-2020-70-OPT618
Preliminary
SDLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-68dB min3.0" x 3.5" x 0.5"20mV/dB (±10% Tolerance)-70dBm to +10dBm
SDLVA-2020-OPT112-10M
Preliminary
SDLVAPreliminary1.0 to 12.0 GHz1 GHz12 GHz-65 dBm max3.5" x 3.0" x 0.5"5 LSB/dB nominal-65 dBm to -35 dBm
SDLVA-212-65-16MV-12DBM
Active
SDLVAActive2.0 to 12.5 GHz2 GHz12.5 GHz-64 dBm Max4.24" x 0.994" x 0.38"16.7 ± 1.3 mV/dB-55 dBm to +10 dBm
SDLVA-315362-1
Active
SDLVAActive0.315 to 0.362 GHz0.315 GHz0.362 GHz-73 dBm Min3.63" x 1.5" x 0.468"50 mV/dB (±1.5 mV/dB) 100 Ohms Load-65 to 0 dBm (0.25 V @ -65 dBm and 3.5 V @ 0 dBm)
SDLVA-3G18G-CW-70-MAH
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-68 dBm Min, -70 dBm Typ - Measured -68 dBm2.30" x 2.20" x 0.36"10 mV/dB into a 50 ohm Load (±1 mV) Max - Measured 10.0 mV/dB-65 to +5 dBm Min - Measured -65 to +5 dBm
SDLVA-500M4G-CD-2
Active
SDLVAActive0.5 to 4.0 GHz0.5 GHz4 GHz-73 dB Typ, -71 dB Max - ,br>Measured -73.5 dBm @ -40ºC,
-73.5 dBm @ +25 ºC,
-73.2 dBm @ +75ºC
3.2 " x 1.8 " x 0.4"25 mV/dB Typ 50 Ohm Load - Measured 26.0, 24.4, 23.4 mV/dB
-
SDLVA-8G18G-70dB-100R
Active
SDLVAActive8.0 GHz to 18.0 GHz8 GHz18 GHz-73 dB typ., -71 dB max.3.2" x 1.8" x 0.425 mV/ dB typ. 100 Ohm Load - Measured 25.1 mV/dB-70 to 0 dBm
DLVA-0R4G1G-55-AC-SFF
Preliminary
DLVAPreliminary0.4 GHz to 1.0 GHz0.4 GHz1 GHz-60 dBm Max2.50" X 1.50" X 0.20"45 mV/dB ± 5%-55 dBm to 0 dBm
ERDLVA-2G6G-70-50MV
Active
DLVAActive2.0 to 6.0 GHz2 GHz6 GHz-70 dBm @ 85 ºC1.90" x 1.50" x 0.31"
60 mm x 38 mm x 7.9 mm
50 ± 4.0 mV/dB-65 dBm to +5 dBm
SDLVA-0120-70
Active
SDLVAActive0.2 to 2.0 GHz0.2 GHz2 GHz-65 dBm Min, -70 dBm Typ3.75 " x 1.50 " x 0.40"25 mV/dB Nom (Adjustable to 30 mV/dB)
-
SDLVA-0R5G4G-70dB-100R
Active
SDLVAActive0.5 to 4.0 GHz0.5 GHz4 GHz-73 dB Typ, -71 dB Max - Measured -73 dBm3.2" x 1.8" x 0.425 mV/ dB Typ 100 Ohm Load-70 to 0 dBm
SDLVA-100M18G-CW-70-MAH-OPT500M-NORF
Active
SDLVAActive0.5 to 18.0 GHz0.5 GHz18 GHz-68 dBm Min, -70 dBm Typ - Measured -68 dBm2.3" x 2.2" x 0.36"10 mV/dB into a 50 Ohm load ± mV
- Measured 10.1 mV/dB
-65 to +5 dBm Min
SDLVA-18G40G-65-CD-292FF-OPT93OHM
Active
SDLVAActive18.0 to 40.0 GHz18 GHz40 GHz-65 dBm @ 25 ºC2.37" x 1.8" x 0.42"25 mV/dB Nom-63 dBm to +2 dBm
SDLVA-2020-70 Opt 218
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-68dB min3.0" x 3.5" x 0.5"20mV/dB (±10% Tolerance)-70dBm to +10dBm
DLVA-7M-80-SFF
Active
SDLVAActive0.0055 to 0.0085 GHz0.0055 GHz0.0085 GHz-80 dBm2.2" x 1.5" x 0.55"25 mV/dB Nom
-
ERDLVA-218-CW-LPD-100
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-64 dBm Min - Measured -66 dBm2.040" x 1.670" x 0.472"77 mV/dB (±5 mV) into a 100 Ohm Load -
Measured 75.8 mV/dB
-60 to +4 dBm Min
ERDLVA-218-DC-LPD
Active
DLVAActive2.0 to 18.0 GHz2 GHz18 GHz-64 dBm Max2.040" x 1.670" x 0.472"+85 mV/dB - Measured +85.6 mV/dB-60 to +4 dBm - Meausred -60 to +5 dBm
GMDA-2G6G-50MV
Active
DLVAActive2.0 to 6.0 GHz2 GHz6 GHz-65 dB Min3.5" x 3.2" x 0.5"+50 ±2 mV/dB @ Room Temperature,
+50 ±3 mV/dB Over Temperature,
+50 mV/dB Typ - Measured 51.0 mV/dB
-60 to +10 dBm
GMDA-D5459-70
Active
DLVAActive5.4 to 5.9 GHz5.4 GHz5.9 GHz
-
7.38" x 3.88" x 1.25"25 mV/dB Typ - Measured 25.2 mV/dB-56 dBm to +14 dBm
SDLVA-0R71R3-75-MEC
Active
SDLVAActive0.7 to 1.3 GHz0.7 GHz1.3 GHz-70 dBm Typ3.75" x 1.50" x 0.50"40 mV/dB Nom-70 dBm
SDLVA-2020-70-220
Active
SDLVAActive
-
2.0 GHz20.0 GHz-64 dBm min.3.00 " x 3.50 " x 0.50"20 mV/dB (±10% Tolerance)-70 to +10 dBm
SDLVA-218-44-70MV
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-42 dBm Max2.2" x 1.5" x 0.4"+70 ± 3 mv/dB Max-40 to +4 dBm
SDLVA-218-71-70MV
Active
DLVAActive2.0 GHz to 18.0 GHz2 GHz18 GHz-72dBm3.5 " x 2.5 " x 0.5"70mV/dB-66 to +5 dBm
SDLVA-315M362M-65-CD-1
Active
SDLVAActive0.315 to 0.362 GHz0.315 GHz0.362 GHz-73 dBm Min (Video In) - Measured -80 dBm3.75" x 1.5" x 0.5"50 mV/dB (±1.5 mV/dB) 100 Ohm Load-65 to 0 dBm (0.25 V @ -65 dBm and 3.5 V @ 0 dBm)
SDLVA-32D5G33D5G-65-CD-292FF
Preliminary
SDLVAPreliminary32.5 to 33.5 GHz32.5 GHz33.5 GHz-65 dBm @ 25 ºC2.37" x 1.8" x 0.42"25 mV/dB Nom-63 dBm to +2 dBm
SDLVA-6G18G-CD-1
Active
SDLVAActive6.0 to 18.0 GHz6 GHz18 GHz-70 dB Min3.2 " x 1.8 " x 0.4"25 mV/dB Nom (50 Ohm Load),
48 mV/dB Nom (No Load)
-70 dBm to +5 dBm
ERDLVA-18G40G-65-50-1
Preliminary
DLVAPreliminary18.0 to 40.0 GHz18 GHz40 GHz-68 dBm @ 85 ºC1.60" x 1.50" x 0.31" 41 mm x 38 mm x 7.9 mm50 mV/dB ±4.0 mV/dB-65 dBm to + 0 dBm
PLVA-500M18G-50
Active
DLVAActive0.5 to 18.0 GHz0.5 GHz18 GHz-42 dBm Min2.20" x 1.50" x 0.40"50 mV/dB - Measured 50.1 mV/dB-40 dBm to +0 dBm (Useful Range up to +5 dBm)
SDLVA-2020-70-818
Active
SDLVAActive
-
8 GHz18 GHz-65 dBm Min - Measured -68 dBm3.50" x 3.00" x 0.50"10 mV/dB (±10% tolerance) - Measured 9.38 mV/dB-65 dBm to +10 dBm
SDLVA-250M6G-CD-1
Active
SDLVAActive0.25 to 6.0 GHz0.25 GHz6 GHz-73 dB typ. - Measured -73 dBm3.2 " x 1.8 " x 0.4"25 mV/dB typ. (±5%) - Measured 24.8 mV/dB-70dBm to 0dBm
SDLVA-2D5G4D9G-60-50MV
Active
SDLVAActive2.5 to 4.9 GHz2.5 GHz4.9 GHz-70 dBm min.1.0" x 2.3" x 0.4"50.5 ± 5% mV/dB - Measured 49.8 - 51.5 mV/dB
-
SDLVA-6G18G-CD-2
Active
SDLVAActive6.0 to 18.0 GHz6 GHz18 GHz-70 dB Min - Measured -74 dB3.2" x 1.8" x 0.4"25 mV/dB (±10%) 50 Ohms - Measured 24.4 mV/dB,
48 mV/dB (±10%) No Load - Measured 47.8 mV/dB
-70 to +5 dBm
SDLVA-6G18G-CD-2-OPT218-NRF
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-70 dBm Min - Measured -74 dBm3.2" x 1.8" x 0.4"25 mV/dB (±10%) 50 Ohms-Measured 25.0 mV/dB-70 to +5 dBm
DLVA-50M18D5G-40-LIN-LOG-CD-1
Active
SDLVAActive0.05 to 18.5 GHz0.05 GHz18.5 GHz-40 dBm - Measured -41 dBm, -44 dBm4.0" x 3.0" x 1.0"
-
-
SDLVA-0R71R3-75-CD-1
Active
SDLVAActive0.7 to 1.3 GHz0.7 GHz1.3 GHz-70 dBm Typ3.75" x 1.50" x 0.50"40 mV/dB Nom-70 dBm
SDLVA-100M3G-70-MAH
Active
SDLVAActive0.1 to 3.0 GHz0.1 GHz3 GHz-68 dBm Min, -70 dBm Typ2.30" x 2.20" x 0.36"10mV/dB into a 50 ohm Load (±1mV) Max-65 to +5 dBm Min
SDLVA-2020-70-108
Active
SDLVAActive1.0 to 8.0 GHz1 GHz8 GHz-65 dBm Min - Measured -66 dBm3.50" x 3.00" x 0.50"10 mV/dB (±10% tolerance) - Measured 9.49 mV/dB-65 dBm to +10 dBm
SDLVA-2D5G4D9G-45-55MV
Active
SDLVAActive2.5 to 4.9 GHz2.5 GHz4.9 GHz-70 dBm Min (J3)7.2" x 1.57" x 1.31"55.5 ±5% mV/dB - Measured 54.9 to 55.4 mV/dB
-
SDLVA-418-65-16MV-12DBM
Active
SDLVAActive4.0 to 18.0 GHz4 GHz18 GHz-64 dBm Max4.24" x 0.994" x 0.38"16.7 ± 1.3 mV/dB-55 to +10 dBm
SDLVA-50M18G-70
Active
SDLVAActive0.05 to 18.0 GHz0.05 GHz18 GHz-70 dBm Typ - Measured -72 dBm2.30" x 2.20" x 0.40"25 mV/dB (±5%) @ 50 O Load - Measured 25.43 mV/dB-70 dBm to 0 dBm Min
SDLVA-6G18G-CD-1-OPT93
Active
SDLVAActive6.0 to 18.0 GHz6 GHz18 GHz-70 dB Min - Measured -75 dB3.2 " x 1.8 " x 0.4"25 mV/dB (±10%) 93 Ohms -
Measured 24.6 mV/dB, 48 mV/dB (±10%) No Load
-70 to +5 dBm
DLVA-2G4G-45-70-CD-1
Active
DLVAActive2.0 to 4.0 GHz2 GHz4 GHz
-
3.035" x 0.91" x 0.35"70 ± 5 mV/dB-30 to +15 dBm
DLVA-70M-80-12V
Active
SDLVAActive0.05 to 0.09 GHz0.05 GHz0.09 GHz-80 dBm3.51" x 1.50" x 0.47"25 mV/dB Nom-80 to 0 dBm
GMDA-D1005
Active
DLVAActive0.46 to 1.1 GHz0.46 GHz1.1 GHz-65 dBm Max3.5" x 3.2" x 0.5"+25 ± 1 mv/dB Typ-60 dBm to +10 dBm
SDLVA-100M18G-CW-70-MAH
Active
SDLVAActive0.1 to 18.0 GHz0.1 GHz18 GHz-68 dBm Min, -70 dBm Typ -
Measured -68 dB
2.30" x 2.20" x 0.36"10 mV/dB into a 50 O Load ±1 mV Max - Measured 10 mV/dB-65 to +5 dBm Min
SDLVA-100M4G-CD-2
Active
SDLVAActive0.1 to 4.0 GHz0.1 GHz4 GHz-73 dB Typ,
-71 dB Max - Measured -73.2 dBm
3.2" x 1.8" x 0.4"25 mV/dB Typ 50 ohm load - Measured 24.8 mV/dB Typ-70 to 0 dBm - Measured -71 to 0 dBm
SDLVA-218-70-70MV-2
Preliminary
SDLVAPreliminary2.0 to 18.0 GHz2 GHz18 GHz-71 dBm max.(L) 3.5 in x (W) 2.5 in (H) 0.5 in70 ± 3 mV/dB max.
-
SDLVA-2G6G-70-CD-1 *
Active
SDLVAActive2.0 to 6.0 GHz2 GHz6 GHz
-
3.75" x 1.50" x 0.50"40 mV/dB Nom-70 dBm
SDLVA-500M4G-CD-1 *
Active
SDLVAActive0.5 to 4.0 GHz0.5 GHz4 GHz-73 dB Typ., -71 dB Max - Measured -73 dBm3.2" x 1.8" x 0.425 mV/dB Typ 50 Ohm Load - Measured 24.7 mV/dB-70 to 0 dBm - Measured -70 to 0 dBm
SDLVA-8G18G-40-5-SFF
Active
SDLVAActive8.0 to 18.0 GHz8 GHz18 GHz-34 dBm Typ1.20" x 0.85" x 0.40"50 ± 6 mV/dB-40 to 0 dBm
DLVA-218-45-100MV-CW
Active
DLVAActive2.0 to 18.0 GHz2 GHz18 GHz-45 dBm Typ3.5" x 2.5" x 0.5", 88.9 mm x 63.5 mm x 12.7 mm100 mV/dB Nominal - Measured 99.2 mV/dB-40 dBm to + 5 dBm
DLVA-70M-80-15V
Active
SDLVAActive0.05 to 0.09 GHz0.05 GHz0.09 GHz-80 dBm3.51" x 1.50" x 0.47"
-
-80 to 0 dBm
EWDM-2G6G-65-70MV-2
Preliminary
DLVAPreliminary2.0 to 6.0 GHz2 GHz6 GHz-71 dBm min.4.2" x 2.9" x 0.8"70 ± 3 mV/dB+65 to 0 dBm
SDLVA-0120-70-0225
Active
SDLVAActive
-
0.2 GHz2.5 GHz-65 dBm Typ3.75 " x 1.50 " x 0.40"20 mV/dB Nom-60 dBm, -65 dBm Typ
SDLVA-0120-70-CONDOR
Active
SDLVAActive0.75 to 1.25 GHz0.75 GHz1.25 GHz-65 dBm Min, -70 dBm Typ3.75 " x 1.50 " x 0.50"25 mV/dB Nom, ±50 mV/dB-60 dBm Min, -65 dBm Typ - Measured <-60 dBm
SDLVA-07103-70-LA3
Active
SDLVAActive750 MHz to 1.25 GHz0.75 GHz1.25 GHz-70 dBm Max1.30" x 0.95" x 0.27"30 mV/dB ±5%-65 dBm Max - Measured <-65 dBm
+5 dBm Min - Measured +5 dBm
SDLVA-18G40G-65-CD-292FF-OPTHS
Active
SDLVAActive18.0 to 40.0 GHz18 GHz40 GHz-65 dBm @ 25 ºC2.37" x 1.80" x 0.42"25 mV/dB Nom
-
DLVA-6G18G-50 *
Active
DLVAActive6.0 to 18.0 GHz6 GHz18 GHz-72 dB Min3.2 " x 2.05 " x 0.4"25 mV/dB (±10%) - Measured 25 mV/dB-70 to 0 dBm
EWDM-6G18G-65-70MV-2
Preliminary
DLVAPreliminary6.0 to 18.0 GHz6 GHz18 GHz-71 dBm min.4.2” x 2.9” x 0.8”70 ± 3 mV/dB-65 to 0 dBm
SDLVA-0120-70-100M2G-10DBM
Active
SDLVAActive0.1 to 2.0 GHz0.1 GHz2 GHz-65 dBm3.75 " x 1.50 " x 0.40"25 mV/dB Nominal-65 dBm
SDLVA-18G40G-65-CD-292FF-A15
Active
SDLVAActive18.0 to 40.0 GHz18 GHz40 GHz-67 dBm @ 25 ºC - Measured -68 dBm2.37" x 1.8" x 0.42"25 mV/dB Nom-63 dBm to +2 dBm
SDLVA-2020-70-OPT218-A03-A07-50OHM
Active
SDLVAActive2.0 to 18 GHz2 GHz18 GHz-65 dBm Min (8 to 18 GHz)3.00" x 3.5" x 0.5"20 mV/dB (±10% Tolerance)-65 dBm to +5 dBm
SDLVA-218-65-16MV-12DBM
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-64 dBm Max4.24" x 0.994" x 0.38"16 ± 2 mV/dB Nom-55 to +10 dBm
SDLVA-218-65-16MV-12DBM-OPTJE
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-64 dBm Max4.24" x 0.994" x 0.38"-16.0 ± 2.0 mV/dB Nom
-
ERDLVA-218-CW-75MV
Active
DLVAActive2.0 to 18.0 GHz2 GHz18 GHz-42 dBm2.68" x 2.30" x 0.50"75 ±10 mV Max per dB-40 dBm to +20 dBm
EWDM-2G8G-65-70MV
Active
DLVAActive2.0 to 8.0 GHz2 GHz8 GHz-71 dBm2.82” x 2.25” x 0.5”70 mV/dB ±3 mV/dB-65 to 0 dBm
SDLVA-2020-70-0518 *
Active
SDLVAActive0.5 to 18 GHz0.5 GHz18 GHz-65 dBm Minimum (8 to 18 GHz)3.00" x 3.5" x 0.5"20 mV/dB (±10% Tolerance)-65 dBm to +5 dBm
DLVA-18G40G-42-50-CD-1
Active
DLVAActive18.0 to 40.0 GHz18 GHz40 GHz-34 dBm1.86" x 1.69" x 0.40"50 mV/dB ±3 dB - Measured +51.83 mV/dB-32 to +10 dBm
GMDA-D1003
Active
DLVAActive7.0 to 18.0 GHz7 GHz18 GHz-75 dBm Max2.90" x 3.00" x 0.50"+25.0 ± 1.0 mV/dB Typ - Measured 25.5 mV/dB-70 dBm to +5 dBm
DLVA-6D5G18G-70-JMAKG2
Active
DLVAActive6.5 to 18.0 GHz6.5 GHz18 GHz-72 dB Min3.2 " x 2.05 " x 0.4"25 mV/dB (±10%) @ 50 Ohm Load-70 to 0 dBm
SDLVA-0R5G18G-50R-30DBM
Active
SDLVAActive0.5 to 18 GHz0.5 GHz18 GHz-71 dBm Min - Measured -72 dBm3.2" x 1.8" x 0.4"25 mV/dB (±10%) @ 50 OHM Load,
Measured 24.03 mV/dB
-70 dBm to 0 dBm
EWDM-8G18G-65-70MV
Active
DLVAActive8.0 to 18.0 GHz8 GHz18 GHz-71 dBm2.82” x 2.25” x 0.5”70 ± 3 mV/dB-65 to 0 dBm
GMDA-D1007
Active
DLVAActive0.5 to 2.0 GHz0.5 GHz2 GHz-65 dBm Max3.5” x 3.2” x 0.5”+25 ± 1 mV/dB @ Room Temperature,
+25 ± 2 mV/dB Over Temperature,
+25 mV/dB Typ, - Measured 25.1 mV/dB @ -54 °C, 25.0 mV/dB @ +25 °C, 25.7 mV/dB @ +85 °C
-60 dBm to +7 dBm
HADA-D2001
Active
DLVAActive0.5 to 2.0 GHz0.5 GHz2 GHz-44 dBm Min2.50" x 1.50" x 0.44"
-
-
GMDA-D1004
Active
DLVAActive2.0 to 18.0 GHz2 GHz18 GHz-65 dBm Max3.5" x 3.2" x 0.5"+25 ± 1 mV/dB at Room Temperature - Measured 24.9 mV/dB +25 ± 2 mV/dB over Room Temperature - Measured 24.7 mV/dB +25 mV/dB typ-60 to +7 dBm
SDLVA-18G40G-65-CD-292FF
Active
SDLVAActive18.0 to 40.0 GHz18 GHz40 GHz-65 dBm @ 25 ºC - Measured -68 dBm2.37" x 1.8" x 0.42"25 mV/dB Nom-63 to +2 dBm
ERDLVA-2G8G-65-70MV
Active
DLVAActive2.0 to 8.0 GHz2 GHz8 GHz-71 dBm2.82” x 2.25” x 0.5”70 ± 3 mV/dB-65 to 0 dBm
SDLVA-250M6G-CD-1-12V
Active
SDLVAActive0.25 to 6.0 GHz0.25 GHz6 GHz-73 dB typ.3.2 " x 1.8 " x 0.4"25 mV/dB typ. (±5%) 50 Ohm Load-70dBm to 0dBm
PLVA-218-50-618 *
Active
DLVAActive6.0 to 18.0 GHz6 GHz18 GHz-40 dBm Min2.20" x 1.50" x 0.40"50 mV/dB - Measured 50.6 mV/dB-40 dBm to +0 dBm (Useful Range up to +5 dBm)
ERDLVA-8G18G-65-70MV
Active
DLVAActive8.0 to 18.0 GHz8 GHz18 GHz-71 dBm2.82” x 2.25” x 0.5”70 ± 3 mV/dB-65 to 0 dBm
EWDM-2G6G-65-70MV-1
Active
DLVAActive2.0 to 6.0 GHz2 GHz6 GHz-71 dBm Min4.2" X 2.8" X 0.8"70 +/- 3 mV/dB-65 to 0 dBm
EWDM-6G18G-65-70MV-1
Active
DLVAActive6.0 to 18.0 GHz6 GHz18 GHz-71 dBm Min4.2” x 2.9” x 0.8”70 +/- mV/dB-65 to 0 dBm
DLVA-8G10G-75-50-SFF
Active
DLVAActive8.0 to 10.0 GHz8 GHz10 GHz-78 dBm2.0" x 1.5" x 0.4"50 ± 4 mV/dB - Measured 50 ±1.7 mV/dB-75 to 0 dBm
SDLVA-2020-OPT112
Active
SDLVAActive1.0 to 12.0 GHz1 GHz12 GHz-65 dBm Max - Measured -67 dBm3.5" x 3.0" x 0.5"5 LSB/dB nominal-65 to -35 dBm
HADA-D2002
Active
DLVAActive2.0 to 18.0 GHz2 GHz18 GHz-40 dBm Min2.50" x 1.50" x 0.44"
-
-
SDLVA-6G18G-CD-2-OPT218
Active
SDLVAActive2.0 to 18.0 GHz2 GHz18 GHz-70 dBm Min - Measured -74.2 dBm3.2" x 1.8" x 0.4"25 mV/dB (±10%) 50 Ohms -
Measured 26.0 mV/dB
-70 to +5 dBm
