| General Parameters: |
|---|

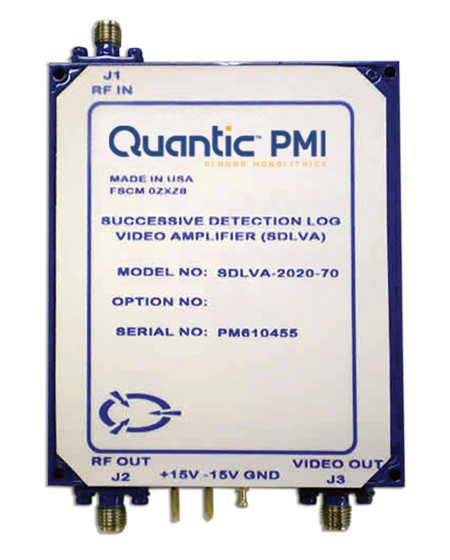

| Type: | SDLVA |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.5 to 18 GHz |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| TSS: | -65 dBm Min (8 to 18 GHz) |
|---|
| Size: | 3.00" x 3.5" x 0.5" |
|---|
| Log Slope: | 20 mV/dB (±10% Tolerance) |
|---|
| Log Range: | -65 dBm to +5 dBm |
|---|
| Log Linearity: | ±1.75 dB Max (-65 dBm to +5 dBm) |
|---|
| Recovery Time: | 200 ns Max (-65 dBm to +5 dBm) |
|---|
| Power Supply: | +15 V @ 600 mA Max
-15 V @ 200 mA Max |
|---|
| Finish: | Painted Blue/Mounting Side Free of Paint (Gold Plated) |
|---|
| Frequency Flatness: | ±2.0 dB Typ (0.5-18 GHz) |
|---|
| VSWR: | 3.0:1 (0.5 to 18.0 GHz @ -20 dBm) |
|---|
| Log Temperature Stability: | ±1.75 dB (0 ºC to 60 ºC) |
|---|
| Dynamic Range: | -65 to +5 dBm |
|---|
| Output Video Load: | 50 Ohm ±10% or as desired |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
