DLVA-6G18G-50-1-SFF
Preliminary
Detection Logarithmic Video Amplifier (DLVA)
Quantic PMI Model DLVA-6G18G-50-1-SFF is a Detection Logarithmic Video Amplifier (DLVA) designed to operate over the 6 to 18 GHz frequency range. This model is designed for ultra high speed applications while maintaining flatness and accuracy.
Product Specifications
| General Parameters: |
|---|
| Type: | DLVA |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 6 to 18 GHz |
|---|
| Frequency Min: | 6 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| TSS: | -73 dBm Min |
|---|
| TSS (Measured): | -73 dBm Min |
|---|

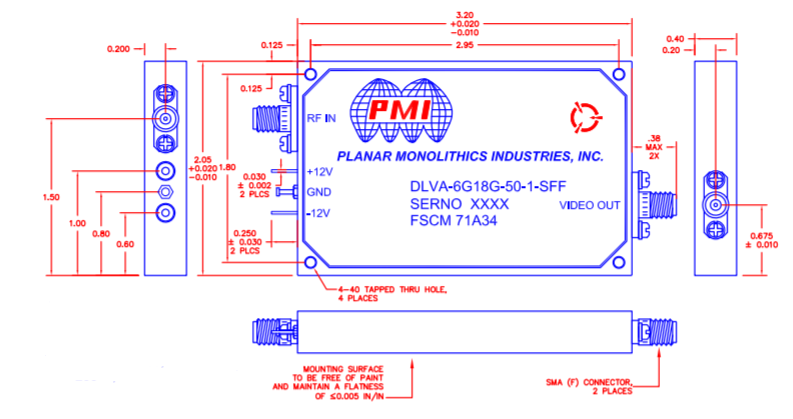

| Size: | 3.2 " x 2.05 " x 0.4" |
|---|
| Log Slope: | 25 mV/dB (±10%) @ 50 Ohm Load |
|---|
| Log Range: | -70 to 0 dBm |
|---|
| Recovery Time: | <60 ns @ -10 dBm |
|---|
| Power Supply: | +12 VDC ±6% @ 300 mA,
-12 VDC ±6% @ 150 mA |
|---|
| Finish: | Painted Blue |
|---|
| VSWR: | 2.0:1 Max |
|---|
| RF Connectors: | SMA (F) |
|---|
| Propagation Delay: | <15 ns |
|---|
| Pulse Range: | 100 ns to CW |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +75 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +85 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | 95% Condensing |
|---|
| Shock: | 10 G, 11 MS, 3 Axis |
|---|
| Vibration: | 4.34 G RMS |
|---|
| Altitude: | SL To 65,000 FT |
|---|
