Quantic PMI's line of Bi-Phase Modulators includes a comprehensive selection of different models which cover broad octave frequency bands ranging from 0.5 to 40 GHz.

Bi-phase modulators take a TTL level digital bits stream that’s encoded onto the RF carrier using 2 Phase Shift Keying (2PSK) modulation, where the 2 phases are separated by 180º. This performance is desirable in communications systems, microwave radio, radar, high data rate test & measurement, serial data transmission, base station infrastructure, and other industrial and military applications.

Quantic PMI's line of 0° to 180° Bi-Phase Modulators offers impressive features that include TTL command control, low insertion loss of 2.5 dB Typ, fast switching speed of 40 ns Typ, low VSWR of 1.8:1 Typ, and maximum peak RF input power of 0.5 watts. All designs require dual bias voltages, and the input and output RF ports are bi-directional. These bi-phase modulators operate across a wide temperature range from -40°C to +85°C.

The compact and rugged packages use solder pins for TTL, DC bias and ground, and field replaceable SMA or 2.92mm female connectors. All designs are highly reliable and meet MIL-STD-202 environmental test conditions for humidity, shock, vibration, altitude, and temperature cycle.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusFrequency MinFrequency MaxPhase StatesInsertion LossVSWRControl Type
PS-90-6012-HS15NS-OPT922-926
Preliminary
Preliminary9.22 GHz9.26 GHz0° / 180°1.6 dB Max1.5:1 MaxTTL
BPM-26D7-26D9-180-292FF
Preliminary
Preliminary26.7 GHz26.9 GHz0° / 180°5 dB Typ2.0:1 GOAL
3.0:1 MAX
TTL
BPM-0R52-180-SFF
Preliminary
Preliminary0.5 GHz2.0 GHz0 DEGREES/ 180 DEGREES +/- 10° Max2.5 dB Typ, 3.0dB Max2.0:1 Max / 1.5:1 GoalTTL
PS-90-6012E
Active
Active4.5 GHz16.5 GHz0° / 180°4.0 dB TYPICAL2.5:1 MAXIMUMTTL
PS-901
Active
Active6.0 GHz12.0 GHz+90°/-90° or +0°/-180°2.5 dB Typ.2.0:1 Typical (2.5:1 Maximum)TTL
PS-90-6012-PH5-HS50NS-15V
Active
Active6.0 GHz12.0 GHz0° / 180º2.5 dB typ., 3.0 dB max.2.5:1 MaxTTL
BPM-1826-180-292FF
Active
Active18.0 GHz26.0 GHz0° / 180º6 dB Typ2.0:1 goal, 3.0:1 MaxTTL
BPM-2640-180-292FF
Active
Active26.0 GHz40.0 GHz0° / 180º8 dB Typ2.0:1 goal, 3.0:1 MaxTTL
BPM-1840-180-292FF
Active
Active18.0 GHz40.0 GHz0° / 180º8 dB Typ2.0:1 goal, 3.0:1 MaxTTL
BPM-2G18G-180-SFF-MB *
Active
Active2.0 GHz18.0 GHz0° / 180º5.5 dB Max1.50:1 MaxTTL
BPM-6G18G-180-F193B
Preliminary
Preliminary6 GHz18 GHz0° / 180°3.5 dB typ2.0:1 TypTTL
PS-90
Active
Active10.2 GHz10.8 GHz0° / 180°2.0 dB Max. with Logic "0"2.0:1 MaxTTL
PS-90-810-OPT910
Preliminary
Preliminary9 GHz10 GHz0° / 180°2.5 dB Typ (3.0 dB Max)2.0:1 Typ (2.5:1 Max)TTL
BPM-4G8G-10W
Preliminary
Preliminary4 GHz8 GHz0° / 180º3.0 dB max2.0:1TTL
BPM-4G8G-HS
Preliminary
Preliminary4 GHz8 GHz0° / 180º3.0 dB max2.0:1 maxTTL
BPM-5G6G-180-SFF
Preliminary
Preliminary5 GHz6 GHz0° / 180°2.5 dB max1.7:1 maxTTL
PS-180-4R15R3-SFF
Active
Active4.1 GHz5.3 GHz0° / 180°3.0 dB Max1.7:1TTL
PS-90-2550
Preliminary
Preliminary2.5 GHz5.0 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-2550E
Active
Active1.9 GHz5.6 GHz0° / 180°2.5 dB typ., 3.0 dB max.2.0:1TTL
PS-90-6012-9F-SS
Preliminary
Preliminary9 GHz9.5 GHz0° / 180°2.0 dB Max1.8:1 TypTTL
PS-90-810
Active
Active8 GHz10 GHz0° / 180°2.5 dB Typ (3.0 dB Max)2.0:1 Typ (2.5:1 Max)TTL
PS-90-1020-101F-512
Active
Active1 GHz1.12 GHz0° / 180°2.0 dB Max1.7:1 MaxTTL
PS-90-2040 Opt HS15NS
Active
Active2 GHz4 GHz0° / 180°2.5 dB Typ, 3.0 dB Max - Measured 0.91 dB2.0:1 - Measured 1.6:1TTL
PS-90-2040E
Active
Active1.5 GHz4.5 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-5010
Active
Active5 GHz10 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-6012
Active
Active6 GHz12 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-1020 Options 101F, VSWR
Active
Active1 GHz1.12 GHz0° / 180°2.0 dB Max1.5:1TTL
BPM-1G2G-1-SFF
Active
Active1 GHz2 GHz0° / 180°8.8 dB Max2.0:1TTL
PS-90-2040-SY
Active
Active2.841 GHz2.871 GHz0° / 180°1.0 dB Max - Measured 0.82 dB1.2:1 Max - Measured 1.14:1TTL
PS-90-6012-HS15NS-OPT10G
Active
Active10 GHz10 GHz0° / 180°2.5 dB Typ, 3 dB Max - Measured 2.7 dB2.0:1 Typ, 2.5:1 Max - Measured 1.9:1TTL
PS-90-1020 *
Active
Active1 GHz2 GHz0° / 180°3.0 dB Typ, 6.0 dB Max2.0:1TTL
PS-90-6012-HS15NS-OPT6D1G
Active
Active6.1 GHz6.1 GHz0° / 180º2.5 dB Typ, 3.0 dB Max2.0:1 Typ, 2.5:1 MaxTTL
PS-90-6012-HS15NS-OPT7G
Active
Active7 GHz7 GHz0° / 180º2.5 dB Typ, 3 dB Max2.0:1 Typ, 2.25:1 MaxTTL
BPM-26D5G40G-180-292FF *
Active
Active26.5 GHz40.0 GHz0° / 180º5.5 dB Typ2.0:1 Max, 1.5:1 goalTTL
PS-90-2040 *
Active
Active2 GHz4 GHz0° / 180°2.5 dB Typ, 3 dB Max2.0:1TTL
PS-90-0510 *
Active
Active0.5 GHz1 GHz0° / 180°2.5 dB Typ, 3.0 dB Max2.0:1TTL
PS-90-6012-HS15NS *
Active
Active6 GHz12 GHz0° / 180°2.5 dB Typ, 3 dB Max2.0:1 Typ, 2.5:1 MaxTTL
PS-90-8018 *
Active
Active8 GHz18 GHz0° / 180°3.0 dB Typ, 3.5 dB Max2.0:1TTL
PS-90-4080 *
Active
Active4 GHz8 GHz0° / 180°2.5 dB Typ, 3 dB Max2.0:1 TypTTL

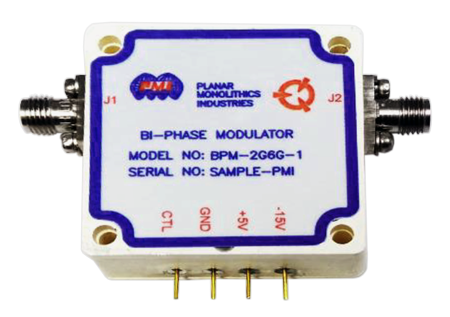

BPM-2G6G-1 *
Active
Active2 GHz6 GHz0° / 180º2.5 dB Max1.8:1 MaxTTL
