Quantic PMI offers the highest quality multi-function modules and integrated microwave assemblies for commercial and military applications in the frequency range from DC to 70 GHz. Quantic PMI custom designs models to your SCD or specifications.

If you do not see exactly what you need, please e-mail your requirement to sales@quanticpmi.com so we can propose an instant solution.

Built to your specifications, functions can include:

  • Amplification
  • Attenuation
  • Filtering
  • Switching
  • Phase Shifting
  • Power Detection
  • Modulation
  • Coupling
  • Limiting
  • Digital Control

Options:

  • Hermetic Sealing
  • Military or Space Screening
  • Custom Packaging
  • Build to Print or Built to your SCD

Form, fit & functionality is our specialty!

Part NumberimageStatusProduct DescriptionItem No.
PDC-20M7D2G-24-5D5-12V-SFFPDC-20M7D2G-24-5D5-12V-SFF ImagePreliminaryPMI model PDC-20M7D2G-24-5D5-12V-SFF is an amplified powered directional coupler covering 20 MHz to 7.2 GHz. The gain in the thru path is 24 dB minimum with 16 dB coupling on the coupling port and greater than 50 dB reverse isolation.108
PDC-20M7D2G-18X-24-5D5-12U-SFFPDC-20M7D2G-18X-24-5D5-12U-SFF ImagePreliminaryPMI Model PDC-20M7D2G-18X-24-5D5-12U-SFF is a 12U 19" rackmount chassis containing 18 powered directional couplers covering 20 MHz to 7.2 GHz. The gain in each thru path is 24 dB minimum with 16 dB coupling on each port and greater than 50 dB reverse isolation.107
Main Control Board DOWNLINK--PreliminaryMain Control Board DOWNLINK105
Main Control Board UPLINK--PreliminaryMain Control Board UPNLINK106
Main Control Board, MARPS-30M6G-3U-1--ActiveMain Control Board, MARPS-30M6G-3U-1104
PIM-100M18-12-628-12V-SFFPIM-100M18-12-628-12V-SFF ImagePreliminaryPMI Model PIM-100M18-12-628-12V-SFF is a 100 MHz to 18 GHz transceiver.103
SWPD-8-218-4D5-60-SFFSWPD-8-218-4D5-60-SFF ImagePreliminaryPMI Model number SWPD-8-218-4D5-60-SFF is a Switched Power Divider. This unit operates in a frequency range of 2-18 GHz.102
ATN-30M6G-128DB-8X1-SFF-DOWNLINKATN-30M6G-128DB-8X1-SFF-DOWNLINK ImagePreliminaryPMI Model no: ATN-30M6G-128DB-8X1-SFF-DOWNLINK is an integrated amplified attenuator assembly that provides 8 inputs with each having an attenuation range of 128 dB.98
ATN-30M6G-128DB-8X1-SFF-UPLINKATN-30M6G-128DB-8X1-SFF-UPLINK ImagePreliminaryPMI Model no: ATN-30M6G-128DB-8X1-SFF-UPLINK is an integrated amplified attenuator assembly that provides 8 inputs with each having an attenuation range of 128 dB.99
PDC-20M6G-18X-24-5D5-12U-SFFPDC-20M6G-18X-24-5D5-12U-SFF ImagePreliminaryPMI model number PDC-20M6G-18X-24-5D5-12U-SFF is a 12U 19"rackmount chassis containing 18 powered directional couplers covering 20 MHz to 6 GHz. The gain in each thru path is 24 dB minimum with 16 dB coupling on each coupled port and greater than 50 dB reverse isolation.97
MARPS-30M6G-5U-2MARPS-30M6G-5U-2 ImagePreliminaryPMI Model MARPS-30M6G-5U-2 is a multiagent radio frequency path simulator consisting of an dual integrated amplified attenuator assembly that operate over the 30 MHz to 6.0 GHz frequency range in order to simulate field testing in a reduced, controlled lab environment and conveniently housed in a 19" rack - 5U.96
PIM-333M368M-28-816-5V-SFFPIM-333M368M-28-816-5V-SFF ImageActivePMI Model No. PIM-333M368M-28-816-5V-SFF is a Variable Frequency Comb Generator with an input frequency from 333 to 368 MHz and 2.0 to 16.0 GHz output. It has a maximum VSWR of 1.8:1, an input tone range power level of -17 dBm ± 3 dB, and an input tone spurious rejection of -55 dBc. This unit's housing is 4.50" x 3.50" x 0.75" and has SMA female connectors.100
SUB13D5G-7G-SFFSUB13D5G-7G-SFF ImageActivePMI Model No. SUB13D5G-7G-SFF offers a switch filter bank with a comb generator. This integrated assembly offers low insertion loss and high rejection on all harmonics.94
ATN-30M6G-128DB-9X1-SFFATN-30M6G-128DB-9X1-SFF ImageActivePMI Model No. ATN-30M6G-128DB-9X1-SFF is an integrated amplified amplified attenuator assembly that provides 8 inputs with each having an attenuation range of 128 dB. The ninth input serves as a bypass channel.92
PRX-20-1G18G-850M-SFF-V2PRX-20-1G18G-850M-SFF-V2 ImageActivePlanar Monolithics Industries model number PRX-20-1G18G-850M-SFF-V2 is a channelized receiver with an RF input of 1 to 18 GHz. Twenty output channels allow simultaneous signals of 850 MHz in a 1 to 4.4 GHz IF band to be output for digitization. An internal reference is included to lock the various LO's to down convert the signal into the required frequency bands.93

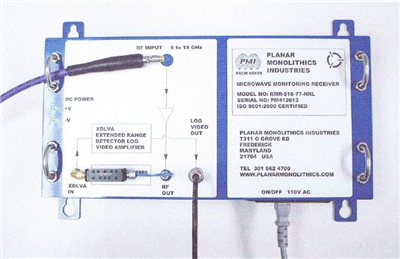

RMR-818-77-NRLRMR-818-77-NRL ImageActivePMI Model RMR-818-77-NRL is a Microwave Pulse and CW Monitoring Receiver, covering 8 to 18 GHz with External Replaceable Bandpass Filters. The Signal is Processed with an Extended Range Detector Log Video Amplifier (XDLVA).91
RFOC-811-QRCRFOC-811-QRC ImageActivePMI Model RFOC-811-QRC is a custom-built, 8 to 11 GHz, RF Sub-System used to perform RF Signal Processing.89
RFE-218-70-BB Option JTRFE-218-70-BB Option JT ImageActivePMI Model RFE-218-70-BB Option JT is a 2 to 18 GHz, High Sensitivity, High Dynamic Range, Direction Finding (DF) Receiver Front End consisting of 3 Power Dividers, 6 Limiters, 1 Low-Noise 15 dB Gain Amplifier, and 2 AMC 70 dB Extended Dynamic Range Detector Log Video Amplifiers (ERDLVA) integrated in a Miniature Assembly.90
LSP-0518-SKLSP-0518-SK ImageActiveQuantic PMI Model Number LSP-0518-SK is an Analog Level, Scan and Pulse Modulation Module that is capable of exponential (linear in dB) Modulation, for rugged and high reliability applications using digital process techniques, that works from 0.5 to 18.0 GHz88
ADP-140M-51DR-TD OPT: HS, NRL, LOGADP-140M-51DR-TD OPT: HS, NRL, LOG ImageActivePMI Model No.: ADP-140M-51DR-TD Option HS, NRL, LOG is a Detection Preamp Module that provides Amplification, Video Detection, and Video Amplification with an Input of 140 MHz pulsed RF with a 25 MHz Bandwidth87
ADA-506F-30-TSS61-LMADA-506F-30-TSS61-LM ImageActivePMI Model No. ADA-506F-30-TSS61-LM is a 5.4 to 5.9 GHz, DC coupled, temperature compensated linear amplifier detector module with 8 ns rise time and 10 ns fall time. This unit operates on +15 VDC @ 250 mA and -15 VDC @ 80 mA and measured 2.50 x 2.90" x 0.50" with SMA female connectors.86

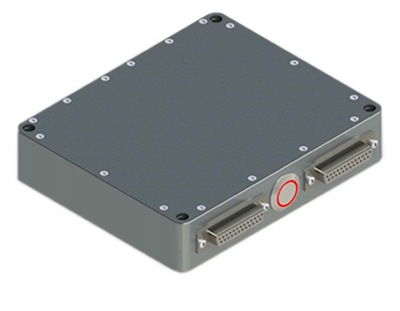

PL-ENET-18BIT-0V5V-2X*PL-ENET-18BIT-0V5V-2X* ImageActivePMI Model No. PL-ENET-18BIT-0V5V-2X is a Dual Microprocessor Module that can control attached devices I/O control port. It features two Ethernet ports to communicate with the controlling computer, and two 25 pin D-Sub connectors to communicate with the desired device. It features a red LED lit push button switch to toggle power on or off.85

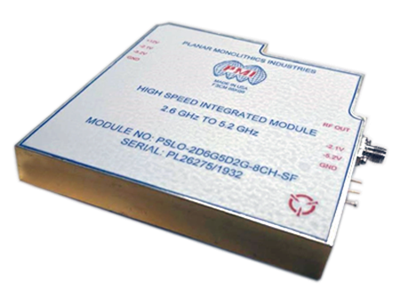

PSLO-2D6G5D2G-8CH-SFPSLO-2D6G5D2G-8CH-SF ImageActiveQuantic PMI Model No. PSLO-2D6G5D2G-8CH-SF is a high speed integrated module providing 8 discrete LO frequencies switched to a single output.1
PIMA-218-3S3A-32-NS3F-NSIPIMA-218-3S3A-32-NS3F-NSI ImageActivePMI Model No. PIMA-218-3S3A-32-NS3F-NSI is an integrated microwave assembly consisting of 3 switches and 4 amplifiers covering a frequency range of 2.0 to 18.0 GHz. This model is offered in a slim-line housing measuring 4.0" x 2.0" x 0.75" with N-type female IN and 3 SMA female connectors output.84
PTRAN-CC-100M18G-70-MAHPTRAN-CC-100M18G-70-MAH ImageActivePMI Model No. PTRAN-CC-100M18G-70-MAH is a transceiver module covering the frequency range of 100 MHz to 18.0 GHz. This is part of a full transceiver subsystem that fits into a 3U open VPX form factor utilizing the high speed VITA 67 RF connector. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz range. It also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion. The unit is made to attach to an FPGA controller card.2
PIM-SF-450M2D7G-25P-SFFPIM-SF-450M2D7G-25P-SFF ImagePreliminaryPMI Model No. PIM-SF-450M2D7G-25P-SFF is a 450 MHz to 2.7 GHz Switch Filter D Matrix Assembly. This model has 7 inputs and 2 outputs along with 14 control lines to select the RF path. The unit is internally DC blocked and powered by ±5 V and +3.3 V.3
RSM-218-65RSM-218-65 ImageActiveRSM-218-65 is a Receiver Front-End IFM Subsystem with 2.0 to 18.0 GHz DC-Coupled Log Video Amplifier Outputs and Five DC-Coupled Frequency Discriminator Video Outputs (2.0 to 4.0 GHz, 4.0 to 6.0 GHz, 6.0 to 10.0 GHz, 10.0 to 14.0 GHz, and 14.0 to 18.0 GHz).5
RSM-618-65RSM-618-65 ImageActiveRSM-618-65 is a Receiver Front-End IFM Subsystem with 6.0 to 18.0 GHz DC-Coupled Log Video Amplifier Outputs and Three DC-Coupled Frequency Discriminator Video Outputs (6.0 to 10.0 GHz, 10.0 to 14.0 GHz, and 14.0 to 18.0 GHz).6
LBDFM-052-BD-DPLBDFM-052-BD-DP ImageActiveLBDFM-052-BD-DP, is a Low Band Direction Finding Module from 500-2000 MHz, Uni-Directional, Multi-Function Device that routes the signal present at the RF Input Connector through one of its four channels to the RF Output Connector, to amplitude modulate the input signal. The input and output ports can be switched to internal 50 Ohm terminations to ensure matched source and load impedance for interfacing devices during off-times and Isolation or VSWR tests.4
Integrated Switch / Amplifier ModulesIntegrated Switch / Amplifier Modules ImagePreliminaryPMI offers a full line of switchable output amplifiers that cover the 500 kHz to 40 GHz frequency range8
8.9 to 9.4GHz, Dual Channel Amplifier with Integrated Bi-Phase Modulators--PreliminaryPMI offers Model Number 5829474 Rev. V is a Dual Channel Amplifier with Integrated Bi-Phase Modulators. This amplifier operates from 8.9 to 9.4GHz and provides a RF Output of 1.15 watts minimum. The output power variation over frequency is less than ±0.5dB and the the output power variation versus temperature is less than -0.038dB/°C over 0 to +50°C operating temperature. The amplifier offers phase tracking from output to output of less than ±5° over the operating frequency at 0° phase setting and at +45°C. This noise figure is less than 10dB and second harmonic supporession is -30dBm minimum. The amplifier is supplied in a housing measuring 9.0" x 5.0" x 3.25".9
Integrated Filter / Detector Assembly for Airborne ApplicationsIntegrated Filter / Detector Assembly for Airborne Applications ImageActivePMI Model RFFD-618-730049 is a 6 to 18GHz low pass filter combined with a Schottky Biased Detector including a reverse voltage protection diode. A duplicate detector and protection diode is included for DC offset voltage compensation.7
ADP-150M-100MBW-51DR-TDADP-150M-100MBW-51DR-TD ImageActivePMI Model No. ADP-150M-100MBW-51DR-TD is a detector preamp module that provides amplification, video detection, and video amplification with an input of 150 MHz pulsed RF with a 200 MHz bandwidth.12
Integrated Bias-Tee, Filtered Limiter ModuleIntegrated Bias-Tee, Filtered Limiter Module ImageActivePMI model number PIA-BTFL-GPO-2CH is an dual channel integrated assembly that consists of a Bias-Tee, High Pass Filter, and Limiter. This compact module is supplied with field replaceable GPO connectors. The module is designed to be supplied either in hermetic or non-hermetic form. Order Option -HERM for hermetically sealed version.10
PEC-20M3G-8T-SFGM-LVPEC-20M3G-8T-SFGM-LV ImageActivePMI has has designed and manufactured various switch matrix assemblies by using PMI standard or custom Solid-State Switches and power dividers all assembled into a single integrated module. An example of this work is described below. PMI has designed and produced the following Single Pole, Eight Throw Switch that operates over the 20MHz to 3.0Ghz Frequency Range. A complete Product Feature along with electrical and mechanical specifications can be seen by clicking on the following image. Based upon various options, both a low band and high band assembly was produced. By utilizing the same switch, but with different power dividers PMI was able to offer a a low band switch matrix covering 20MHz to 500MHz and a high band switch matrix covering 1.0GHz to 3.0GHz. Other frequency ranges and configurations are available.11
PIM-CPL-CMBR-2D6G5D2G-15P-16N-4D5L-12V-SFFPIM-CPL-CMBR-2D6G5D2G-15P-16N-4D5L-12V-SFF ImagePreliminaryPMI Model No. PIM-CPL-CMBR-2D6G5D2G-15P-16N-4D5L-12V-SFF is a 2.6 to 5.2 GHz Coupler/Combiner Assembly. This model has 8 inputs, 2 direct outputs and a coupled output port. The direct outputs have 4.5 dB loss, a 16 dB noise figure, and a +15 dBm input P1dB. The unit is powered with +12V.13
PIM-618-4CH-60-SFFPIM-618-4CH-60-SFF ImagePreliminaryPMI Model No. PIM-618-4CH-60-SFF is a 6.0 to 18.0 GHz feed-thru assembly. This model has 4 independent RF paths (Channel A, B, C, D). Each path contains an external feed-thru path with switched RF bypass. A single control line determines the external feed-thru bypass state (Enabled or Bypassed) on all 4 channels.19

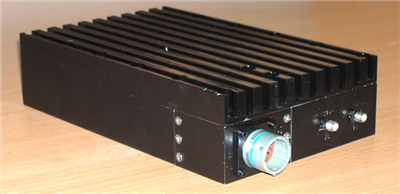

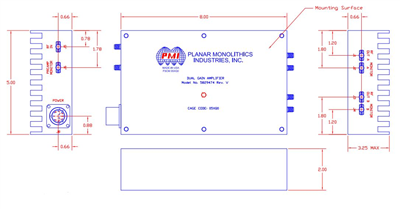

5829474 Rev. V5829474 Rev. V ImagePreliminaryPMI offers Model Number 5829474 Rev. V is a Dual Channel Amplifier with Integrated Bi-Phase Modulators. This amplifier operates from 8.9 to 9.4GHz and provides a RF Output of 1.15 watts minimum. The output power variation over frequency is less than ±0.5dB and the the output power variation versus temperature is less than -0.038dB/°C over 0 to +50°C operating temperature. The amplifier offers phase tracking from output to output of less than ±5° over the operating frequency at 0° phase setting and at +45°C. This noise figure is less than 10dB and second harmonic supporession is -30dBm minimum. The amplifier is supplied in a housing measuring 9.0" x 5.0" x 3.25".20
IFE-DRS-KITIFE-DRS-KIT ImagePreliminaryPMI Model No. IFE-DRS-KIT is an Integrated Front End (IFE) unit that consists of a low noise amplifier, RF Log Detector, and a low noise video amplifier. This integrated unit was designed to support a phased array radar automated test set.21
PIA-BTFL-GPO-2CH (Revision B)PIA-BTFL-GPO-2CH (Revision B) ImageActivePMI model number PIA-BTFL-GPO-2CH Revision B is an dual channel integrated assembly that consists of a Bias-Tee, High Pass Filter, and Limiter. This compact module is supplied with field replaceable GPO connectors. The module is hermetically sealed.23
PSD-2G6G-CD-1PSD-2G6G-CD-1 ImagePreliminaryPMI Model No. PSD-2G6G-CD-1 is High Power, Switch Box Assembly that provides protection to front-end receivers when in the presence of high power signals. This is accomplished by sensing the input signal level and then switching the input signal into 50 ohms terminations when a set threshold level is exceeded. This assembly operates from 2.0 to 6.0GHz and can handle input power levels up to 10 Watts CW. The unit is supplied with an external 0 to 69dB step attenuator that can be used to adjust the signal levels feeding the internal threshold detector and thereby setting the trigger level of when the unit passes the input RF signal to the output of the switch assembly or when the signal is switched into the internal 50 ohms terminations. The switching speed is 50ns maximum. This unit operates on 110VDC, 50/60Hz and is supplied in a housing that measures 15.0” x 10.0” x 4.0”. This unit is ruggedized and designed for harsh environments and is EMI shielded.25
Switchable Output AmplifiersSwitchable Output Amplifiers ImagePreliminaryFrequency Ranges from 500 kHz to 40 GHz, Zero Loss or Gain Levels up to 60 dB, Output Power Levels up to +30 dBm, Signal Path direction can be forward, reverse, or bidirectional
Custom Package Sizes Available,Internal Voltage Regulation for +12 to +15 VDC Operation , Internal Reverse Voltage Protection
TTL Controlled Switches (Ethernet and RS-232 available), Ultra-Fast Switching Speeds, High Port-Port Isolation, Unconditional Stability
30
Various Switch Matrix AssembliesVarious Switch Matrix Assemblies ImageActivePMI has has designed and manufactured various switch matrix assemblies by using PMI standard or custom Solid-State Switches and power dividers all assembled into a single integrated module. An example of this work is described below. PMI has designed and produced the following Single Pole, Eight Throw Switch that operates over the 20MHz to 3.0Ghz Frequency Range. A complete Product Feature along with electrical and mechanical specifications can be seen by clicking on the following image. Actual test data is presented in the following link. Please click on the link to view the test data of PMI Model No. PEC-20M3G-8T-SFGM-LV. Other frequency ranges and configurations are available. Please contact PMI with your specific requirement at sales@pmi-rf.com32
PFEM-9D4G-CD-1PFEM-9D4G-CD-1 ImagePreliminaryPMI Model No. PFEM-9D4G-CD-1 is a multi-function module that provides amplification, switching and filtering within the frequency band of 9410 MHz. This module provides two input channels and is switchable to a common output. This model is designed to offer multiple gain level selection, high channel to channel isolation and fast switching speeds.24
PIFA-9D4G-1D8G-1PIFA-9D4G-1D8G-1 ImagePreliminaryPMI Model No. PIFA-9D4G-1D8G-1 is an integrated frequency down converter used within Doppler Radar Systems. The RF Input is 9.4 GHz +/- 30Mhz with an input dynamic range of 100 to 0 dBm. The LO Input is 2.803 GHz +/- 15 MHz with a power level of +5 to +7 dBm. The resulting IF Output Frequency is 1.8 GHz +/- 10 MHz. The RF to IF gain is 10 dB to 13 dB. This module incorporates internal RF, IF and LO filtering and amplification for optimum out of band rejection and superior electrical performance. The group delay ripple from RF to IF Output is less than 0.1 ns over a 20 MHz bandwidth. The OIP3 is greater than 25 dBm. The module operates on single supply of +12 volts and is supplied with SMA female connectors in a package measuring 1.8" x 1.15" x 0.4".33

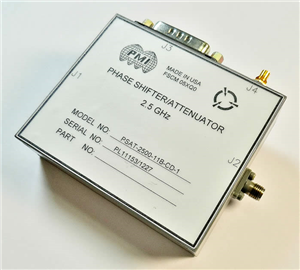

PSAT-2500-11B-CD-1PSAT-2500-11B-CD-1 ImageActiveQuantic PMI Model PSAT-2500-11B-CD-1 is a 2.5 GHz, 11 Bit Digitally Controlled Attenuator / Analog Phase Shifter assembly having the capability for phase shifting from 0 to 360° with an attenuation range of 60 dB minimum. This model has insertion loss of 10 dB maximum and a VSWR of 1.5:1 maximum into 50 ohms. The phase shift speed is 50 ns maximum while the attenuation speed is 1 µs maximum. This model is designed to offer high levels of phase shift accuracy and attenuation accuracy over time and over an operating temperature range of 0 °C to +70 °C. This device is offered in a small housing that measures 3.027
PFDM-3R66R65-13-7R5DC-SFFPFDM-3R66R65-13-7R5DC-SFF ImageActiveInternal band pass filtering for excellent sub-harmonic and spurious performance Integrated analog controlled attenuator for output power control Integrated RF switches for band selection, doubler by-pass mode and selection of output port Fast switching of band selection Ultra-small size while maintaining ultra-high performance.26
ADM-10M18G-SFF-110VACADM-10M18G-SFF-110VAC ImagePreliminaryPMI Model No. ADM-1018G-SFF-110VAC is a state-of-the-art 10 MHz to 18.0 GHz integrated subsystem that allows users to input RF signals and provide automatic detection when signal levels fall below -30 dBm and automatically switch in a low noise amplifier such that low level signals can remain detectable. The purpose of this module is to provide optimum RF signal levels to a RF/fiber converter module. The unit is powered by standard 100 VAC. The RF input is via a sma female connector and the output is via a sma female connector. the product is configured such that the end user can change the value of the fixed attenuator level by changing the internal sma screw-on attenuator such that in system optimization can be done.31
DCM-100M18G-1R5G6G-CD-1DCM-100M18G-1R5G6G-CD-1 ImagePreliminaryPMI Model No. DCM-100M18G-1R5G6G-CD-1 is a Non-Blocking RF Down Conversion Module which accepts RF inputs from 100MHz to 18.0GHz and provides an IF output between 100MHz and 6.0GHz40
LCM-16G100MBW-CD-1LCM-16G100MBW-CD-1 ImagePreliminaryPMI Model No. LCM-16G100MBW-CD-1 is an Amplified RF Laser Control Module for use at a frequency of 16.0 GHz, ±50 MHz with an IF range of DC to 10 kHz. It features a 20 dB voltage programmable attenuator and a 360° phase shifter. This model is designed for low spectral noise and high reverse isolation in a slimline housing.36
PL-USB-TTL-24B-15DMPL-USB-TTL-24B-15DM ImagePreliminaryPMI Model No. PL-USB-TTL-24B-15DM is a USB to TTL Controller which takes a USB command and outputs 24 parallel TTL bits. The unit is powered through the USB interface.43
PSD-2G6G-CD-2PSD-2G6G-CD-2 ImageActivePMI Model No. PSD-2G6G-CD-2 is High Power, Switch Box Assembly that provides protection to front-end receivers when in the presence of high power signals. This is accomplished by sensing the input signal level and then switching the input signal into 50 ohms terminations when a set threshold level is exceeded. This assembly operates from 2.0 to 6.0GHz and can handle input power levels up to 10 Watts CW. This unit is supplied with an internal 0 to 60dB digitally controlled, solid-state attenuator that can be used to adjust the signal levels feeding the internal threshold detector and thereby setting the trigger level of when the unit passes the input RF signal to the output of the switch assembly or when the signal is switched into the internal 50 ohms terminations. The unit features an ethernet interface and comes programmed with a static IP address of 10.1.1.240. This IP address can be changed to an IP of your choosing. This unit operates on 110VDC, 50/60Hz and is supplied in a housing that measures 8.0” x 6.0” x 2.66”. This unit is ruggedized and designed for harsh environments and is EMI shielded.46
PSD-6G16G-CD-2PSD-6G16G-CD-2 ImageActivePMI Model No. PSD-6G18G-CD-2 is High Power, Switch Box Assembly that provides protection to front-end receivers when in the presence of high power signals. This is accomplished by sensing the input signal level and then switching the input signal into 50 ohms terminations when a set threshold level is exceeded. This assembly operates from 6.0 to 18.0GHz and can handle input power levels up to 10 Watts CW. This unit is supplied with an internal 0 to 60dB digitally controlled, solid-state attenuator that can be used to adjust the signal levels feeding the internal threshold detector and thereby setting the trigger level of when the unit passes the input RF signal to the output of the switch assembly or when the signal is switched into the internal 50 ohms terminations. The unit features an ethernet interface and comes programmed with a static IP address of 10.1.1.241. This IP address can be changed to an IP of your choosing. This unit operates on 110VDC, 50/60Hz and is supplied in a housing that measures 8.0” x 6.0” x 2.66”. This unit is ruggedized and designed for harsh environments and is EMI shielded.47
PTRAN-100M18G-70-MAHPTRAN-100M18G-70-MAH ImageActiveQuantic PMI Model No. PTRAN-100M18G-70-MAH is a transceiver covering the frequency range of 100 MHz to 18.0 GHz. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz frequency range. It also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion.29
PTRAN-100M18G-SFB-3UVPX-MAHPTRAN-100M18G-SFB-3UVPX-MAH ImageActivePMI Model No. PTRAN-100M18G-SFB-3UVPX-MAH is a transceiver covering the frequency range of 100 MHz to 18 GHz. The transceiver fits into a 3U Open VPX from factor utilizing the high speed VITA 67 RF Connector. This unit up-converts a 100 MHz to 4 GHz transmit signal to the 2.0 to 18.0 GHz range. It also down converts a 100 MHz to 18 GHz received signal to the 100 MHz to 4 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input, along with two 6-way switches allowing one of the six filter paths to be chosen. A filter bank is used also on the transmit path, with two 6-way switches allowing one of the six filter paths to the chosen.34
PUC-21D5G32D5G-35-24-292F-SFFPUC-21D5G32D5G-35-24-292F-SFF ImagePreliminaryPMI Model No. PUC-21D5G32D5G-35-24-292F-SFF is an Up-Converter with an amplified RF output path covering 21.5 to 32.5GHz. The RF output lower sideband is located at 2*LO - IF and the upper sideband is located at 2*LO + IF. The unit is supplied with a 2.92mm(F) connector on the RF output and SMA(F) connectors on the LO/IF input in a housing measuring 4.5" 2.0" x 1.0"39
MPC-20R2G21R2G-CD-LNFMPC-20R2G21R2G-CD-LNF ImagePreliminaryQuantic PMI Model No. MPC-20R2G21R2G-CD-LNFis a Monopulse Circuit designed for beamforming applications. This unit works over the 20.2 to 21.2GHz frequency range. Low noise amplifiers are integrated directly onto all eight inputs and an output switch allows the selection of a 0 or 90° output.22
PCM-6G18G-CD-SFFPCM-6G18G-CD-SFF ImagePreliminaryPMI Model No. PCM-6G18G-CD-SFF is a polarization control module operating between 6.0 and 18.0GHz. It features dual channels, each with adjustable attenuation, phase and output switching. Control is via serial data bus.52
PDC-70M40G-QUAD-ENET-1U-292FFPDC-70M40G-QUAD-ENET-1U-292FF ImagePreliminaryPMI Model No. PDC-70M40G-QUAD-ENET-1U-292FF contains four frequency down converters consisting of dual inputs with 7-way switched filter banks and the ability for 4 separate local oscillators or a single shared local oscillator. The 7-way switched filter bank includes six 4GHz wide filter paths and a 70MHz to 40GHz thru channel with switching speeds of 100ns. The channels can be selected through an ethernet connection and the IP address can be changed using a USB interface. The ethernet connection also allows for command acknowledgements to be returned to the user as well as switch positions. The default switch positions on Power-On is to have all filter banks in the thru channel positions, inputs set at "A" positions and a single local oscillator.37
EWDM-2G6G-65-70MVEWDM-2G6G-65-70MV ImageActivePMI Model No. EWDM-2G6G-65-70MV is a CW immune EW detector module operating over the 2.0 to 6.0 GHz frequency range. This module features an internal switch used to switch between the "Bit In" and RF In" with input blanking on both ports. In addition, two amplified RF outputs are provided a 7 dB gain channel and a 33 dB gain channel. The video output is designed to drive a 150 ft. cable, while maintaining high speed, and excellent accuracy.50

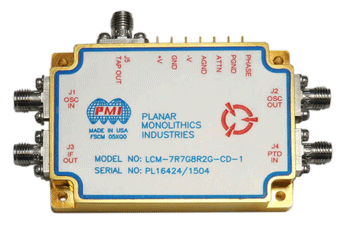

LCM-7R7G8R2G-CD-1LCM-7R7G8R2G-CD-1 ImageActiveQuantic PMI Model No. LCM-7R7G8R2G-CD-1 is an Amplified RF Laser Control Module for use at a frequency of 7.7 GHz to 8.2 GHz with an IF range of DC to 10KHz. It features a 20dB voltage programmable attenuator and a 360° phase shifter. This model is designed for low spectral noise and high reverse isolation, offered in a slim line housing measuring only 2.5" x 1.75" x 0.4".41
PIA-FLA-2G18G-3CHPIA-FLA-2G18G-3CH ImagePreliminaryPMI Model No. PIA-FLA-2G18G-3CH is an integrated assembly consisting of three identical channels. Each channel features an input 2-18GHz high pass filter, limiter and low noise amplifier. The gain is 23dB with a noise figure of 5dB, OP1dB of +15dBm. This module is designed to survive input power levels of 1 watt CW, 10 watts peak with 1us puls width and 1KHz PRF.17
PIA-FLA-2G18G-3CH-CPLPIA-FLA-2G18G-3CH-CPL ImagePreliminaryPMI Model No. PIA-FLA-2G18G-3CH-CPL is an integrated assembly consisting of three identical channels. Each channel features an input 2-18GHz high pass filter, limiter and low noise amplifier along with a coupled output of each input. The gain is 23dB with a noise figure of 6.75dB, OP1dB of +15dBm. This module is designed to survive input power levels of 1 watt CW, 10 watts peak with 1us puls width and 1KHz PRF.18
PMA-218-LSPPMA-218-LSP ImagePreliminaryPMI Model No. PMA-218-LSP is a modulator amplifier capable of amplitude modulation, level control and pulse modulation for an RF stimulus path that works from 0.5 to 2.0 GHz and 2.0 to 18.0 GHz. This integrated module contains switches, modulators, attenuators and amplifiers and is built using MIC/MMIC technology.44
PQIF-2R5G3R5G-DC400MPQIF-2R5G3R5G-DC400M ImagePrelimnaryPMI Model No. PQIF-2R5G3R5G-DC400M is a Quadrature IF Mixer with an RF and LO frequency range of 3 GHz ±0.5 GHz with an IF range of DC to 400 MHz. This model has less than 10 dB of conversion loss, carrier suppression of more than 18 dBc and sideband suppression of 15 dBc. The quadrature phase accuracy is ±10 degrees maximum with a quadrature amplitude accuracy of ±1.0 dB maximum. This model is supplied in a package measuring only 2.38" x 1.56" x 0.46.54
PSD-6G16G-CD-1PSD-6G16G-CD-1 ImageActivePMI Model No. PSD-6G16G-CD-1 is High Power, Switch Box Assembly that provides protection to front-end receivers when in the presence of high power signals. This is accomplished by sensing the input signal level and then switching the input signal into 50 ohms terminations when a set threshold level is exceeded. This assembly operates from 6.0 to 18.0GHz and can handle input power levels up to 10 Watts CW. The unit is supplied with an external 0 to 69dB step attenuator that can be used to adjust the signal levels feeding the internal threshold detector and thereby setting the trigger level of when the unit passes the input RF signal to the output of the switch assembly or when the signal is switched into the internal 50 ohms terminations. The switching speed is 50ns maximum. This unit operates on 110VDC, 50/60Hz and is supplied in a housing that measures 15.0” x 10.0” x 4.0”. This unit is ruggedized and designed for harsh environments and is EMI shielded.55

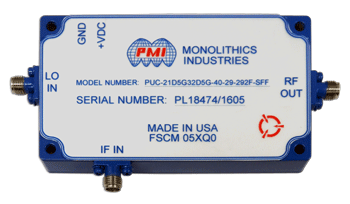

PUC-21D5G32D5G-40-29-292F-SFFPUC-21D5G32D5G-40-29-292F-SFF ImageActiveQuantic PMI Model No. PUC-21D5G32D5G-40-29-292F-SFF is an Up-Converter with an amplified RF output path covering 21.5 to 32.5 GHz. The RF output lower sideband is located at 2*LO-IF and the upper sideband is located at 2*LO+IF.48

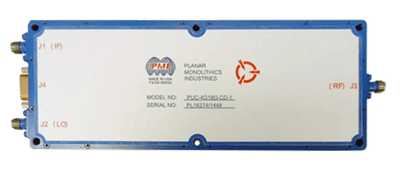

PUC-4G18G-CD-1PUC-4G18G-CD-1 ImageActiveQuantic PMI Model No. PUC-4G18G-CD-1 is an amplified Up/Down Converter for the frequency range of 4.0 to 18.0 GHz, with an IF range of 10 MHz to 100 MHz. It features a 32 dB programmable attenuator with 10-Bit resolution and an output amplifier to provide conversion gain. It also features an IF transfer switch to select the upper or lower sideband.49
DGM-18G40G-292FF-DSDGM-18G40G-292FF-DS ImageActivePMI Model No. DGM-18G40G-292FF-DS is a Quad Phase & Amplitude Matched mmW (Milimeter Wave) Diplexer-Gain module designed to operate over the 18.0 to 40 GHz frequency range with a switched output and an integrated power divider feeding the four antenna inputs via a 20 dB coupler for ease of system set up. The band select function not only switches bands, but also allows the amplified bands not in use to be turned off to reduce power consumption. This model is also designed to have better than 60 dB harmonic suppression.35
EWDM-6G18G-65-70MVEWDM-6G18G-65-70MV ImageActivePMI Model No. EWDM-6G18G-65-70MV is a CW immune EW detector module operating over the 6.0 to 18.0 GHz frequency range. This module features an internal switch used to switch between the "Bit In" and RF In" with input blanking on both ports. In addition, two amplified RF outputs are provided a 7 dB gain channel and a 33 dB gain channel. The video output is designed to drive a 150 ft. cable, while maintaining high speed, and excellent accuracy.51
PL-MUX-2G18G-LM-AMP-SP4T-SFFPL-MUX-2G18G-LM-AMP-SP4T-SFF ImagePreliminaryPMI Model No. PL-MUX-2G18G-LM-AMP-SP4T-SFF is an integrated module containing a multiplexer with 4 bands covering 2.0 to 18.0GHz. Each band is followed by a limiter and amplifier to give a gain of 23dB. The output is a 4 way switch selecting one of the four bands.57
PMOD-IFCPL-60M-AMP-3UPMOD-IFCPL-60M-AMP-3U ImageActivePMI Model No. PMOD-IFCPL-60M-AMP-3U is an IF Coupler Module on a 3U Open VPX card. The operating frequency is 60 MHz. A test signal and 3 RF signals are input allowing for 3 output signals45
PIM-TR-9G10G-16CH-B33M-SFFPIM-TR-9G10G-16CH-B33M-SFF ImagePreliminaryPMI Model No. PIM-TR-9G10G-16CH-B33M-SFF is a Transmit/ Receive Module which up converts a 4.0 GHz IF signal to the 9.0 to 10.0 GHz transmit frequency range. It similarly down converts a 9.0 to 10.0 GHz received signal to a 4.0 GHz IF signal. Sixteen transmit/ receive channels are available. The unit is housed in a nickel plated package measuring 13.85" x 7.87" x 0.8658
PSL-13D414D2-CD-PPPSL-13D414D2-CD-PP ImageActivePMI Model Number PSL-13D414D2-CD-PP is a switch limiter operating in the 13.4 to 14.2 GHz frequency range. A +10 mA bias will turn the switch off while a -10 mA bias will turn the switch into the insertion loss state. The integrated limiter will handle 20 W having a 2 µs pulse width.28
SWA-30M6G-36-6R0-12-SFFSWA-30M6G-36-6R0-12-SFF ImagePreliminaryPMI Model number SWA-30M6G-36-6R0-12-SFF is a low noise switched amplifier with very wide bandwidth (0.03-6.0 GHz), flat gain across the band, and high linearity. Solid state switches are integrated on the amplifier input and output ports to provide a bypass function all in a single integrated package.82
PL-MCU-ENET-TTL-14-10B-1UPL-MCU-ENET-TTL-14-10B-1U ImageActivePMI Model No. PL-MCU-ENET-TTL-14-10B-1U is an Ethernet Microcontroller Test Box which allows for an ethernet command to be sent up to 140 parallel TTL output bits. Fourteen 15-Pin D-Subminiature connectors are provided to control fourteen 10-Bit devices. +15 VDC is also provided on each connector to provide up to 50 Watts total to the external devices. A custom GUI is provided along with operating instructions with commands to allow the user to write their own GUI for direct control.42

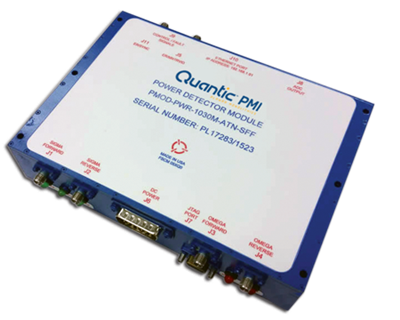

PMOD-PWR-1030M-ATN-SFFPMOD-PWR-1030M-ATN-SFF ImagePreliminaryQuantic PMI Model No. PMOD-PWR-1030M-ATN-SFF is a power detector module. The operating frequency is 1030 ± 0.01 MHz. Two pairs of forward and reverse signals are input allowing for a 12 bit linear digital output proportional to the input power. A GUI is provided to interface through ethernet and allow MCU programming, unit calibration and setting of the variable attenuators.53
MARPS-30M6G-3U-1MARPS-30M6G-3U-1 ImageActiveQuantic PMI Model No. MARPS-30M6G-3U-1 is a Multiagent Radio Frequency Path Simulator consisting of an integrated amplified attenuator assembly and an 8-Way Amplified Power Divider that operate over the 30 MHz to 6.0 GHz frequency range in order to simulate field testing in a reduced, controlled lab environment.61
PL-MCU-ENET-TTL-MAH*PL-MCU-ENET-TTL-MAH* ImageActivePMI Model No. PL-MCU-ENET-TTL-MAH is an Ethernet Microcontroller Test Box which allows for an ethernet command to be sent up to 18 paralell TTL output bits. This controller can be used with may PMI products that required paralell digital commands, such as switches, attenuators, phase shifters and IQ Modulators.38
PDC-42G-1850M-600M-20-292FSFPDC-42G-1850M-600M-20-292FSF ImagePreliminaryPMI Model No. PDC-42G-1850M-600M-20-292FSF is a Dual Channel Down Converter Module that provides an 1850 MHz ±300 MHz IF output from a 42 GHz ±300 MHz input. This module provides a minimum 20 dB of gain with a minimum P1dB of +10 dBm. The PLO has an internal reference and lock detect TTL output is available at the D connector.63
PTRAN-100M18G-SFB-3UVPX-10HP-MAHPTRAN-100M18G-SFB-3UVPX-10HP-MAH ImageActivePMI Model No. PTRAN-100M18G-SFB-3UVPX-10HP-MAH is a transceiver covering the frequency range of 100 MHz to 18.0 GHz. The transceiver fits into a 3U open VPX form factor utilizing the high speed VITA 67 RF connector. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz range. It also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-way absorptive switch to select an input along with two 6-way switches allowing one of six filter paths to be chosen. A filter bank is used also on the transmit path with two 6-way switches allowing one of six filter paths to be chosen. The unit is made to attach to an FPGA controller card allowing for total solution in a 10HP (2") form factor.62
PLM-8G12G-STE-MCCP-PXIPLM-8G12G-STE-MCCP-PXI ImagePreliminaryPMI Model No. PLM-8G12G-STE-MCCP-PXI is a PXI RF Integrated Link Module for special test equipment. It is designed to operate over the 8.0 to 12.0 GHz frequency range. It employs directional couplers, power divider/combiners, a circulator, and extended range DLVA, a threshold detector, and a down link blanking switch. The threshold detector opens the blanking switch whenever an uplink signal is detected, preventing reflected signals at J3 from changing the level at the ERDLVA input.64
PTRAN-100M18G-SFB-3UVPX-MCU-MAHPTRAN-100M18G-SFB-3UVPX-MCU-MAH ImagePreliminaryPMI Model No. PTRAN-100M18G-SFB-3UVPX-MCU-MAH is a Transceiver covering the frequency range of 100 MHz to 18.0 GHz. The Transceiver fits into a 3U Open VPX form factor utilizing two four position high speed VITA 67 RF connectors. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz range. This unit also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion. A receive filter bank incorporates a 2-Way absorptive switch to select an input, along with two six way switches allowing one of six filter paths to be chosen. The unit includes a micro-controller allowing for ethernet control over the P1 connection and providing a total solution in a single backplane slot.65
PLM-8G12G-STE-MCCP-PRPLM-8G12G-STE-MCCP-PR ImagePreliminaryPMI Model No. PLM-8G12G-STE-MCCP-PR is a prototype "Proof of Concept" Link Module for special test equipment. It is designed to operate over the 8.0 to 12.0 GHz frequency range. It employs directional couplers, power divider/combiners, a circulator, and extended range DLVA, a threshold detector, and a down link blanking switch. The threshold detector opens the blanking switch whenever an uplink signal is detected, preventing reflected signals at J3 from changing the level at the ERDLVA input.66
PRX-20-1G18G-850M-SFFPRX-20-1G18G-850M-SFF ImageActivePMI Model No. PRX-20-1G18G-850M-SFF is a channelized receiver covering 1 to 18 GHz instantaneously in 20 channels. IF frequencies between 1 and 4.4 GHz are output and ready to be digitized. The receiver is designed to cover a 60 dB dynamic range using a built-in internal 10 MHz reference to lock the internal LO’s used in down-converting the signal into the necessary frequency bands. The reference is also output at a +20 dBm level to be used for synchronization. All of this state-of-the-art functionality is packaged in a 10” x 8” x 3” package consuming around 50 Watts of power.67
PIM-2D7G3D55G-3D55G4D4G-22DB-12VPIM-2D7G3D55G-3D55G4D4G-22DB-12V ImageActivePMI Model No. PIM-2D7G3D55G-3D55G4D4G-22DB-12V is an 850 MHz instantaneous bandwidth baseband module with an amplifier and bandpass filter with two independent outputs. Each band is an independent channel with a gain of 18 dB. This model covers 2.7 to 3.55 GHz and 3.55 to 4.4 GHz.70
PIM-11D2G18G-BPFPIM-11D2G18G-BPF ImageActivePMI Model No. PIM-11D2G18G-BPF has two separate 3.4 GHz passbands ranging from 11.2 to 14.6 GHz and 14.6 to 18.0 GHz. Each channel has an independent input and output contained within the same small universal mounting enclosure.68
PIM-4D4G11D2G-BPFPIM-4D4G11D2G-BPF ImageActivePMI Model No. PIM-4D4G11D2G-BPF has two separate 3.4 GHz passbands ranging from 4.4 to 7.8 GHz and 7.8 to 11.2 GHz. Each channel has an independent input and output contained within the same small universal mounting enclosure.69
PIM-1G1D85G-1D85G2D7G-22DB-12VPIM-1G1D85G-1D85G2D7G-22DB-12V ImageActivePMI Model No. PIM-1G1D85G-1D85G2D7G-22DB-12V is an 850 MHz instantaneous bandwidth baseband module with an amplifier and bandpass filter with two independent outputs. Each band is in independent channel with a gain of 18 dB. This model covers 1.0 to 1.85 GHz and 1.85 to 2.7 GHz.71
HBDFM-218-BD-DPHBDFM-218-BD-DP ImageActiveHBDFM-218-BD-DP, is a High Band Direction Finding Module from 2.0-18.0 GHz, Uni-Directional, Multi-Function Device that routes the signal present at the RF Input Connector through one of its four channels to the RF Output Connector, to amplitude modulate the input signal. The input and output ports can be switched to internal 50 Ohm terminations to ensure matched source and load impedance for interfacing devices during off-times and Isolation or VSWR tests.72
PEC-25-5R68R4-19LM-15-SFF-BITPEC-25-5R68R4-19LM-15-SFF-BIT ImageActivePMI Model No. PEC-25-5R68R4-19LM-15-SFF-BIT is an amplifier that was designed to provide ultra-flat gain response from 5.6 to 8.4GHz. This amplifier provides 25dB of gain and a limited output power of 19dBm ±2dBm. This amplifier contains integrated low-pass filters to suppress 2nd harmonics while in a limiting condition. A BIT "TTL" circuit is incorporated on the output of the amplifier in order to monitor the amplifiers output power level.74
PEC-35-614R5-VGC-SSPAPEC-35-614R5-VGC-SSPA ImageActiveThis amplifier was designed to support TWT manufactures and their need for custom SSPA's. One standard model is listed below, but we can build these to meet your custom requirement. PET Model No. PEC-35-614R5-VGC-SSPA provides 30 to 37dB of gain from 5.85 to 14.5GHz. The power output at 1dB compression is greater than 22dBm and 2nd harmonics are internally filtered to provide more than -30dBc rejection. An integrated linearized analog attenuator provides up to 35dB of gain control. Additional RF input and output ports are provided such that an external power linearizer can be installed in the system.77
PIA-BTFL-GPO-2CHPIA-BTFL-GPO-2CH ImageActivePMI Model No. PIA-BTFL-GPO-2CH is an dual channel integrated assembly that consists of a Bias-Tee, High Pass Filter, and Limiter. This compact module is supplied with field replaceable GPO connectors. The module is designed to be supplied either in hermetic or non-hermetic form. Order Option -HERM for hermetically sealed version.75
PEC-1D575G-1AFS-SFFPEC-1D575G-1AFS-SFF ImageActivePMI Model No. PEC-1D575G-1AFS-SFF is a multi-function, integrated module provides amplification and filtering within the GPS L1 frequency band of 1575.42MHz. Two input channels are switchable to a common output. This product is designed to handle exposure to extreme environmental conditions including airborne and launch rocket environments.76
PMC-3146514PMC-3146514 ImageActivePMI Model PMC-3146514 is an FPGA based Digital Matrix Switch Module.78
PEC-18-2D35G-1R75-9-SFF-BPF-HS-LMPEC-18-2D35G-1R75-9-SFF-BPF-HS-LM ImageActivePMI Model PEC-18-2D35G-1R75-9-SFF-BPF-HS-LM is an integrated module combining an input limiter, low noise amplifier, band pass filter, RF blanking switch and limiting output stage. The frequency passed is 2350 MHz with a 1dB bandwidth of 150 MHz. This model has a typical gain of 18 dB. The output power is limited to +2dBm maximum while the input can handle up to +30dBm CW.73
RFFD-618-730049RFFD-618-730049 ImageActivePMI Model No. RFFD-618-730049 is a 6 to 18 GHz low pass filter combined with a Schottky Biased Detector including a reverse voltage protection diode. A duplicate detector and protection diode is included for DC offset voltage compensation.79
PMIMA-26-4C-PD2-BPF-MPMIMA-26-4C-PD2-BPF-M ImagePreliminaryPMI Model No. PMIMA-26-4C-PD2-BPF-M is an integrated microwave assembly consisting of 4 independent channels. Each channel incorporates a 2-way power divider and a bandpass filter.80
PIMA-26-4C-PD2-BPF-LPIMA-26-4C-PD2-BPF-L ImageActivePMI Model No. PIMA-26-4C-PD2-BPF-L is an integrated microwave assembly consisting of 4 independent channels. Each channel incorporates a 2-way power divider and a bandpass filter.81
PEC-40-P2T-6G18G-2W-SFFPEC-40-P2T-6G18G-2W-SFF ImagePreliminaryPMI Model No. PEC-40-P2T-6G18G-2W-SFF is a 40 dB min. gain and 1 Watt P1dB amplifier followed by a SP2T switch that operates between the frequency range of 6.0 to 18.0 GHz.83
CS00248CS00248 ImageActivePMI Model No. CS00248 is a lo doubler module covering the frequency range of 3.6 to 13.3 GHz. The module takes an input frequency of 3.6 to 6.5 GHz and supplies an output of 3.6 to 13.3 GHz.14
PL-MCU-ENET-TTLPL-MCU-ENET-TTL ImagePreliminaryPMI Model No. PL-MCU-ENET-TTL is an 10/100 mB Ethernet Micro-Controller Test Box which allows for an Ethernet command to be sent and up to 18 parallel TTL output bits.59
PCAM-05G18G-INT-S5FPCAM-05G18G-INT-S5F ImageActivePMI Model No. PCAM-05G18G-INT-S5F integrated modules are built in sets of four, and are phase and amplitude matched to industry leading levels of ±10º and ±1.5 dB over the 0.5 to 18.0 GHz frequency range. Incorporating limiters, LNAs, switches, and variable digital attenuators, these units allow for high and low gain paths, a calibration input, and an auxiliary channel. A low noise figure and high output of +15 dBm OP1dB are achieved by utilizing system analysis software and in-house hybrid/MIC processes.16
PDC-200M18G-140M-CD-1PDC-200M18G-140M-CD-1 ImagePreliminaryPMI Model No. PDC-200M18G-140M-CD-1 is a 0.2 to 18.0 GHz, Down Converter Module. This unit down converts a 0.2 to 18.0 GHz, signal to 140 MHz through the use of an external LO signal. The module includes an LO amplifier and an IF output filter.15
