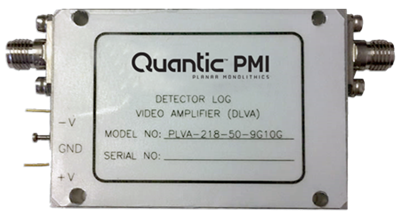

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 9 |
|---|
| Frequency Max (GHz): | 10 |
|---|
| TSS (dBm): | -42 Min |
|---|
| TSS (Measured): | -42 dBm Min |
|---|
| Log Slope (mV/dB): | 50 |
|---|
| Log Range (dBm): | -40 to +0 (Useful Range up to +5) |
|---|
| Log Linearity: | ±0.5 dB Max |
|---|
| Rise Time: | 20 ns Max |
|---|
| Recovery Time: | 150 ns Typ. 300 ns Max |
|---|
| Settling Time: | 45 ns Max |
|---|
| Power Supply: | +15 V @ 75 mA
-15 V @ 75 mA |
|---|
| Frequency Flatness: | ±1.0 dB |
|---|
| VSWR: | 3.0:1 Max |
|---|
| Video Load (Ohms): | 50 Min |
|---|
| Maximum Input Power (CW): | +15 dBm CW Max |
|---|
| Log Slope Accuracy: | ±4% of Average Slope |
|---|
| Temperature Stability: | ±1.0 dB Max (-54 ºC to +85 ºC) |
|---|
| Pulse Range: | 50 ns to CW |
|---|
| Video Output Level: | 0 to 2.5 V (50 Ohm Min load) |
|---|
| Connectors: | SMA female |
|---|
| Size: | 2.20" x 1.50" x 0.40" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
