Test Bench & Lab Use Amplifiers

Quantic PMI offers a new line of low-cost, exceptionally reliable amplifiers up to 40 GHz featuring built in 115/220 VAC, 60 Hz power supply for test bench and lab use applications. Designs can include any of our catalog Amplifiers or customer driven specifications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Features:

  • 115VAC, 60Hz Internal Power Supply
  • 90 to 100VAC power supplies for use in Japan is available
  • 220VAC with European Plug/Cord is available (Must specify plug type)
  • Integrated On/Off Switch
  • Fuse Protected
  • Available in test bench configuration or portable housing configuration.
  • High Reliability
  • 6' Power Cord Supplied
  • Fast Delivery
  • Low-Cost

Click here to view our product flyer.

Part NumberStatusFrequency MinFrequency MaxGainGain FlatnessNoise FigureOP1dBAC Voltage SupplyDC Voltage Supply
PTB-20-10G40G-5R5-20-220VAC-1U-292FF
Preliminary		Preliminary10 GHz40 GHz20 dB Min±3.5 dB Max5.5 dB Max up to 20 GHz+20 dBm Typ (10 to 18 GHz)
+19 dBm Typ (18 to 40 GHz)		220 VAC, 50 Hz
-
PTB-30-7G9G-5R0-20-120-240-VAC-SFF
Active		Active7.0 GHz9.0 GHz+30 dB Nom±1.5 dB Typ5.0 dB Max+20 dBm Min120-240 VAC, 47-63 Hz, 15 W Max
Supplied with fuse and 6 foot power cord		N/A
PTB-50-1G40G-12-292FF-DC12-220VAC
Active		Active1.0 GHz40.0 GHz50 dB Typ±2.5 dB Typ5.0 dB Typ Mid-Band+22 dBm Typ (1 to 18 GHz)
+18 dBm Typ (18 to 40 GHz)		220 to 230 VAC+12 VDC (External)
PTB-30-0R12-5R0-20-115VAC-NFF-2U
Active		Active0.1 GHz2.0 GHz30 dB min.±1.5 dB max.5.0 dB max.+20 dBm min.110 to 115 VAC, 60 HzN/A
PTB-35-120-5R0-10-115VAC-SFF-2U
Active		Active1.0 GHz20.0 GHz35 dB Min±2.5 dB Max5.5 dB Max+10 dBm Min110 to 115 VAC, 60 HzN/A
PTB-60-120-5R0-10-115VAC-SFF-2U
Active		Active1 GHz20 GHz60 dB Typ+/- 3.0 dB Max5.5 dB Max+10 dBm Min110-115 VAC, 60 HzN/A
PTB-60-1R018R0-4R5-22-115VAC-NFF
Active		Active1.0 GHz18.0 GHz60 dB typ.±1.75 dB typ.4.75 dB typ.+21 dBm typ.115 VACN/A
PTB-32-218-4R0-8-120VAC-SFF
Active		Active2.0 GHz18.0 GHz+28 dB min.±2.0 dB max.4.0 dB max.+8 dBm min.110 to 115 VAC, 60 HzN/A
PEC-50-0R118-6R5-18-120VAC-1U-SFF *
Active		Active0.1 GHz18 GHz50 dB Min±2.0 dB (Up to 55 dB Attenuation)6.5 dB Typ+14 dB Typ120 VAC, 50/60 HzN/A
PTB-27-0R1G6G-26-SFF-DC12-220VAC
Preliminary		Preliminary0.1 GHz6 GHz27 dB typ.±1.5 dB typ.5.0 dB typ.*+26 dBm min.220 to 230 VAC*+12 VDC
PLNA-30-0R5G8G-P1dB13-115VAC
Preliminary		Preliminary0.5 GHz8 GHz30 dB typ.±1.0 dB max.4.5 dB typ.+13 dB min.115 VACN/A
PLNA-30-10M6G-5VDC
Preliminary		Preliminary0.01 GHz6 GHz30 dB Typ±2.0 dB Max4.5 dB Typ, 5.25 dB Max+22 dB MinN/A5 VDC, 1000 mA, Positive Center
PTB-20-1040-5R0-20-220VAC-292FF
Preliminary		Preliminary10 GHz40 GHz+20 dB min.±2.0 dB max5.0 dB typ, 5.5 dB max.+10 dBm min., +15 dBm typ.220 VACN/A
PTB-20-1050-5R0-20-220VAC-240FF
Preliminary		Preliminary10 GHz50 GHz+20 dB min.±2.0 dB max5.0 dB typ, 5.5 dB max.+10 dBm min., +15 dBm typ.220 VACN/A
PTB-30-0R58R0-4R5-13-115VAC-NFF
Preliminary		Preliminary0.5 GHz8 GHz+30 dB typ±1.0 dB max4.5 dB typ+13 dBm min115 VAC, 60 HzN/A
PTB-30-1R06R0-1R5-22-100VAC-SFF
Preliminary		Preliminary1 GHz6 GHz+30 dB typ±1.5 dB max1.8 dB typ., 2.2 dB max.+22 dBm typ., +21 dBm min.100 VAC, 50 HzN/A
PTB-10-6G18G-2R5-15-220VAC-SFF
Preliminary		Preliminary6 GHz18 GHz+10 dBm min.±3.0 dB max2.5 dB typ.+15 dBm typ.220 to 230 VACN/A
PTB-20-6G18G-2R5-15-220VAC-SFF
Preliminary		Preliminary6 GHz18 GHz+20 dBm min.±3.0 dB max2.5 dB typ.+15 dBm typ.220 to 230 VACN/A
PTB-30-6G18G-2R5-15-220VAC-SFF
Preliminary		Preliminary6 GHz18 GHz+30 dBm min.±3.0 dB max2.5 dB typ.+15 dBm typ.220 to 230 VACN/A
PTB-30-28-5R0-20-115VAC-SFF
Active		Active2 GHz8 GHz+30 dB min±1.5 dB max5.0 dB max+20 dBm min115VAC, 60HzN/A
PTB-30-618-5R0-20-115VAC-SFF
Active		Active6 GHz18 GHz+30 dB min±1.5 dB max5.0 dB max+20 dBm min110 to 115VAC, 60HzN/A
PTB-60-2040-5R0-10-220VAC-292FF *
Active		Active20 GHz40 GHz+60 dB Typ±3.0 dB Max5.0 dB Typ - Measured 5.4 dB+10 dBm Min - Measured 11.0 dBm220 to 230 VACN/A
PTB-60-120-5R0-10-100VAC-SFF *
Active		Active1 GHz20 GHz+60 dB Typ±3.0 dB Max5.0 dB Typ - Measured 4.6 dB+10 dBm Min - Measured +10.7 dB90 to 100 VACN/A
PTB-60-2040-5R0-10-115VAC-292FF *
Active		Active20 GHz40 GHz+60 dB Typ±3.0 dB Max5.0 dB Typ - Measured 7.80 dB+10 dB Min - Measured +10.3 dBm115 VAC, 60 HzN/A
PTB-30-2040-5R0-10-100VAC-292FF *
Active		Active20 GHz40 GHz+30 dB Typ±2.0 dB Max5.0 dB Typ - Measured 5.6 dB+10 dBm Min - Measured 11.4 dBm90 to 100 VACN/A
PLNA-30-10M6G-P1dB22-120VAC
Active		Active0.01 GHz6 GHz30 dB Typ±2.0 dB Max4.5 dB Typ, 5.25 dB Max - Measured 4.9 dB+22 dB Min - Measured 22.33 dB110 VACNA
PTB-30-2040-5R0-10-115VAC-292FF *
Active		Active20 GHz40 GHz+30 dB Typ±2.0 dB Max5.0 dB Typ - Measured 6.14 dB+10 dB Min - Measured 10.8 dBm115 VAC, 60 Hz, * Supplied with fuse and 6 foot power cordN/A

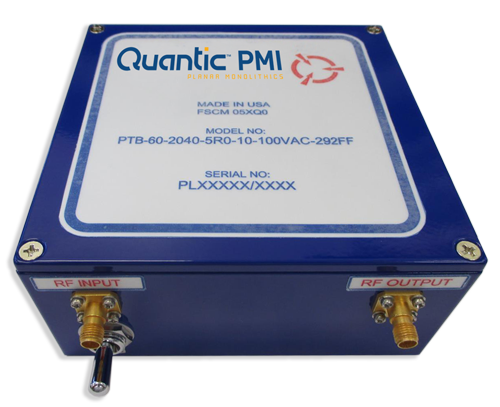

PTB-60-2040-5R0-10-100VAC-292FF *
Active		Active20 GHz40 GHz+60 dB Typ±3.0 dB Max5.0 dB Typ - Measured 5.2 dB+10 dBm Min - Measured 11.1 dBm90 to 100 VACN/A
PTB-35-120-5R0-10-115-VAC-SFF
Active		Active1 GHz20 GHz35 dB Typ±3.0 dB Typ5.0 dB Max+10 dBm Min - Measured =+10 dBm115 VAC, 60 Hz,
(Supplied with fuse and 6 foot power cord)		N/A
PTB-30-2040-5R0-10-220VAC-292FF *
Active		Active20 GHz40 GHz+30 dB Typ±2.0 dB Max5.0 dB Typ+10 dBm Min220 to 230 VACN/A
PTB-42-1G40G-12-292FF-DC12-220VAC *
Active		Active1 GHz40 GHz40 dB Typ±2.5 dB Max5.0 dB Typ, Mid-Band - Measured 4.64 dB+22 dBm Typ (1 to 18 GHz),
+18 dBm Typ (18 to 40 GHz)		220 to 230 VAC+12 VDC
PTB-60-120-5R0-10-220VAC-SFF *
Active		Active1 GHz20 GHz+60 dB typ±3.0 dB max5.0 dB typ. - Measured 4.7 dB+10 dBm min. - Measured +13 dBm220 to 230 VACN/A
PTB-42-1G40G-12-292FF-DC12-100VAC *
Active		Active1 GHz40 GHz40 dB Typ±2.5 dB Max5.0 dB Typ, Mid-Band - Measured 4.64 dB+22 dBm Typ (1 to 18 GHz),
+18 dBm Typ (18 to 40 GHz)		90 to 100 VAC+12 VDC
PTB-60-120-5R0-10-115-VAC-SFF Rev. B *
Active		Active1 GHz20 GHz60 dB Typ±3.0 dB Typ5.0 dB Max - Measured 3.8 dB+10 dBm Min - Measured +10.3 dBm115 VAC, 60 Hz, (Supplied with fuse and 6 foot power cord)N/A
PLNA-35-100M18G-P1dB24-120VAC
Active		Active0.1 GHz18 GHz35 dB Min±2.5 dB Typ3.5 dB Typ25.0 dBm Typ,
22.0 dBm Min		120 VACN/A
PTB-42-1G40G-12-292FF-DC12 *
Active		Active1 GHz40 GHz40 dB Typ±2.5 dB Typ5.0 dB Typ mid-band - Measured 4.64 dB+22 dBm Typ (1 to 18 GHz)
- Measured +21.5 dBm Max, +19.5 dBm Min
+18 dBm Typ (18 to 40 GHz)
- Measured +21 dBm Max, +16 dBm Min		120 VAC - Measured 120 VAC+12 VDC - Measured +12 VDC
PTB-30-0R54-5R0-20-115VAC-SFF
Active		Active0.5 GHz4 GHz+30 dB±1.5 dB Max5.0 dB Max+20 dBm Min110-115 VAC 60 HzN/A
PTB-30-0R12-5R0-20-115VAC-SFF
Active		Active0.1 GHz2 GHz+30 dB±1.5 dB max.5.0 dB max.+20 dBm min.110-115 VAC 60 HzN/A
PTB-60-120-5R0-10-115VAC-SFF
Active		Active1 GHz20 GHz+60dB Typ.±3.0dB Typ.5.0dB Max.+10dBm Min.115 VAC, 60 HzN/A
