PLVA-6G18G-40-1 Active

Detector Log Video Amplifier (DLVA)

PLVA-6G18G-40-1
Product Feature
Additional Documents

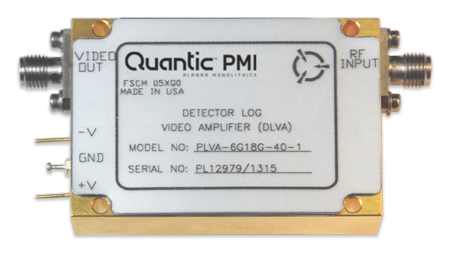

Quantic PMI Model PLVA-6G18G-40-1 is a Detector Log Video Amplifier (DLVA) designed to operate between the 6 to 18 GHz frequency range that employs planar diode detectors and integrated video circuitry for high speed performance and outstanding reliability. Superior construction using state-of-the-art MIC/MMIC technology. Package measures 2.2" x 1.50" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): No
Frequency Min (GHz): 6
Frequency Max (GHz): 18
TSS (dBm): -42 Min
Log Slope (mV/dB): 50 (±4% of Average Slope)
Log Range (dBm): -40 to 0 Min
Rise Time: 20 ns Max
Recovery Time: 150 ns Typ, 300 ns Max
Settling Time: 45 ns Max
Frequency Flatness: ±1.0 dB Max
VSWR: 3.0:1 Max
Temperature Stability: ±1.0 dB Max (-40 °C to +85 °C)
DC Supply Voltage: +12 V @ 75 mA Max
-12 V @ 75 mA Max
Useful Range: -40 to +5 dBm
Log Linearity Error: ±0.5 dB Max (Room Temperature)
±1.0 dB average (-40 °C to +85 °C)
Pulse Response: 50 ns to CW
Max RF Input: +15 dBm
Size: 2.20" x 1.50" x 0.40"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
