Switches - Solid State

Quantic PMI offers a large portfolio of Solid-State Switches covering the DC to 70 GHz frequency range.  These designs feature low insertion loss, high isolation, and fast switching speed in a slimline package size.  Available TTL compatible driver options for ease of system integration.   Custom designs can be supplied using any of our catalog or customer driven specifications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Features:

  • Ultra-Broadband Performance
  • Ultra-High Isolation
  • Very Low Loss
  • Ultra-High Speed
  • Ultra-Low Power Consumption

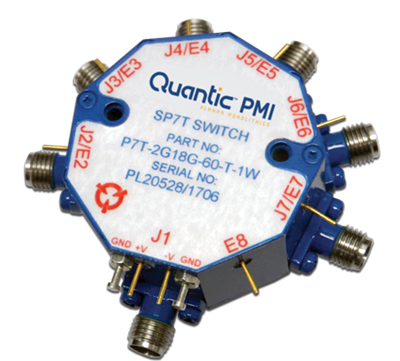

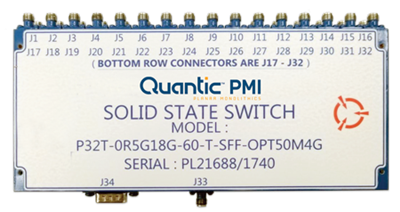

  • SPST - SP64T
  • Reflective or Absorptive Available
  • Very Small Packaging
  • Each unit has a unique serial number and date code.
  • Swept Data with each unit
  • Summary data sheet with each unit

Options:

  • Ultra-Low Video Transient models available
  • High Input Power models available
  • Any package or form factor can be supplied (Usually without a NRE charge)
  • Connector types can be specified
  • Frequency ranges can be optimized to meet your requirements
  • Operating temperature ranges from -54 to +85 °C
  • Hermetic Sealing is available
  • Military or Space Screening is available
  • Amplitude and Phase matching is available


Application Notes: (Click to view)

Application Note - How to specify PIN Diode Switches

Switch Products Overview Book (12mb)

Switching Speed Definition Graph
