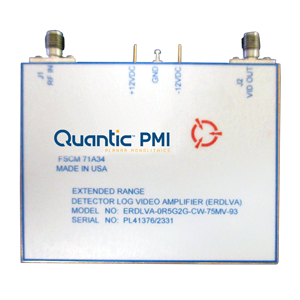

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | Yes |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 2 |
|---|
| TSS (dBm): | -42 (8.5 dBV SNR) |
|---|
| Log Slope (mV/dB): | 75 ± 10 |
|---|
| Log Range (dBm): | -40 to +20 |
|---|
| Settling Time: | ±0.5 dB within 25 ns from 90% |
|---|
| Frequency Flatness: | ±1.5 dB Max at -20 dBm |
|---|
| Video Bandwidth: | 20 MHz over 60 dB logging range |
|---|
| Video Load (Ohms): | 93 |
|---|
| Input Power Handling: | CW RF Input Levels of +23 dBm Min |
|---|
| Overshoot: | 1 dB during first 50 ns |
|---|
| Throughput Delay Time: | 30 ns Max 10% RF to 10% Video |
|---|
| Warm Up Time: | 10 sec |
|---|
| Input VSWR: | <2.5:1 Max UP to -20 dBm input
<3.0:1 Max up to +15 dBm input |
|---|
| Pulse Droop: | 1 dB on pulses up to 250 µs |
|---|
| Monotonic Dynamic Range: | ±75 mV, -40 dBm to + 20 dBm |
|---|
| Log Slope Linearity: | -40 to +20 dBm ±1.00 dB Max at 25 °C,
±1.5 dB Max over temperature |
|---|
| Rise Time and Recovery Time: | Rise Time: 25 ns Max
Recovery Time: 500 ns |
|---|
| Trailing Edge Monotonicity: | ± 2 dB over full logging range |
|---|
| Pulse Width: | within 10 ns of RF PW @ -5 dB from peak |
|---|
| Video Output Level Average @ -40 dBm Over Frequency: | 300 ± 50 mV @ 25°C |
|---|
| Log Video Output Voltage Range: | 300 mV to 4800 mV Nom, 0 to 5090 mV Max |
|---|
| Baseline DC Offset: | 0 to 125 mV Max |
|---|
| Baseline Noise: | 62 mV to 102 mV RMS |
|---|
| Load Stability: | No oscillations 93 Ohm load and cable |
|---|
| Input Impedance: | 50 Ohm Nom |
|---|
| Voltages and Current (No Signal): | +12.0 V +5% Max Unregulated 0.25 A Max
-12.0 V +5% Max Unregulated 0.25 A Max |
|---|
| Noise: | 200 mV P-P Switching Power
Supply Noise. 20 to 100 KHz |
|---|
| Supply Voltage Fold Back: | No damage |
|---|
| Functional Shock: | 40 G (6 Shocks PER Axis, 6 to 9 m s Duration |
|---|
| Ripple: | Power supply ripple of ±1 % from DC to 1 MHz on all power lines |
|---|
| Size: | 2.68" x 2.30" x 0.50" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -25 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 °C to +85 °C |
|---|
| Humidity: | To 100% +30 °C to +55 °C with Condensation, 240 HR Exposure |
|---|
| Vibration: | 0.2" (Double Amplitude) 5-14 Hz, 2.0 G 14 to 33 Hz, 0.036" (Double Amplitude) 33 to 52 Hz, 5.0 G 52 to 500 Hz |
|---|
| Altitude: | Non-Operating: Sea Level to 40, 000 FT ASL.
Operating: Sea Level to 20, 000 FT ASL |
|---|
| Fungus: | No Fungus Nutrient Materials, PCB'S to be Humisealed |
|---|
