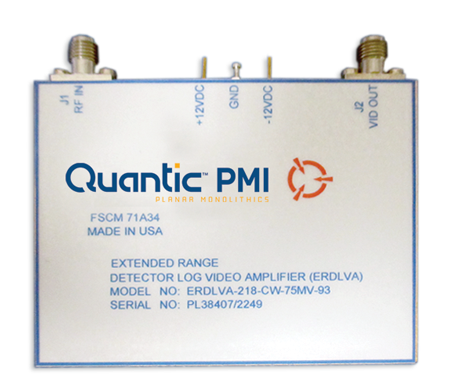

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | Yes |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -42 (8.5 dBV SNR) |
|---|
| Log Slope (mV/dB): | 75 ± 10 |
|---|
| Log Range (dBm): | -40 to +20 |
|---|
| Settling Time: | ±0.5 dB within 25 ns from 90% |
|---|
| Frequency Flatness: | ±1.5 dB Max @ -20 dBm |
|---|
| Video Bandwidth: | 20 MHz over 60 dB logging range |
|---|
| Video Load Impedance: | 93 Ohm ±2% |
|---|
| Video Load (Ohms): | 93 |
|---|
| Input Power Handling: | CW RF Input Levels of +23 dBm Min |
|---|
| Overshoot: | 1 dB during first 50 ns |
|---|
| Throughput Delay Time: | 30 ns Max 10% RF TO 10% Video |
|---|
| Warm Up Time: | 10 sec |
|---|
| Input VSWR: | <2.5:1 Max up to -20 dBm Input
<3.0:1 Max up to +15 dBm Input |
|---|
| Pulse Droop: | 1 dB on pulses up to 250 µs |
|---|
| Monotonic Dynamic Range: | ±75 mV from -40 dBm to +20 dBm |
|---|
| Log Slope Linearity: | -40 to +20 dBm ±1.00 dB Max @25°C,
±1.5 dB Max over temperature |
|---|
| Rise Time and Recovery Time: | Rise Time 25 ns Max
Recovery Time 500 ns |
|---|
| Trailing Edge Monotonicity: | ± 2 dB over full logging range |
|---|
| Negative Going Output: | Clamped at -0.40 V |
|---|
| Pulse Width: | within 10 ns of RF pulse width @ -5 dB from peak |
|---|
| Video Output Level Average @ -40 dBm Over Frequency: | 300 ± 50 mV |
|---|
| Baseline DC Offset: | 0 to 125 mV Max |
|---|
| Baseline Noise: | 62 mV to 102 mV RMS |
|---|
| Load Stability: | No oscillations 93 Ohm Load and cable |
|---|
| Input Impedance: | 50 Ohm Nom |
|---|
| Voltages and Current (No Signal): | +12 V +5% Max unregulated 0.25 A Max
-12.0 V +5% Max unregulated 0.25 A Max |
|---|
| Supply Voltage Fold Back: | No damage |
|---|
| Functional Shock: | 40 G (6 Shocks per axis, 6 to 9 ms duration |
|---|
| Ripple: | Power Supply Ripple of ±1 % from DC to 1 MHz on all Power Lines |
|---|
| Size: | 2.68" x 2.30" x 0.50" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -25 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 °C to +85 °C |
|---|
| Humidity: | 100% from +30 °C to +55°C with condensation, 240 HR exposure |
|---|
| Vibration: | 0.2"(Double Amplitude) 5-14 Hz, 2.0 G 14 to 33 Hz, 0.036"(Double Amplitude) 33 to 52 Hz, 5.0 G 52 to 500 Hz |
|---|
| Random Vibration: | 0.04 g2 / Hz from 60 TO 35 Hz, decreasing @ 3 dB/ octave from 60 to 20 Hz and 350 Hz to 2 kHz, 6 g total |
|---|
| Altitude: | Non-Operating: Sea Level to 40, 000 FT ASL.
Operating: Sea Level to 20, 000 FT ASL |
|---|
| Fungus: | No Fungus Nutrient Materials, PCB'S to be hum sealed |
|---|
