| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -65 Min (8 to 18 GHz) |
|---|
| Log Slope (mV/dB): | 20 ± 10% |
|---|
| Log Range (dBm): | -65 to +5 |
|---|
| Log Linearity: | ±1.75 dB Max (-65 dBm to +5 dBm) |
|---|
| Rise Time: | 20 ns Max |
|---|
| Recovery Time: | 200 ns Max (-65 to +5 dBm) |
|---|
| Power Supply: | +15 V @ 600 mA Max |
|---|
| Frequency Flatness: | ±2.0 dB Typ (0.5 to 18 GHz) |
|---|
| VSWR: | 3.0:1 |
|---|
| VSWR (Measured): | 3.0:1 (0.5 to 18 GHz @ -20 dBm) |
|---|
| Video Load (Ohms): | 50 ± 10% |
|---|
| Log Temperature Stability: | ±1.75 dB (0 to 60 ºC) |
|---|
| Dynamic Range: | -65 to +5 dBm |
|---|
| Limited IF Output: | +10 dBm ±2.5 dB Typ |
|---|

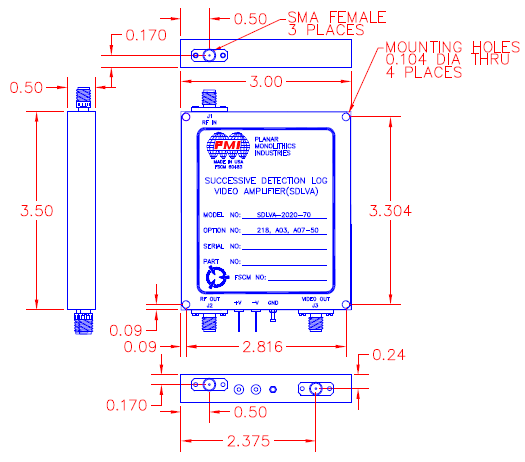

| Size: | 3.00" x 3.5" x 0.5" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +100 ºC |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
