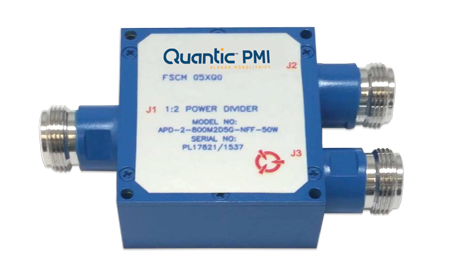

Power Dividers & Combiners

Quantic PMI offers the highest quality power dividers and power combiners for commercial and military applications in the frequency range of a few MHz to 45 GHz.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Features:

  • Low Loss
  • High Isolation
  • Excellent Amplitude Balance
  • Excellent Phase Balance
  • Small Size

Options:

  • Hermetic Sealing
  • Military or Space Screening
  • Custom Packaging

Part NumberStatusTypeFrequency MinFrequency MaxIsolationInsertion Loss
APD-4-0D3G1G-NFF
Preliminary		Preliminary4-Way0.3 GHz1 GHz18 dB Min1 dB Max
(Above 6.02 dB Split)
APD-4-15G16G-SFF
Preliminary		Preliminary4-Way15 GHz16 GHz20 dB Min1 dB Max
(Above 6.02 dB split)
APD-4-618-30W-SFF
Active		Active4-Way6 GHz18 GHz18 dB Min1.1 dB Max
APD-2-2G4G-40W-SFF
Preliminary		Preliminary2-Way2 GHz4 GHz23 dB Min0.25 dB Max
APD-8-2G4G-SMA-30W
Preliminary		Preliminary8-Way2 GHz4 GHz22 dB Min0.6 dB Max (Above 9.03 dB Split)
APD-2-05265-30W-SFF
Preliminary		Preliminary2-Way0.5 GHz26.5 GHz16 dB Min2.4 dB Max
(Above 3.01 dB split)
APD-2-2200M2300M-30W-SFF
Preliminary		Preliminary2-Way2.2 GHz2.3 GHz20 dB min0.4 dB max (Above 3.01 dB Split)
APD-2-8G8R5G-30W-SFF
Preliminary		Preliminary2-Way8 GHz8.5 GHz18 dB Min0.5 dB Max (Above 3.01 dB Split)
APD-2-25G27G-20W-292FF
Preliminary		Preliminary2-Way25 GHz27 GHz17 dB Min1.1 dB Max
APD-3-6G18G-SFF
Preliminary		Preliminary3-Way6 GHz18 GHz16 dB Min1.0 dB Max (Above 4.77 dB Split)
APD-2-0R9G6G-30W-SFFPreliminary2-Way0.9 GHz6.0 GHz18 dB min.0.5 dB max. (Above 3.01 dB Split)
APD-6-0R9G6G-30W-SFFPreliminary6-Way0.9 Ghz6.0 GHz18 dB MINIMUM1.8 dB MAXIMUM (ABOVE 7.78 dB SPLIT)
APD-2-2G8G-SFF-30WPreliminary2-Way2.0 GHz8.0 GHz20 dB MIN0.6 dB MAX (ABOVE 3.01 dB SPLIT)
APD-8-5G18G-SFF-30WPreliminary8-Way5 GHz18 GHz15 dB min2.0 dB max (Above 9.03 dB Split)
APD-4-20M6G-24V
Preliminary		Preliminary4-Way20 MHz6.0 GHz
-
-
APD-2-1G40G-292FF
Preliminary		Preliminary2-Way1.0 GHz40.0 GHz16 dBm Min3.4 dB max. (Above 3.01 dB Split)
APD-4-1G40G-292FF
Preliminary		Preliminary4-Way1.0 GHz40.0 GHz14 dB Min6.0 dB Max
APD-2-1G18G-SFF
Preliminary		Preliminary2-Way1.0 GHz18.0 GHz18 dB Min1.4 dB Max. (Above 3.01 dB Split)
APD-2-12-NFF
Preliminary		Preliminary2-Way1.0 GHz2.0 GHz18 dB Min0.4 dB Max (ABOVE 3.01 dB SPLIT)
APD-2-2D93D5-40W-SFF
Preliminary		Preliminary2 Way2.9 GHz3.5 GHz23 dB Min0.25 dB Max
APD-8-2D9G3D5G-SMA-40W
Preliminary		Preliminary8-Way2.9 GHz3.5 GHz22 dB Min0.6 dB Max (Above 9.03 dB Split)
APD-8-3D13D5-40W-SFF
Active		Active8-Way3.1 GHz3.5 GHz23 dB min.0.6 dB max.
APD-2-90M500M-SFF
Preliminary		Preliminary2-Way0.09 GHz0.5 GHz21 dB Min0.6 dB Max
APD-2-90M500M-NFF
Preliminary		Preliminary2-Way0.09 GHz0.5 GHz21 dB Min0.6 dB Max
APD-4-3-292FF
Preliminary		Preliminary4 Way2.0 GHz18.0 GHz22 dB Min6.0 dB THEORETICAL SPIT
1.0 dB Max
APD-4-3-292FF-HERM
Preliminary		Preliminary4 Way2.0 GHz18.0 GHz22 dB Min6.0 dB THEORETICAL SPLIT
1.0 dB Max
APD-16-8G12G-SFF-30W
Preliminary		Preliminary16-Way8.0 GHz12.0 GHz16 dB Min1.8 dB Max (Above 12.04 dB split)
APD-2-1G50G-24FF
Preliminary		Preliminary2-Way1.0 GHz50.0 GHz12 dB Min5.4 dB Max (Above 3.0 dB Split)
APD-4-400M13G-SFF-30W
Preliminary		Preliminary4-Way0.4 GHz13 GHz16 dB Min3.0 dB Max (ABOVE 6.02 dB SPLIT)
APD-4-400M8G-SFF-30W
Preliminary		Preliminary4-Way0.4 GHz8 GHz16 dB Min3.0 dB Max (ABOVE 6.02 dB SPLIT)
APD-4-2G2R5G-SFF-20W
Preliminary		Preliminary4-Way2.0 GHz2.5 GHz20 dB Min0.6 dB Max (ABOVE 6.02 dB SPLIT)
APD-8-3G65R6G5R-SMA-30W
Active		Active8-Way3.65 GHz6.5 GHz17 dB Min0.8 dB Max (Above 9.03 dB Split)
APD-8-4G8G-SMA-30W
Active		Active8-Way4.0 GHz8.0 GHz17 dB Min1.0 dB Max (Above 9.03 dB split)
PD-16-20M6G-SFF
Preliminary		Preliminary16-Way0.02 GHz6 GHz9 dB MinAbove 12 dB Theoretical Loss 16.0 dB Max
APD-2-1G4G-SMA-30W
Preliminary		Preliminary2-Way1.0 GHz4.0 GHz20 dB Min0.5 dB Max (ABOVE 3.01 dB SPLIT)
APD-8-1G4G-SMA-30W
Preliminary		Preliminary8 Way1.0 GHz4.0 GHz20 dB Min1.4 dB Max (Above 9.03 dB split)
APD-8-0R518G-SFF-MS
Active		Active8-Way0.5 GHz18 GHz0.5 to 1 GHz – 10 dB Typ
1 to 2 GHz – 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ		0.5 to 1 GHz – 2.0 dB Max
1 to 2 GHz – 2.2 dB Max
2 to 8 GHz - 2.5 dB Max
8 to 18 GHz - 5.2 dB Max
APD-8-0R518G-SFF-MS-HERM
Active		Active8-Way0.5 GHz18 GHz0.5 to 1 GHz – 10 dB Typ
1 to 2 GHz – 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ		0.5 to 1 GHz – 2.0 dB Max
1 to 2 GHz – 2.2 dB Max
2 to 8 GHz - 2.5 dB Max
8 to 18 GHz - 5.2 dB Max
APD-4-500M18G-SFF-30W-OPT8
Preliminary		Preliminary4-Way0.5 GHz8.0 GHz12 dB Min4.0 dB Max
APD-8-2G12G-SFF-MS-HERM
Active		Active8-Way2 GHz12 GHz2 to 12 GHz - 20 dB Typ2 to 8 GHz - 2.5 dB Max
8 to 12 GHz - 3.2 dB Max
APD-16-0R53G-SMA
Preliminary		Preliminary16-Way0.5 GHz3.0 GHz18 dB Min2.6 dB Max (Above 12.04 dB Split)
APD-2-DC1G-NFF
Preliminary		Preliminary2-WayDC1.0 GHz-0.8 dB MAX (Above 6.02 dB Split)
APD-4-800M2D5G-NFF-30W
Preliminary		Preliminary4-Way0.8 GHz2.5 GHz22 dB Min0.8 dB Max (Above 6.02 dB Split)
APD-4-618-SFF-HERM
Preliminary		Preliminary4-Way1.0 GHz18.0 GHz12 dB Typ (1.0 - 2.0 GHz)
18 dB Typ (2.0 - 18.0 GHz)		2.4 dB Typ
3.0 dB Max
APD-2-500M40G-292FF
Preliminary		Preliminary2-Way0.5 GHz40 GHz15 dB Min6.0 dB Max (Above 3.01 dB Split)
APD-2-812D4-30W-SFF
Active		Active2 Way8 GHz12.4 GHz20 dB Min0.4 dB Max (Above 3.01 dB split)
APD-2-29635-292FF
Preliminary		Preliminary2 Way2.9 GHz6.35 GHz20 dB MIN1.0 dB MAX
APD-2-3336-SFF
Preliminary		Preliminary2 Way33 GHz36 GHz16dB MIN1.30dB (Above 3.01dB Split) MAX
APD-2-192212-SFF
Active		Active2-Way19.2 GHz21.2 GHz20 dB Min1.0 dB (Above 3.01 dB Split) Max
APD-2-2G18G-NFF
Preliminary		Preliminary2-Way2 GHz18 GHz17 dB MINIMUM1.25 dB Max
APD-4-2G18G-NFF
Preliminary		Preliminary4-Way2 GHz18 GHz17 dB MINIMUM1.95 dB MAXIMUM (ABOVE 3.01 dB SPLIT)
APD-8-2G18G-NFF
Preliminary		Preliminary8-Way2 GHz8 GHz16 dB MINIMUM2.9 dB MAXIMUM (ABOVE 9.03 dB SPLIT)
APD-2-3G45G-20W-24FF
Preliminary		Preliminary2-Way3.0 GHz45 GHz15 dB Min2.0 dB Max
APD-8-2G18G-292FF-MS
Preliminary		Preliminary8-Way2.0 GHz18.0 GHz2 to 8 GHz: 20 dB Typ
8 to 18 GHz: 20 dB Typ		2 to 8 GHz: 2.5 dB Max
8 to 18 GHz - 5.2 dB Max
APD-8-0R523G-292FF-MS
Active		Active8-Way0.5 GHz23 GHz0.5 to 1 GHz – 10 dB Typ
1 to 2 GHz – 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 22 GHz - 15 dB Typ
22 to 23 GHz - 10 dB Typ		0.5 to 1 GHz – 2.0 dB Max
1 to 2 GHz – 2.2 dB Max
2 to 8 GHz - 2.5 dB Max
8 to 18 GHz - 5.2 dB Max
18 to 22 GHz - 6.5 dB Max
22 to 23 GHz - 8.0 dB Typ
APD-8-DC23G-292FF
Active		Active8-WayDC23.0 GHz22 to 23 GHz - 10 dB Typ.
18 to 22 GHz - 15 dB Typ.
8 to 18 GHz - 20 dB Typ
2 to 8 GHz - 20 dB Typ.
1 to 2 GHz - 10 dB Typ .
0.5 to 1 GHz - 10 dB Typ.
100 to 500 MHz - 5.dB Typ.
40 to 100 MHz - 7 dB Typ.
10 to 40 MHz - 12 dB Typ.		22 to 23 GHz - 7.0 dB Max.
18 to 22 GHz - 5.0 dB Max.
8 to 18 GHz - 3.2 dB Max.
2 to 8 GHz - 2.0 dB Max.
1 to 2 GHz - 2.0 dB Max.
0.5 to 1 GHz - 2.0 dB Max.
300 to 500 MHz - 1.5 dB Max.
200 to 300 MHz - 2.6 dB Max.
100 to 200 MHz - 3.2 dB Max.
80 to 100 MHz - 4.0 dB Max.
20 to 80 MHz -4.5 dB Max.
10 to 20 MHz - 5.0 dB Max.
APD-16-0R518-292FF
Active		Active16-Way0.5 GHz18.0 GHz0.5 to 1 GHz - 10 dB Typ
1 to 2 GHz - 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ		0.5 to 1 GHz - 2.0 dB Max
1 to 2 GHz - 3.0 dB Max
2 to 8 GHz - 3.0 dB Max
8 to 18 GHz - 5.0 dB Max
APD-16-218-292FF
Active		Active16-Way2.0 GHz18.0 GHz2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ		2 to 8 GHz - 3.0 dB Max
8 to 18 GHz - 5.0 dB Max
APD-8-0R518G-292FF-MS
Active		Active8-Way0.5 GHz18.0 GHz0.5 to 1 GHz – 10 dB Typ
1 to 2 GHz – 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ		0.5 to 1 GHz – 2.0 dB Max
1 to 2 GHz – 2.2 dB Max
2 to 8 GHz - 2.5 dB Max
8 to 18 GHz - 5.2 dB Max
APD-16-0R523G-292FF
Active		Active16-Way0.5 Ghz23.0 GHz0.5 to 1 GHz - 10 dB Typ
1 to 2 GHz - 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 22 GHz - 15 dB Typ
22 to 23 GHz - 10 dB Typ		0.5 to 1 GHz - 2.0 dB Max
1 to 2 GHz - 3.0 dB Max
2 to 8 GHz - 3.0 dB Max
8 to 18 GHz - 5.0 dB Max
18 to 22 GHz - 7.0 dB Max
22 to 23 GHz - 7.5 dB Max
APD-8-2G18G-292FF
Active		Active8-Way2.0 GHz18.0 GHz2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ		2 to 8 GHz - 2.0 dB Max
8 to 18 GHz - 3.2 dB Max
APD-8-1G18G-292FF
Active		Active8-Way1.0 GHz18.0 GHz1 to 2 GHz - 10 dB Typ
2 to 8 GHz -20 dB Typ
8 to 18 GHz - 20 dB Typ		2 to 8 GHz - 2.0 dB Max
8 to 18 GHz - 3.2 dB Max
APD-8-2G20G-292FF
Active		Active8-Way2.0 GHz20.0 GHz2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 20 GHz - 15 dB Typ		2 to 8 GHz - 2.0 dB Max
8 to 18 GHz - 3.2 dB Max
18 to 20 GHz - 5.0 dB Max
APD-8-0R518G-292FF
Active		Active8-Way0.5 GHz18.0 GHz0.5 to 1 GHz - 10 dB Typ
1 to 2 GHz -10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ		0.5 to 1 GHz -2.0 dB Max
1 to 2 GHz - 2.0 dB Max
2 to 8 GHz - 2.0 dB Max
8 to 18 GHz - 3.2 dB Max
APD-8-0R520G-292FF
Active		Active8-Way0.5 GHz20.0 GHz0.5 to 1 GHz-10 dB Typ
1 to 2 GHz - 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 20 GHz - 15 dB Typ		0.5 to 1 GHz - 2.0 dB Max
1 to 2 GHz - 2.0 dB Max
2 to 8 GHz - 2.0 dB Max
8 to 18 GHz - 3.2 dB Max
18 to 20 GHz - 5.0 dB Max
APD-8-1G20G-292FF
Active		Active8-Way1.0 GHz20.0 GHz1 to 2 GHz - 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 20 GHz - 15 dB Typ		1 to 2 GHz - 2.0 dB Max
2 to 8 GHz - 2.0 dB Max
18 to 20 GHz - 5.0 dB Max
APD-8-0R523G-292FF
Active		Active8-Way0.5 GHz23 GHz0.5 to 1 GHz – 10 dB Typ
1 to 2 GHz – 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 22 GHz - 15 dB Typ
22 to 23 GHz - 10 dB Typ		0.5 to 1 GHz – 2.0 dB Max
1 to 2 GHz – 2.0 dB Max
2 to 8 GHz - 2.0 dB Max
8 to 18 GHz - 3.2 dB Max
22 to 23 GHz - 7.0 dB Max
PD-10M1G-4-SFF
Active		Active4-Way0.01 GHz1 GHz+20 dB Typical, +16 dB Minimum1.5 dB Typical (Above 6 dB Theoretical)
PD-10M1G-2-SFF
Active		Active2-Way0.01 GHz1 GHz+20 dB Typical, +18 dB Minimum1.0 dB Typical (Above 3 dB Theoretical)
APD-2-226-SMP
Preliminary		Preliminary2-Way2.0 GHz26.0 GHz20 dB Typ.
14 dB Min.		3.0 dB Max.
APD-2-26-SMP
Preliminary		Preliminary2-Way2 GHz6 GHz20 dB Typical, 14 dB Minimum.1 dB Max
APD-2-0514
Preliminary		Preliminary2-Way0.5 GHz14.0 GHz18.0 dB typ. 17.0 dB min.0.5 GHz TO 8.0 GHz = 0.8 dB 8.0 GHz TO 14.0 GHz = 1.8 dB
APD-2-1218-292FF
Active		Active2-Way12.0 GHz18.0 GHz26 dB Typ, 24 dB Min1.8 dB Max
APD-2-1226D5-292FF
Active		Active2-Way12.0 GHz26.5 GHz20 dB typ., 17 dB Min3.0 dB Max
APD-2-1826D5-292FF
Active		Active2-Way18.0 GHz26.5 GHz20 dB Typ, 17 dB Min3.0 dB Max
APD-2-48-292FF
Active		Active2-Way4.0 GHz8.0 GHz20 dB Typ, 17 dB Min1.2 dB Max
APD-2-612-292FF
Active		Active2-Way6.0 GHz12.0 GHz20 dB Typ, 17 dB Min1.4 dB Max
APD-2-620-292FF
Active		Active2-Way6.0 GHz20.0 GHz20 dB Typ, 17 dB Min2.2 dB Max
APD-2-618-292FF
Active		Active2-Way6.0 GHz18.0 GHz20 dB Typ, 17 dB Min1.8 dB Max
APD-2-812-292FF
Active		Active2-Way8.0 GHz12.0 GHz20 dB Typ, 17 dB Min1.4 dB Max
APD-2-1D527-292FF
Active		Active2-Way1.5 GHz27.0 GHz20 dB Typ, 10 dB Min3.2 dB Max
APD-2-24-292FF
Active		Active2-Way2.0 GHz4.0 GHz20 dB Typ, 14 dB Min1.0 dB Max
APD-2-26-292FF
Active		Active2-Way2.0 GHz6.0 GHz20 dB Typ, 14 dB Min1.0 dB Max
APD-2-226-292FF
Active		Active2-Way2.0 GHz26.0 GHz20 dB Typ, 14 dB Min3.0 dB Max
APD-2-226D5-292FF
Active		Active2-Way2.0 GHz26.5 GHz13 dB Min, 20 dB Typ3.0 dB Max
APD-2-218-292FF
Active		Active2-Way2.0 GHz18.0 GHz20 dB Typ, 13 dB Min1.8 dB Max
APD-2-38-SFF-10W
Preliminary		Preliminary2-Way3.0 GHz8.0 GHz20 dB min.0.65 dB max. (Above 3.01 dB Split)
APD-2-0D52D5-TNC-50W
Preliminary		Preliminary2-Way0.5 GHz2.5 GHz20 dB min.0.9 dB max. (Above 3.01 dB Split)
APD-4-0D52D5-TNC-30W
Preliminary		Preliminary4-Way0.5 GHz2.5 GHz18 dB min.1.6 dB max. (Above 6.02 dB Split)
APD-8-0D52D5-TNC-30W
Preliminary		Preliminary8-Way0.5 GHz2.5 GHz18 dB min.2.6 dB max. (Above 9.03 dB Split)
APD-4-218-292FF
Active		Active4-Way2.0 GHz18.0 GHz18 dB Max2.4 dB Typ, 3.0 dB Max
APD-4-118-292FF
Active		Active4-Way1.0 GHz18.0 GHz12 dB Typ (1.0 to 2.0 GHz)
18 dB Typ (2.0 to 18.0 GHz)		2.4 dB Typ, 3.0 dB Max
APD-4-122-292FF
Active		Active4-Way1.0 GHz22.0 GHz12 dB Typ (1.0 to 2.0 GHz)
18 dB Typ (2.0 to 22.0 GHz)		3.0 dB Max (1.0 to 18.0 GHz)
3.5 dB Max (18.0 to 22.0 GHz)
APD-4-0D82D2-SFF-30W
Preliminary		Preliminary4-Way0.8 GHz2.2 GHz22 dB min.0.7 dB max. (Above 6.02 dB Split)
APD-2-0D82D2-SFF-30W
Active		Active2-Way0.8 GHz2.2 GHz22 dB Min0.5 dB Max (Above 3.01 dB Split)
APD-8-910R2-SFF-30W
Preliminary		Preliminary8-Way9.0 GHz10.2 GHz20 dB min.0.7 dB max.
PD4-500M7G-TEE-SMPM
Active		Active4-Way1.0 GHz4.4 GHz>12 dB<8.5 dB
APD-26-910R2-SFF-30W
Preliminary		Preliminary26-Way9.0 GHz10.2 GHz20 dB min.1.0 dB max.
PD5-1G18G-10DB-4WAY
Active		Active4-Way4.4 GHz (Frequency RF Out)
1.0 GHz (Frequency Coupled Output)		18.0 GHz (Frequency RF Out)
4.4 GHz (Frequency Coupled Output)		20 dB typ. (Frequency RF Out)
20 dB typ. (Frequency Coupled Output)		12 dB Typ (Frequency RF Out)
10 dB ± 2 dB (Frequency Coupled Output)
APD-2-1826R5-SFF-20W
Preliminary		Preliminary2-Way18.0 GHz25.0 GHz18 dB min.1.2 dB max. (Above 3.01 dB Split)
APD-2-1D523-FD
Active		Active2-Way1.5 GHz23.0 GHz16 dB typ. (1.5 to 20.0 GHz)
10 dB typ. (20.0 to 23.0 GHz)		1.8 dB max.
APD-2-0D122-FD
Active		Active2-Way0.1 GHz22 GHz4 dB Min (0.1 to 1.5 GHz)
13 dB Min (1.5 to 22 GHz)		1.8 dB Max
APD-2-100M800M-SFF-20W
Preliminary		Preliminary2-Way0.1 GHz0.8 GHz23 dB min.1.0 dB max. (Above 3.01 dB Split)
APD-2-1218-SFF-20W
Preliminary		Preliminary2-Way12.0 GHz18.0 GHz20 dB min.0.6 dB max. (Above 3.01 dB Split)
APD-3-218-SFF-30W
Preliminary		Preliminary3-Way2.0 GHz18.0 GHz20 dB min.1.6 dB max. (Above 4.77 dB Split)
APD-2-218-FD
Active		Active2-Way2.0 GHz18.0 GHz16 dB Min1.5 dB Max
APD-12-8G18G-SFF
Preliminary		Preliminary12-Way8.0 GHz18.0 GHz16 dB min.2.8 dB max. (Above Splitting Loss)
APD-12-8G18G-SFF-20W
Preliminary		Preliminary12-Way8.0 GHz18.0 GHz16 dB min.2.8 dB max. (Above Splitting Loss)
APD-8-0R5G6G-SFF
Preliminary		Preliminary8-Way0.5 GHz6.0 GHz16 dB min.2.5 dB max. (Above 9.03 dB Split)
APD-16-1G6G-SFF-20W
Preliminary		Preliminary16-Way1.0 GHz6.0 GHz18 dB min.3.0 dB max. (Above 12.04 dB Split)
APD-16-5G18G-SFF-30W
Preliminary		Preliminary16-Way5.0 GHz18.0 GHz16 dB min.3.5 dB max. (Above 12.04 dB Split)
APD-4-2G26G-SFF-1W
Active		Active4-Way2.0 GHz26.0 GHz15 dB MIN2.25 dB MAX
APD-2-3R6G5G-NFF
Active		Active2-Way3.6 GHz5.0 GHz
-
0.3 dB Max
APD-4-18G40G-20W-292FF
Preliminary		Preliminary4-Way18.0 GHz40.0 GHz15 dB min., 18 dB typ.2.4 dB max.
APD-4-2G18G-TF
Preliminary		Preliminary4-Way2.0 GHz18.0 GHz18 dB2 dB
APD-4-2G18G-TF-2
Active		Active4-Way2.0 GHz18.0 GHz18 dB min.1.8 dB max. (Above 6.02 dB Split)
APD-7-328M335R5M-TNC
Active		Active7 Way0.328 GHz0.3355 GHz20 dB Min1.2 dB Max
APD-2-100M520M-NFF
Preliminary		Preliminary2-Way0.1 GHz0.52 GHz23 dB min.0.6 dB max. (Above 3.01 dB Split)
APD-8-10M-12V
Active		Active8-Way0.01 GHz0.01 GHz25 dB Typ4 dB ± 1.5 dB Max
APD-8-2G18G-SFF-30W
Active		Active8-Way2 GHz18 GHz16 dB Min2.6 dB Max (Above 9.03 dB Split)
APD-8-18G40G-292FF-20W
Preliminary		Preliminary8-Way18.0 GHz40.0 GHz15 dB Min3.5 dB Max
APD-4-26D5G40G-20W-292FF-OPT37G39G
Active		Active4-Way37 GHz39 GHz20 dB Min2.0 dB Max
APD-16-2D9G3D1G-SFF
Preliminary		Preliminary16-Way2.9 GHz3.1 GHz18dB Max1.5dB Max
APD-16-500M18G-SFF-30W
Preliminary		Preliminary16-Way0.5 GHz18 GHz12 dB Min12.0 dB Max
APD-16-5R5G6R5G-NFF
Preliminary		Preliminary16-Way5.5 GHz6.5 GHz20 dB Min<=2.0 dB
APD-16-950M1450M-SFF-30W
Preliminary		Preliminary16-Way0.95 GHz1.45 GHz20dB Min<=1.5dB
APD-2-100M22G-CD-1
Preliminary		Preliminary2-Way0.1 GHz22 GHz6 dB typ1.85 dB typ
APD-2-1018
Preliminary		Preliminary2-Way10 GHz18 GHz12 dB Min1.2 dB Max
APD-2-218-M-BB-OPT1018
Preliminary		Preliminary2-Way10 GHz18 GHz16 dB Min2.2 dB Max
APD-2-26G28G-20W-292FF
Preliminary		Preliminary2-Way26 GHz28 GHz16 dB Min1.3 dB Max, 0.8 dB typ.
APD-2-3D13D5-40W-SFF
Preliminary		Preliminary2-Way3.1 GHz3.5 GHz>= 23 dB<= 0.25 dB
APD-2-500M18G-SFF-30W
Preliminary		Preliminary2-Way0.5 GHz18 GHz14 dB Min2.0 dB Max
APD-2-500M2G-SFF
Preliminary		Preliminary2-Way0.5 GHz2 GHz20 dB Min0.5 dB Max
APD-2-50M500M-SFF
Preliminary		Preliminary2-Way0.05 GHz0.5 GHz0.25 dB Typ
-
APD-2-5D4G5D9G-50W-SFF
Preliminary		Preliminary2-Way5.4 GHz5.9 GHz20 dB Min0.4 dB Max
APD-2-DC10G-SFF
Preliminary		Preliminary2-WayDC10 GHz10 dB Typ3.3 dB Typical, 4.0 dB
APD-3-1D7G2D3G-CD-1
Preliminary		Preliminary3-Way1.7 GHz2.3 GHz18 dB typ0.9 dB typ
APD-32-2R5G2R9G-SMF
Preliminary		Preliminary32-Way2.5 GHz2.9 GHz20 dB Min2.0 dB Max
APD-32-3R1G3R5G-SMF
Preliminary		Preliminary32-Way3.1 GHz3.5 GHz20 dB Min2.0 dB Max
APD-32-540M-SMF
Preliminary		Preliminary32-Way0.54 GHz0.54 GHz20 dB Min2.0 dB Max
APD-32-950M1450M-SFF-30W
Preliminary		Preliminary32-Way0.95 GHz1.45 GHz20dB Min<=2.6dB
APD-4-3D13D5-60W-SFF
Preliminary		Preliminary4-Way3.1 GHz3.5 GHz>= 23dB<= 0.45dB
APD-4-3D5G4D5G-SFF-20W
Preliminary		Preliminary4-Way3.5 GHz4.5 GHz17.0dB Min1.0dB Max
APD-4-5G6G-SFF-20W
Preliminary		Preliminary4-Way5 GHz6 GHz17.0dB Min1.0dB Max
APD-4-5M1G-SFF
Preliminary		Preliminary4-Way0.005 GHz1 GHz20 dB Min2.4 dB Max
APD-6-400M3G-17-SFF-75W
Preliminary		Preliminary6-Way0.4 GHz3 GHz17 dB Min2.0 dB Max
APD-8-1G18G-SFF-30W
Preliminary		Preliminary8-Way1 GHz18 GHz16 dB Min4.5 dB Max
APD-8-20M6G-28V
Preliminary		Preliminary8-Way0.02 GHz6 GHz
-
-
APD-8-20M6G-3R5-12V-SFF
Preliminary		Preliminary8-Way0.02 GHz6 GHz
-
-
APD-8-2D8G4D3G-10W-SFF
Preliminary		Preliminary8-Way2.8 GHz4.3 GHz22 dB Min1.0 dB typ., 1.5 dB Max
APD-8-6G18G-SFF-OPT13D85G14D45G
Active		Active8-Way13.85 GHz14.45 GHz18 dB Min2.0 dB Max
APD-8-8G12D4G-SFF
Preliminary		Preliminary8-Way8 GHz12.4 GHz17.0dB Max1.3dB Max
RPD-DC18G-SFF
Preliminary		Preliminary2-WayDC18 GHz12 dB Min7 dB Max, 6 dB typ.
RPD-DC26R5G-292FF
Preliminary		Preliminary2-WayDC26.5 GHz12 dB Min7 dB Max, 6 dB typ.
APD-2-1112
Preliminary		Preliminary2-Way11.0 GHz12.4 GHz19.0 dB Min0.6 dB Max
APD-2-1G18G-NFF
Preliminary		Preliminary2-Way1 GHz18 GHz16 dB Min2.2 dB Max
APD-2-218
Preliminary		Preliminary2-Way2 GHz18 GHz2 to 8 GHz: 20 dB Minimum, 8 to 18 GHz: 19 dB Minimum2 to 8 GHz: 0.5 dB Maximum, 8 to 18 GHz: 1.2 dB Maximum
APD-4-26D5G40G-20W-292FF
Active		Active4-Way26.5 GHz40 GHz>= 18 dB<= 2.4 dB
APD-4-5M1G-BNC
Preliminary		Preliminary4-Way0.005 GHz1.0 GHz20 dB min.2.5 dB max.
APD-8-2G26G-292FF-1W
Preliminary		Preliminary8-Way2 GHz26 GHz15 dB min.3.5 dB max.
APD-8-500M18G-SFF-30W
Active		Active8-Way0.5 GHz18 GHz12 dB Min8.0 dB Max
RPD-DC40G-292FF
Preliminary		Preliminary2-WayDC40 GHz10 dB Min9 dB Max, 6 dB typ.
RPD-DC6G-SFF
Preliminary		Preliminary2-WayDC6 GHz12 dB Min7 dB Max, 6 dB typ.
ULPD-2-2D9G3D3G-0D9DB7D4DB-SFF-650W
Preliminary		Preliminary2-Way2.9 GHz3.3 GHz18 dB MinJ1: -0.87+(-0.4), J2: -7.4+(-0.4)
ULPD-8-2D9G3D3G-5D6DB13D5DB-BFF-500W
Preliminary		Preliminary8-Way2.9 GHz3.3 GHz18 dB MinJ1: -5.64+(-0.5), J2: -6.75+(-0.5), J3: -8.08+(-0.5), J4: -9.20+(-0.5), J5: -10.90+(-0.5), J6: -12.00+(-0.5), J7: -12.94+(-0.5), J8: -13.50+(-0.5)
ULPD-8-2D9G3D3G-7D9DB11D0DB-BFF-500W
Preliminary		Preliminary8-Way2.9 GHz3.3 GHz18 dB MinJ1: -7.94+(-0.5), J2: -7.94+(-0.5), J3: -8.53+(-0.5), J4: -8.50+(-0.5), J5: -9.15+(-0.5), J6: -9.72+(-0.5), J7: -10.44+(-0.5), J8: -11.00+(-0.5)
APD-2-0518
Preliminary		Preliminary2-Way0.5 GHz18 GHz17 dB Min0.8 dB Max
APD-2-100M20G-CD-1
Active		Active2-Way0.1 GHz20 GHz6 dB typ.85 dB typ
APD-2-12
Active		Active2-Way1.0 GHz2.0 GHz22 dB Min0.75 dB Max
APD-2-18G40G-20W-292FF
Active		Active2-Way18 GHz40 GHz18 dB Min1.5 dB Max
APD-2-2G18G-SFF-1W
Active		Active2-Way2 GHz18 GHz15 dB Min1.0 dB Max
APD-4-4D1G6D1G-30W-SFF
Active		Active4-Way4.1 GHz6.1 GHz20 dB Min0.8 dB Max
APD-8-052
Preliminary		Preliminary8-Way0.5 GHz1.5 GHz15.0 dB Min1.6 dB Max
APD-8-1112
Preliminary		Preliminary8-Way11.0 GHz12.4 GHz15.0 dB Min2.0 dB Max
APD-8-34
Preliminary		Preliminary8-Way3.6 GHz4.2 GHz17 dB Min0.8 dB Max
RFOC-811-QRC-2-PD
Active		Active2-Way6 GHz13 GHz18 dB Min0.6 dB Max
APD-2-0416-YR1
Active		Active2-Way0.4 GHz16 GHz0.4 to 6.0 GHz: 16 dB Min
6.0 to 16.0 GHz: 18 dB Min		0.4 to 6.0 GHz: 1.8 dB Max
6.0 to 16.0 GHz: 4.0 dB Max
APD-2-052
Preliminary		Preliminary2-Way0.5 GHz2 GHz20 dB Min0.7 dB Max
APD-2-2G18G-SFF-30W
Active		Active2-Way2 GHz18 GHz20 dB Min1.0 dB Max
APD-2-34
Preliminary		Preliminary2-Way3.6 GHz4.2 GHz21.0 dB Min0.4 dB Max
APD-3-052
Preliminary		Preliminary3-Way0.5 GHz2 GHz16 dB Min0.75 dB Max
APD-4-218
Active		Active4-Way2 GHz18 GHz18.0 dB Min1.5 dB Max
APD-4-400M3G-17-SFF-75W
Active		Active4-Way0.4 GHz3 GHz17 dB Min1.8 dB Max
APD-6-2G18G-SFF-1W
Active		Active6-Way2 GHz18 GHz15 dB Min1.75 dB Max
APD-16-0D5G18D0G-SFF
Active		Active16-Way0.5 GHz18 GHz14 dB Max16.0 dB Max
APD-8-1G26D5G-292FF-30W
Preliminary		Preliminary8-Way1 GHz27 GHz15 dB min.4.8 dB max.
APD-8-30M6G-SFF
Active		Active8-Way0.03 GHz6 GHz32 dB Min4 dB Min
APD-2-26D5G40G-20W-292FF
Active		Active2-Way26.5 GHz40 GHz16 dB Min1.3 dB Max 0.8 dB Typ
APD-2-500M2G-23-SFF-30W
Active		Active2-Way0.5 GHz2 GHz23 dB Min0.5 dB Max
APD-4-052
Preliminary		Preliminary4-Way0.5 GHz2 GHz18 dB Min1.5 dB Max
APD-4-3D13D5-40W-SFF
Active		Active4-Way3.1 GHz3.5 GHz23 dB Min0.45 dB Max
APD-3-800M2D5G-NFF-50W *
Active		Active3-Way0.8 GHz2.5 GHz20 dB Min<=0.6 dB
APD-8-100M-28V
Active		Active8-Way0.1 GHz0.1 GHz25 dB Typ4 dB ±1.5 dB Max
APD-4-218-LC-2-OPT6G18G
Preliminary		Preliminary4-Way6 GHz18 GHz20 dB min.0.9 dB max.
APD-8-6G18G-SFF
Active		Active8-Way6 GHz18 GHz18 dB Min2.0 dB Max
APD-4-218-LC
Active		Active4-Way2 GHz18 GHz17 dB Min1.8 dB Max
APD-2-2G18G-GC
Active		Active2-Way2 GHz18 GHz20 dB Min0.5 dB Max (**Theoretical insertion loss of a 2-Way Power Divider is 3 dB)
APD-4-500M18G-SFF-30W
Active		Active4-Way0.5 GHz18 GHz12 dB Min5.5 dB Max
APD-2-218-M-BB
Active		Active2-Way2 GHz18 GHz16 dB Typ2.2 dB Max
APD-2-0518-YR1
Active		Active2-Way0.5 GHz18 GHz16.5 dB Typ1.8 dB typ
APD-4-20M6G-28V
Active		Active4-Way0.02 GHz6 GHz
-
-
APD-4-800M2D5G-SFF-30W
Active		Active4-Way0.8 GHz2.5 GHz20 dB Min0.7 dB
PD-16-0D5G18D0G-SFF
Active		Active16-Way0.5 GHz18 GHz12 dB @ 0.5-0.6 GHz, Min
14 dB @ 0.6-18 GHz Min		12 dB Max
APD-8-800M2D5G-SFF-30W *
Active		Active8-Way0.8 GHz2.5 GHz20 dB Min<1.2 dB
APD-4-2G26G-292FF-1W
Active		Active4-Way2 GHz26 GHz15 dB Min2.25 dB Max
APD-2-100M18G-CD-1
Active		Active2-Way0.1 GHz18 GHz6 dB Typ1.85 dB Typ
APD-8-500M2G-SFF-30W
Active		Active8-Way0.5 GHz2 GHz20 dB Min<=1.5 dB
APD-4-500M2G-SFF-30W *
Active		Active4-Way0.5 GHz2 GHz20 dB Min<=1.0 dB
APD-2-800M2D5G-NFF-50W *
Active		Active2-Way0.8 GHz2.5 GHz22 dB Min<=0.4 dB
APD-2-500M2G-SFF-30W *
Active		Active2-Way0.5 GHz2 GHz20 dB Min0.5 dB
APD-4-218-LC-2
Active		Active4-Way2 GHz18 GHz16 dB Min2.0 dB Max (Above 6.02 dB Split)
