| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| CW Immune (Yes/No): | Yes |
|---|
| Frequency Min (GHz): | 9 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| TSS (dBm): | -40 Typ |
|---|
| TSS (Measured): | -40 dBm Typ |
|---|
| Log Slope (mV/dB): | 50 Nom |
|---|
| Log Range (dBm): | -33 to 0 |
|---|
| Log Linearity: | ±1.5 dB Typ |
|---|
| Rise Time: | 25 ns |
|---|
| Recovery Time: | 500 ns |
|---|
| Power Supply: | +12 VDC @ 150 mA Max,
-12 VDC @ 150 mA Max |
|---|
| Cooling: | Conduction cooling at mounting surface |
|---|
| Frequency Flatness: | ±2.0 dB Typ |
|---|
| Video Load (Ohms): | 93 |
|---|
| CW Immune Time: | 500 µs |
|---|
| Max Input Level: | +20 dBm CW |
|---|
| Signal Capability: | Pulse (50 ns to 250 µs) |
|---|
| Connectors: | SMA female |
|---|

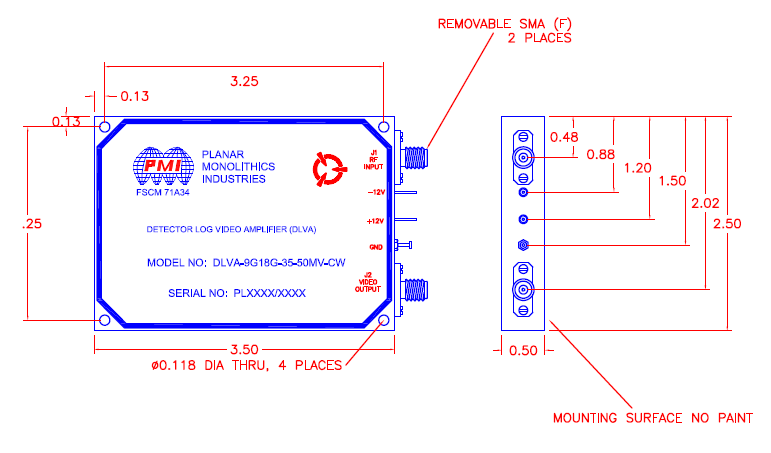

| Size: | 3.5" x 2.5" x 0.5" |
|---|
| Finish: | Nickel Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC Operating |
|---|
| Non-Operating Temperature: | -55 ºC to +100 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond A |
|---|
| Shock: | MIL-STD-202G, Method 213 Cond A |
|---|
| Vibration: | MIL-STD-202G, Method 214, Cond J |
|---|
| Altitude: | MIL-STD-202G, Method 103C Cond C |
|---|
| Salt Fog: | MIL-STD-810D, 509.2 Procedure 1 |
|---|
