SDLVA-0120-70 OPTIONS EADS, 100MV, 09103 Active

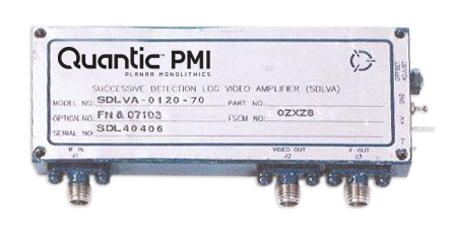

Quantic PMI Model SDLVA-0120-70 Options EADS, 100MV, 09103 is a Successive Detection Log Video Amplifier (SDLVA) operates over the 0.95 to 1.25 GHz range with a dynamic dange of 65 to 70 dB, a TSS of -60 dBm and a nominal Video bandwidth of 0.02 GHz.  Designed using cutting edge GaAs Technology which provides stunning performance and reliability in a  compact package measuring 3.75" x 1.50" x 0.50" making it an optimum solution for high speed channelized receiver applications.  These units offer typical fast rise time of ≤20 ns, Rapid fall time of ≤25 ns as well as superior delay time of 8 ns. The logging slope is 25 mV/dB and the accuracy is less than ±1.0 dB over the -55 to 0 dBm power input range.  Dynamic Range can be extended to -65/+5 with log error of ±1.5 dB. Options are available with adjustable logging slope and DC offsets. Guaranteed rise times are <25 ns and maximum recovery times are<30 ns. Recovery times at lower power are faster. The SDLVA-0120-70 SDLVA is commercially screened and characterized from -55 to +85 ºC.
