General Parameters: |
Type: | DLVA |
Status: | Preliminary |
Frequency Range: | 8.0 to 18.0 GHz |
Frequency Min: | 8.0 GHz |
Frequency Max: | 18.0 GHz |
TSS: | -71 dBm |

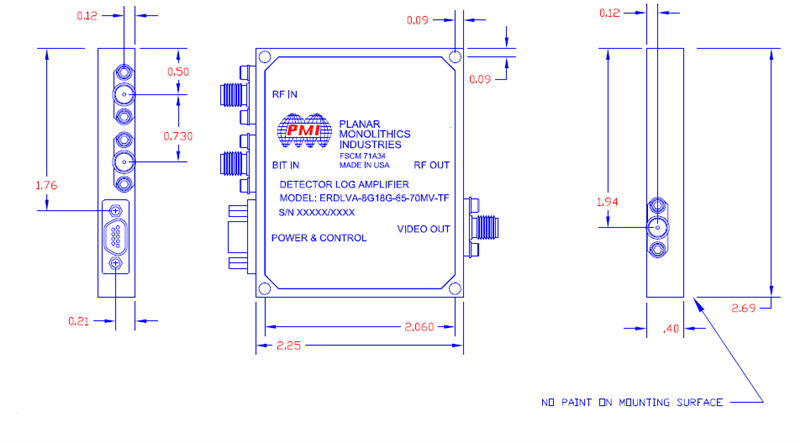

Size: | 2.25" x 2.69" x 0.40" |
Log Slope: | 70 mV/dB ± 3 mV/dB |
Log Range: | -65 to 0 dBm |
Log Linearity: | ±1.0 dB max. |
Rise Time: | 28 ns max. (10 to 90% @ -40 & -10 dBm) |
Fall Time: | 300 ns max. (@ -40 & -10 dBm) |
Recovery Time: | 500 ns max. (From 90% to within 1 dB of Baseline) |
Settling Time: | 50 ns max. (From 10% to within 35 mV of Final Value @ -40 & -10 dBm) |
Finish: | Gray Paint, No Paint on Mounting Surface |
Propagation Delay: | 80 ns max. from 50% RF to 10% Video) |
DC Offset: | 0 to 100 mV |
Dynamic Range: | -65 to 0 dBm |
Isolation: | 60 dB min. All Ports |
Switching Speed: | 100 ns max. |
Video Frequency Flatness: | ±1.75 dB max. @ 25°C |
Log Accuracy: | ±1.75 dB max. (@ 25°C) |
Absolute Log Accuracy: | ±2.0 dB max. |
Pulse Width Process Range: | 100 ns to 100 us |
Video Output Drive Capability: | 20% Duty @ 100 ns PW, 70% Duty @ 100 us PW |
Noise Level: | 30 mV RMS max. |
DC Power: | ±15 V ± 5% @ 0.4 A max. for +15 V ±15 V ± 5% @ 0.2 A max. for -15 V |
Stabilization Bake: | 24 hours @ +85°C |
Burn In: | 48 hours @ +85°C DC Power On |
Input VSWR: | 2.3:1 max. |
Maximum Input Power: | 1 W CW, 100 W Peak @ PW = 1 us & 1% Duty |
Ripple from DC to 10 MHz: | 100 mV max. |
CW Immune Time at CW = -40 dBm: | 4 ms max. |
CW Recovery Time at CW = -40 dBm: | 120 us max. |
Pulse Droop: | 70 mV max. for PW 100 us (-65 dBm) |
MTBF: | 5000H @ 50°C |
Video Output Load Impedance: | 95 ± 1 Ohms |
Video Output @ -65 dBm: | 320 ± 123 mV for all Frequencies |
Baseline Shift: | 200 mV max. @ -40 dBm CW |
Pulse Amplitude Loss with Pulse Power: | -30 dBm @ CW Power = -50 dBm, No Loss @ CW Power = -40 dBm, 2 dB Loss max. |
Immune Power (CW): | TSS to -40 dBm |
Connectors: | RF & Video: SMA (F) DC Power & Control: 9 Pin D-Sub (F) |
Environmental Ratings: |
Operating Temperature: | -10°C to +85°C |
Thermal Shock: | -10°C to +85°C, 10 Cycles 1 hour Dwell Time at Each Temp, Rate of Temp Change 15°C/min. |
Random Vibration: | 20 Hz to 2000 Hz, Random 16.8 grms in all 3 Axis for 15 minutes min. |
