SDLVA-100M3G-70-MAH Active

Successive Detection Log Video Amplifier (SDLVA)

Buy Now
SDLVA-100M3G-70-MAH
Product Feature

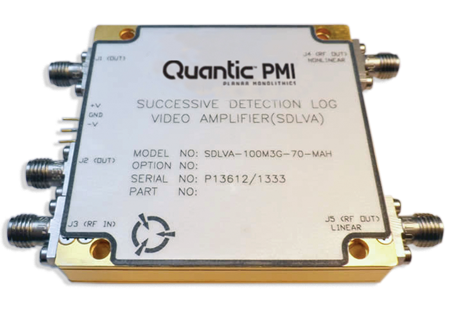

Quantic PMI Model SDLVA-100M3G-70-MAH is a Successive Detection Log Video Amplifier (SDLVA) operating in the 0.1 to 3 GHz frequency band.  Features an SPST on the RF output which allows for the RF to be blanked when the RF input signal is below the -64 dBm threshold. In addition to RF blanking, a 3.3 V TTL-compatible output is also provided for time-gating or sampling, to assist in digital system integration. Package size is 2.3" x 2.2" x 0.36" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
CW Immune (Yes/No): No
Frequency Min (GHz): 0.1
Frequency Max (GHz): 3
TSS (dBm): -68 Min, -70 Typ
Log Slope (mV/dB): 10 ± 1 into a 50 Ohm Load Max
Log Range (dBm): -65 to +5 Min
Log Linearity: ±1.5 dB ( -40 to +85 ºC) Max
Rise Time: 35 ns Max
Recovery Time: 200 ns Max (150 ns Typ)
Settling Time: 50 ns Typ
Power Supply: ±12 to ±15 VDC
Frequency Flatness: ±2.0 dB Max
VSWR: 2.0:1 Max
Video Load (Ohms): 50
Pulse Range: 100 ns to CW
Dynamic Range: -65 to +5 dBm Min
Limited IF Output: 6.5 ± 3.0 dB Max
Linear Output Gain: 38 ± 3.0 dB Max
Linear Output Psat: 6 ± 3.0 dB Max
Video Comparator Delay: 50 ns Typ
Video Comparator Threshold Level: -64 dBm ± 3.0 dB Max
Connectors: SMA Female
Size: 2.30" x 2.20" x 0.36"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -54 ºC to +100 ºC
Temperature Cycle: MIL-STD-202G, Method 107D Cond. A
Humidity: MIL-STD-202G, Method 103B Cond. B
Shock: MIL-STD-202G, Method 213B Cond. B
Vibration: MIL-STD-202G, Method 204D Cond. B
Altitude: MIL-STD-202G, Method 105C Cond. B
