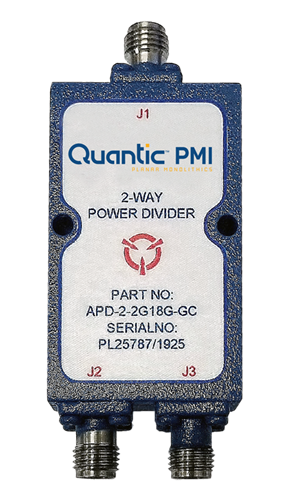

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 2 Way |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Isolation (dB): | 20 dB Min |
|---|
| Isolation (dB) - Measured: | 20 dB Min - Measured 22.61 dB |
|---|
| Insertion Loss (dB): | 0.5 dB Max (Theoretical insertion loss of 3 dB) |
|---|
| Insertion Loss (dB) - Measured: | 0.5 dB Max (2 to 8 GHz),
1.2 dB Max (8 to 18 GHz) |
|---|
| VSWR (In/Out): | 1.3:1, 1.4:1 / 1.25:1, 1.4:1 |
|---|
| Amplitude Balance: | ±0.2 dB Max (2 to 8 GHz),
±0.3 dB Max ( 8 to 18 GHz) |
|---|
| Phase Balance: | 5° Max |
|---|
| Power Handling: | 30 W Max (Forward)
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 41.91 mm x 25.4 mm x 10.16 mm,
1.65" x 1.0" x 0.4" |
|---|
| Finish: | Blue Epoxy |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Operating Humidity: | Up to 90% (Non-Condensing) |
|---|
