General Parameters: |
Status: | Active |

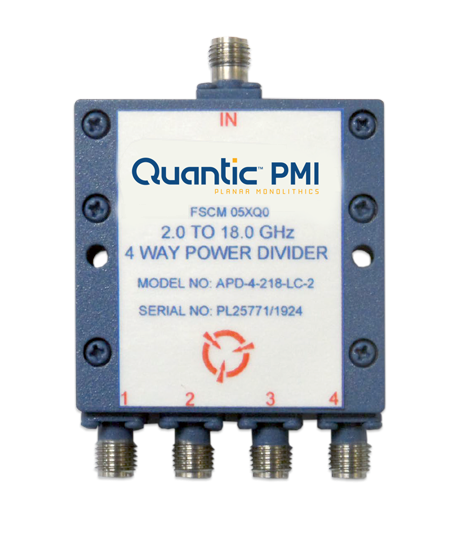

Type: | 4-Way |
Frequency Min: | 2 GHz |
Frequency Max: | 18 GHz |
Isolation: | 16 dB min. |
Insertion Loss: | 2.0 dB Max (Above 6.02 dB Split) |
Frequency Range: | 2.0 - 18.0 GHz |
VSWR (In/Out): | 1.65:1 Max, 1.50:1 Max |
Amplitude Balance: | 0.5 dB Max |
Phase Balance: | 12° Max |
Power Handling: | Forward: 10 Watts Max, Reversed: 1 Watt Max |
Impedance: | 50 Ohms |
Connectors: | SMA (F) removeable |
Finish: | Painted Blue |
Connector Body: | Passivated Stainless Steel |
Size: | 1.75" x 1.75" x 0.40" |
Environmental Ratings: |
Operating Temperature: | -55 ºC to +85 ºC |
Non-Operating Temperature: | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
