APD-8-10M-12V Active

8 Way Amplified Power Divider

Buy Now
APD-8-10M-12V
Product Feature

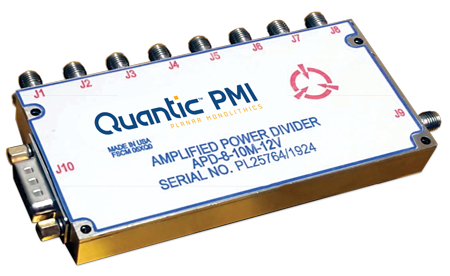

Quantic PMI Model APD-8-10M-12V is an 8 Way amplified power divider module to provide a 10 MHz signal to 8 outputs with 4 dB of loss.  This module balances a low noise figure with high output power. Housing size is 4.0" x 2.0" x 0.55" with a 9 pin micro-D connector for power and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8 Way
Frequency Range (GHz): 0.01 GHz (10 MHz)
Frequency Min (GHz): 0.01
Frequency Max (GHz): 0.01
Isolation (dB): 25 dB Typ
Insertion Loss (dB): 4 ± 1.5 dB Max
VSWR (In/Out): 2.0:1 Max
Input Power P1dB: 20 dBm Typ
Input Power: 23 dBm Max (Survival)
Power Supply: +12 VDC @ 750 mA Max
Output Port to Port Isolation: 25 dB Typ
Power / Control Connector: 9 Pin Micro-D Male (DB9-M)
Connectors: SMA Female
Size: 4.00" x 2.00" x 0.55"
Finish: Nickel Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 ºC to +85 ºC
Temperature (Non-Operating): -40 ºC to +85 ºC
Humidity: MIL-STD-810, 0 to 95% Non-Condensing
Shock: MIL-STD-810, 516.6 Compliant, 20G, 11 ms Duration
Vibration: MIL-STD-810, Method 515, Fig. 3 (Non-Op)
Altitude: MIL-STD-810, 15, 000 ft.
