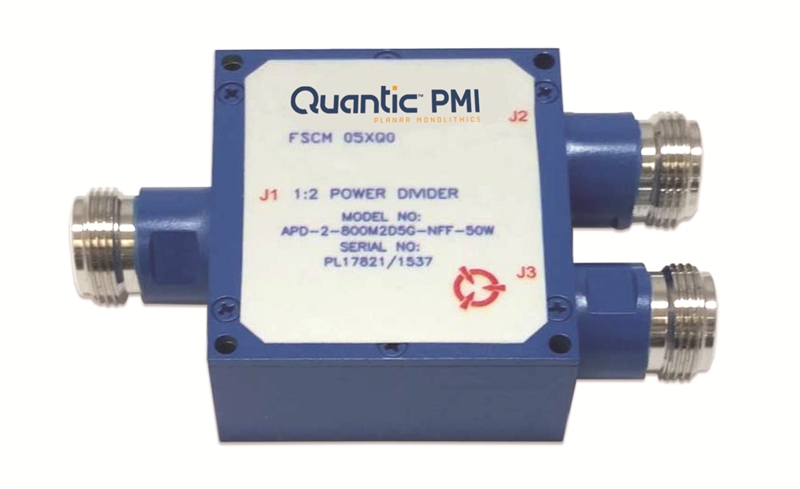

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 2-Way |
|---|
| Frequency Min: | 0.8 GHz |
|---|
| Frequency Max: | 2.5 GHz |
|---|
| Isolation: | 22 dB Min |
|---|
| Isolation (Measured): | 22 dB Min - Measured 25.72 dB |
|---|
| Insertion Loss: | <=0.4 dB |
|---|
| Insertion Loss (Measured): | <=0.4 dB - Measured 0.31 dB |
|---|
| Frequency Range: | 0.8 to 2.5 GHz |
|---|
| VSWR (In/Out): | 1.25:1 Measured (Input) 1.16:1, (Output) 1.13:1 |
|---|
| Amplitude Balance: | ±0.2 dB - Measured ±0.4 dB |
|---|
| Phase Balance: | ±2° - Measured ±1.15° |
|---|
| Power Handling: | Forward <= 50 Watts, Reversed <= 1 Watt |
|---|
| Impedance: | 50 Ohms |
|---|
| Connectors: | N (F) |
|---|
| Finish: | Painted Blue |
|---|
| Size: | 1.89" x 2.047" x 0.787" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +70 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
