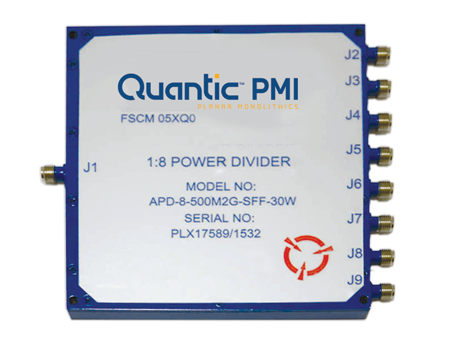

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 8 Way |
|---|
| Frequency Range (GHz): | 0.5 to 2 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 2 |
|---|
| Isolation (dB): | 20 dB Min |
|---|
| Isolation (dB) - Measured: | 20 dB Min - Measured 24.69 dB |
|---|
| Insertion Loss (dB): | 1.5 dB Max |
|---|
| Insertion Loss (dB) - Measured: | 1.5 dB Max - Measured 1.02 dB |
|---|
| VSWR (In/Out): | 1.4:1 Max / 1.25:1 Max |
|---|
| Amplitude Balance: | ±0.4 dB |
|---|
| Phase Balance: | ±4° |
|---|
| Power Handling: | 30 W Max (Forward),
1 W Max (Reverse) |
|---|
| Impedance: | 50 Ohm |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 4.25" x 4.06" x 0.394" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
