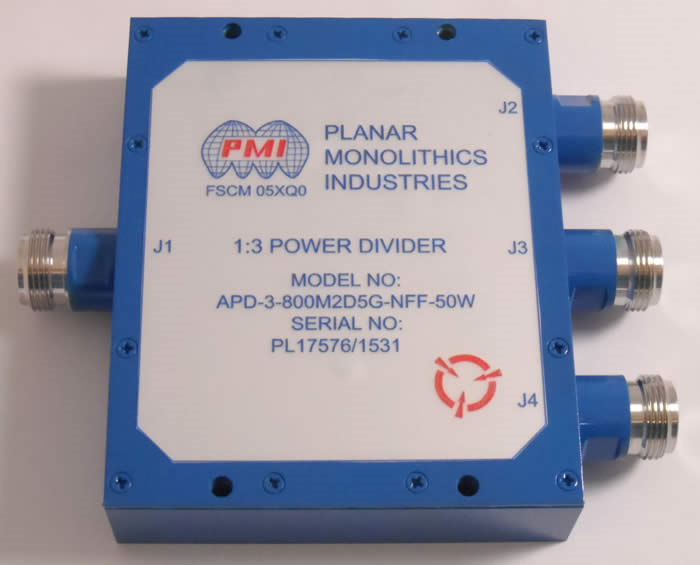

General Parameters: |
Status: | Active |
Type: | 3-Way |
Frequency Min: | 0.8 GHz |
Frequency Max: | 2.5 GHz |
Isolation: | 20 dB Min |
Isolation (Measured): | 20dB min - Measured 21.84 dB |
Insertion Loss: | <=0.6 dB |
Insertion Loss (Measured): | <=0.6dB - Measured 0.46dB |
Frequency Range: | 0.8 to 2.5 GHz |
VSWR (In/Out): | <=1.30:1 - Measured 1.29 :1 |
Amplitude Balance: | <=±0.35 dB - Measured ± 0.13 dB |
Phase Balance: | <+3° - Measured ± 2.23° |
Power Handling: | Forward <=50 Watts, Reversed <=1 Watt |
Impedance: | 50 OHM |
Connectors: | N-Female (4) |
Finish: | Painted Blue |
Environmental Ratings: |
Operating Temperature: | -55 ºC to +85 ºC |
Non-Operating Temperature: | -65ºC to +125ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
