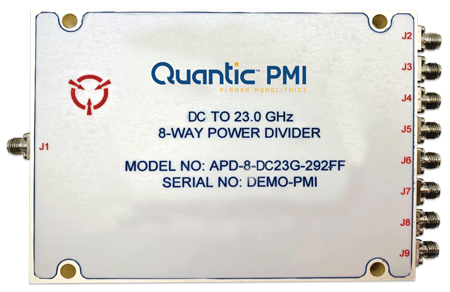

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 8 Way |
|---|
| Frequency Range (GHz): | DC to 23 |
|---|
| Frequency Min (GHz): | DC |
|---|
| Frequency Max (GHz): | 23 |
|---|
| Isolation (dB): | 10 dB Typ (0.5 to 2 GHz),
20 dB Typ (2 to 18 GHz) |
|---|
| Insertion Loss (dB): | 2 dB (0.5 to 1 GHz),
3 dB (1 to 2 GHz),
3 dB (2 to 8 GHz),
5 dB (8 to 18 GHz) |
|---|
| Amplitude Balance: | ±0.5 dB Max (0.01 to 2 GHz),
±0.3 dB Max (2 to 8 GHz),
±0.5 dB Max (8 to 18 GHz),
±1.2 dB Max (18 to 22 GHz),
±2 dB Max (22 to 23 GHz) |
|---|
| Phase Balance: | 25° Max (0.01 to 1 GHz),
3° Max (1 to 2 GHz),
4° Max (2 to 8 GHz),
10° Max (8 to 18 GHz),
15° Max (18 to to 22 GHz),
20° Max (22 to 23 GHz) |
|---|
| Average Power Into Load VSWR: | 25 W (Into 1.2:1 Load VSWR) |
|---|
| VSWR Input: | 7.0:1 Typ (0.01 to 0.1 GHz),
6.0:1 Typ (0.1 to 0.2 GHz),
5.0:1 Typ (0.2 to 0.3 GHz),
4.0:1 Typ (0.3 to 0.5 GHz),
2.3:1 Typ (0.5 to 1 GHz),
2.4:1 Max (1 to 2 GHz),
2.1:1 Max (2 to 8 GHz),
2.0:1 Max (8 to 18 GHz),
2.0:1 Typ (18 to 23 GHz) |
|---|
| VSWR Output: | 7.0:1 Typ (0.01 to 0.08 GHz),
4.0:1 Typ (0.08 to 0.1 GHz),
3.0:1 Typ (0.1 to 0.2 GHz),
2.5:1 Typ (0.2 to 0.3 GHz),
2.0:1 Typ (0.3 to 0.5 GHz),
2.6:1 Max (1 to 2 GHz),
2.1:1 Max (2 to 8 GHz),
2.0:1 Max (8 to 18 GHz),
2.0:1 Typ (18 to 23 GHz) |
|---|
| Connectors: | 2.92mm Female - removable |
|---|
| Size: | 5.0" x 3.7" x 0.43" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
