APD-8-20M6G-3R5-12V-SFF Preliminary

Product Feature

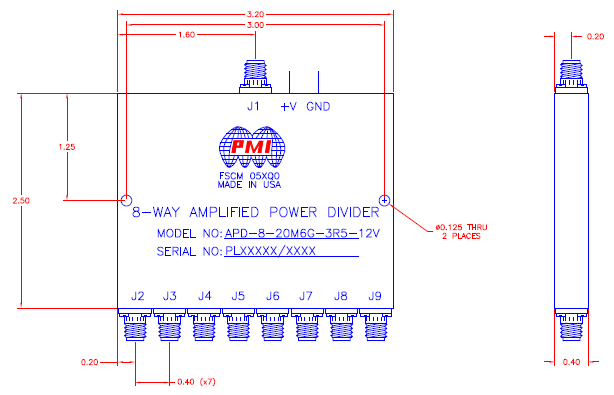

PMI Model No. APD-8-20M6G-3R5-12V-SFF is a 20MHz to 6.0GHz, 8-Way, Amplified Power Divider having a typical gain of 3.5dB. The size is 3.2" x 2.5" x 0.40"

Product Specifications

General Parameters:
Status: Preliminary
Type: 8-Way
Frequency Min: 0.02 GHz
Frequency Max: 6 GHz
Frequency Range: 0.02 to 6.0 GHz
Gain: 3.5dB typ
Noise Figure: 7.5dB typ
VSWR (In/Out): 2.0:1 max
Power Handling: Input P1dB -12dBm typ
Survival: 2 Watts
Power Supply: +8 to +12VDC @ 150mA typ
Impedance: 50 Ohms
Finish: Painted Blue
Size: 3.2" x 2.5" x 0.39"
Environmental Ratings:
Operating Temperature: -55ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
