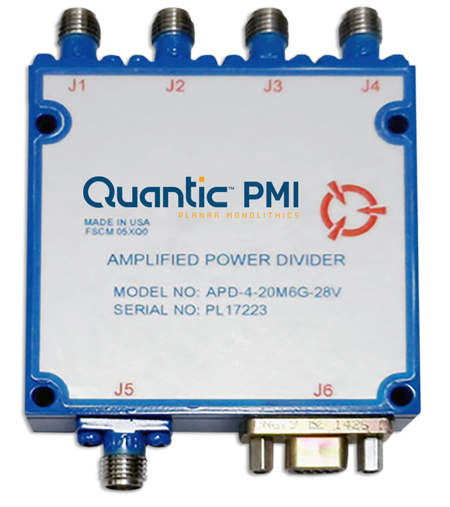

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 4-Way |
|---|
| Frequency Min: | 0.02 GHz |
|---|
| Frequency Max: | 6 GHz |
|---|
| Frequency Range: | 0.02 to 6.0 GHz |
|---|
| Gain: | 3.5 dB, ±2 dB Max - Measured: 3.5 dB ±1.07 dB J1 Max, 3.5 dB ±1.05 dB J2 Max, 3.5 dB ±0.94 dB J3 Max, 3.5 dB ±0.91 dB J4 Max |
|---|
| Noise Figure: | 5.5 dB (70 to 3000 MHz) Max, 6 dB (20 to 6000 MHz) Typ - Measured: 4.4 dB, 4.7 dB J1 Max, 4.5 dB, 4.8 dB J2 Max, 4.7 dB, 4.6 dB J3 Max, 4.6 dB, 4.8 dB J4 Max |
|---|
| VSWR (In/Out): | 2.5:1 Max - Measured: 1.70:1 dB J1 Max, 1.69:1 dB J2 Max, 1.70:1 dB J3 Max, 1.66:1 dB J4 Max, 2.27:1 dB J5 Max |
|---|
| Output Power P1dB: | 10 dBm (20 to 3000 MHz) Typ, 9 dBm (3.0 to 6.0 GHz) Typ - Measured: 11.50 dB - 11.42 dB J1 Max, 11.46 dB - 11.38 dB J2 Max, 11.44 dB - 11.33 dB J3 Max, 11.42 dB - 11.31 dB J4 Max |
|---|
| Input Power: | 33 dBm Max (Survival) - Measured 33 dBm Max |
|---|
| Power Supply: | +28 V @ 200 mA Max - Measured 75 mA |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 100 g Max - Measured 75 g |
|---|
| Size: | 2.00" x 2.00" x 0.40" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -54 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
|---|
