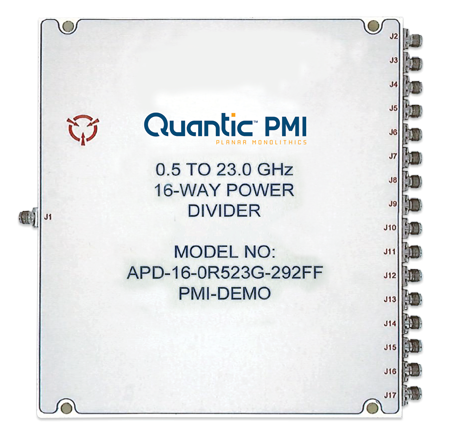

| General Parameters: |
|---|
| Status: | Active |
|---|
| Type: | 16-Way |
|---|
| Frequency Min: | 0.5 Ghz |
|---|
| Frequency Max: | 23.0 GHz |
|---|
| Isolation: | 0.5 to 1 GHz - 10 dB Typ
1 to 2 GHz - 10 dB Typ
2 to 8 GHz - 20 dB Typ
8 to 18 GHz - 20 dB Typ
18 to 22 GHz - 15 dB Typ
22 to 23 GHz - 10 dB Typ |
|---|
| Insertion Loss: | 0.5 to 1 GHz - 2.0 dB Max
1 to 2 GHz - 3.0 dB Max
2 to 8 GHz - 3.0 dB Max
8 to 18 GHz - 5.0 dB Max
18 to 22 GHz - 7.0 dB Max
22 to 23 GHz - 7.5 dB Max |
|---|
| Amplitude Balance: | 0.5 to 1 GHz - ±0.5 dB Max
1 to 2 GHz - ±0.5 dB Max.
2 to 8 GHz
±0.5 dB Max.
8 to 18 GHz - ±1.0 dB Max
18 to 22 GHz - ±2.0 dB Max
22 to 23 GHz - ± 2.3 dB Max |
|---|
| Phase Balance: | 0.5 to 1 GHz - ±3° Typ
1 to 2 GHz - ±3° Typ
2 to 8 GHz - ±10° Typ
8 to 18 GHz - ±20° Typ
18 to 22 GHz - ±25° Typ
22 to 23 GHz - ±30° Typ |
|---|
| Average Power Into Load VSWR: | 25 Watts (+44 dBm) |
|---|
| Connectors: | 2.92 mm FEMALE REMOVABLE |
|---|
| Finish: | Painted Blue |
|---|
| Size: | 6.2" x 7.1" x 0.43" |
|---|
| VSWR Input: | 0.5 to 1 GHz - 2.5:1 Typ
1 to 2 GHz - 3.1:1 Typ
2 to 8 GHz - 2.1:1 Max
18 to 22 GHz - 2.1:1 Max
22 to 23 GHz - 2.0:1 Max |
|---|
| VSWR Output: | 0.5 to 1 GHz - 1.5:1 Max
1 to 2 GHz - 1.5:1 Max
2 to 8 GHz - 1.8:1 Max
8 to 18 GHz - 1.8:1 Max
18 to 22 GHz - 2.0:1 Max
22 to 23 GHz - 2.0:1 Typ |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
