APD-2-218-M-BB

2 Way Power Divider

Buy Now
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/APD_2_218_M_BB_37949094_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/77972953/APD-2-218-M-BB_636522172086308580_300.JPG
Product Feature

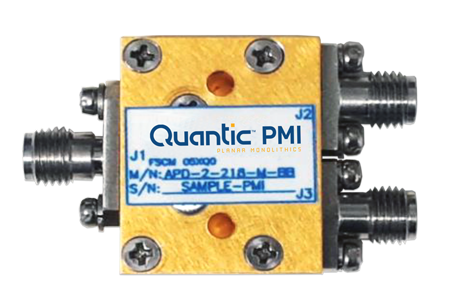

PMI Model No. APD-2-218-M-BB is a 2.0 to 18.0 GHz, 2 Way Power Divider with a maximum insertion loss of 2.2 dB and a minimum isolation of 16 dB Typical. It is supplied with SMA female connectors in a housing measuring 0.779" x 1.026" x 0.300"

Additional Product Information under, http://www.planarmonolithics.com/products/APD-2-218-M-BB.htm

Product Specifications

General Parameters:
Status: Active
Type: 2-Way
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Isolation: 16 dB Typ
Insertion Loss: 2.2 dB Max
Frequency Range: 2.0 to 18.0 GHz
VSWR (In/Out): 2.0:1/ 1.8:1
Amplitude Balance: 0.2 dB Typ
Average Power Into Load VSWR: 0.3 Watts with 100:1 VSWR,
1.5 Watts with 2.0:1 VSWR,
2 Watts with 1.2:1 VSWR
Connectors: SMA (F)
Size: 0.779" x 1.026" x 0.300"
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
