APD-8-3D13D5-40W-SFF Active

8 Way Power Divider

Buy Now
APD-8-3D13D5-40W-SFF
Product Feature

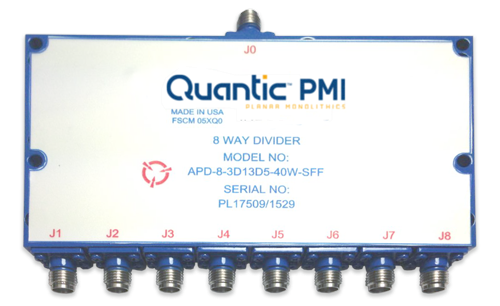

Quantic PMI Model APD-8-3D13D5-40W-SFF is an 8 Way Power Divider operating between 3.1 to 3.5 GHz that has a maximum Insertion loss of 0.6 dB maximum and a isolation of 23 dB minimum. The compact housing measures 4.1" x 2.15" x 0.44" and is outfitted with SMA Female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8 Way
Frequency Range (GHz): 3.1 to 3.5
Frequency Min (GHz): 3.1
Frequency Max (GHz): 3.5
Isolation (dB): 23 dB Min
Insertion Loss (dB): 0.6 dB Max
VSWR (In/Out): 1.3:1 / 1.2:1
Amplitude Balance: ±0.2 dB Max
Phase Balance: ±2° Max
Power Handling: 40 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Size: 4.1" x 2.15" x 0.44"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Humidity: Up to 90% (Non-Condensing)
