APD-2-3R6G5G-NFF Active

4 Way Power Divider

Buy Now
APD-2-3R6G5G-NFF
Product Feature

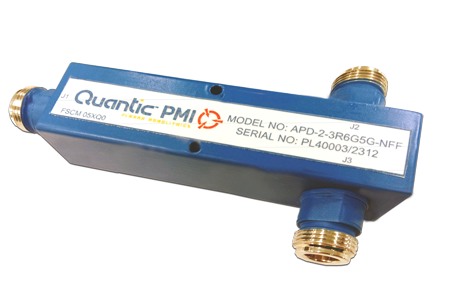

Quantic PMI Model APD-2-3R6G5G-NFF is a 2 Way Power Divider that operates over the frequency range of 3.6 to 5 GHz with a maximum insertion loss of 0.3 dB, a maximum VSWR of 1.25, and an operating power of 300 W. This model has N-type female connectors in a housing that measures 3.88" x 0.98" x 0.98".

Product Specifications

General Parameters:
Status: Active
Type: 2 Way
Frequency Range (GHz): 3.6 to 5
Frequency Min (GHz): 3.6
Frequency Max (GHz): 5
Insertion Loss (dB): 0.3 dB Max
VSWR (In/Out): 1.25 Max (Input)
Impedance: 50 Ohm
Input Port Number: 1
Output Port Number: 2
Split Loss: 3 dB
PIM (dBc @ 2 x 43 dBm): -161 dBc Max @ 2 x 43 dBm
(1.9 GHz, 2.6 GHz)
Average Power: 300 W
Return Loss: 19.1 dB Min
Connectors: N Female
Size: 3.88" x 0.98" x 0.98"
Weight: 5 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -25 °C to +85 °C
Temperature (Non-Operating): -65 °C to +125 °C
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
Relative Humidity: Up to 100%
