APD-8-800M2D5G-SFF-30W * Active

8 Way Power Divider

Buy Now
APD-8-800M2D5G-SFF-30W *
Product Feature
Additional Documents

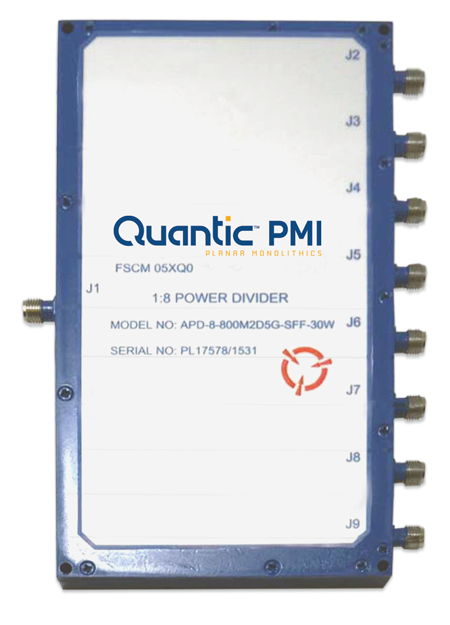

Quantic PMI Model APD-8-800M2D5G-SFF-30W is an eight Way power divider featuring high isolation of 20 dB minimum, low insertion loss of ≤1.2 dB, 1.3:1 VSWR measured, designed for 0.8 to 2.5 GHz broadband use and high reliability.  Unit size is 3.39" x 5.91" x 0.55" and contains SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Type: 8 Way
Frequency Range (GHz): 0.8 to 2.5
Frequency Min (GHz): 0.8
Frequency Max (GHz): 2.5
Isolation (dB): 20 dB Min
Isolation (dB) - Measured: 20 dB Min - Measured 20.24 dB
Insertion Loss (dB): <1.2 dB
Insertion Loss (dB) - Measured: <1.2 dB - Measured 0.74 dB
VSWR (In/Out): 1.4:1
Amplitude Balance: ±0.5 dB
Phase Balance: ±5°
Power Handling: 30 W Max (Forward)
1 W Max (Reverse)
Impedance: 50 Ohm
Connectors: SMA Female
Size: 3.39" x 5.91" x 0.55"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
