HBDFM-218-BD-DP Active

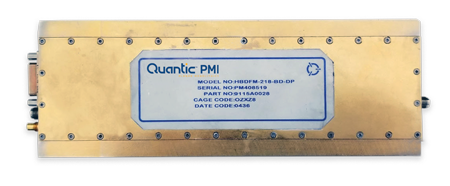

High Band Direction Finding Module, Uni-Directional, Multi-Function Device

Product Feature

PMI Model No.: HBDFM-218-BD-DP, is a High Band Direction Finding Module from 2.0-18.0 GHz, Uni-Directional, Multi-Function Device that routes the signal present at the RF Input Connector through one of its four channels to the RF Output Connector, to amplitude modulate the input signal.  The input and output ports can be switched to internal 50 Ohm terminations to ensure matched source and load impedance for interfacing devices during off-times and Isolation or VSWR tests.

Additional product information under, http://www.planarmonolithics.com/toc/hbdfm.htm

Product Specifications

General Parameters:
Status: Active
Product Description: HBDFM-218-BD-DP, is a High Band Direction Finding Module from 2.0-18.0 GHz, Uni-Directional, Multi-Function Device that routes the signal present at the RF Input Connector through one of its four channels to the RF Output Connector, to amplitude modulate the input signal. The input and output ports can be switched to internal 50 Ohm terminations to ensure matched source and load impedance for interfacing devices during off-times and Isolation or VSWR tests.
Item No.: 72
Size: 6.9” x 2.48” x 0.85”
Frequency Range: 2.0 to 18.0 GHz
Connector: SMA Female
RF Output Power Level and Gain Compression: Power Out = +21 dBm Min. at all frequencies with Input Power = +0 dBm and Attenuation set at minimum, Gain Compression at 0.9 dB maximum under these conditions.
RF Output Spectral Purity: Input Spurious Levels: -60 dBc Max
Input Harmonic Levels: -10 dBc Max
Noise Figure: 8.5 dB Max @ Min Attenuation
RF Input Signal-To-Noise Ratio: 70 dB Min
Macro-Gain Flatness Amplitude Taper: 8.0 dB Max Peak-To-Peak @ -10 dBm Input
Fine-Grain Gain Flatness: 3.0 dB Max Peak-To-Peak for any 40 MHz Bandwidth @ -10 dBm Input
VSWR: 2.0:1, RF Input, RF Output
