CS00248 Active

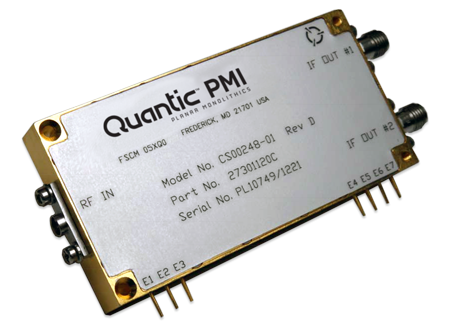

PMI Model No. CS00248 is a lo doubler module covering the frequency range of 3.6 to 13.3 GHz. The module takes an input frequency of 3.6 to 6.5 GHz and supplies an output of 3.6 to 13.3 GHz.

Product Specifications

General Parameters:
Status: Active
Product Description: PMI Model No. CS00248 is a lo doubler module covering the frequency range of 3.6 to 13.3 GHz. The module takes an input frequency of 3.6 to 6.5 GHz and supplies an output of 3.6 to 13.3 GHz.
Item No.: 14
Sub Harmonics and Multiples: -65 dBc max.
Sub Harmonics of 3.85 to 3.95 GHz: -75 dBc max.
Sub Harmonics of 4.85 to 4.90 GHz: -75 dBc max.
Control Logic: TTL, Positive True
Power Requirements: +7.5 VDC @ ±5% 600 mA max.
Analog Amplitude Control: 0 V = Min Attenuation
+5 V = Max Attenuation
Out1/2 On-Off Isolation: -35 dBc min.
Connector In: Gilbert (GPO)
Connector Out: SMA (F)
Environmental Ratings:
Temperature: -10°C to +65°C (Operating)
-40°C to +85°C
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
