PTRAN-CC-100M18G-70-MAH Active

Transceiver Module - 3U Open VPX

Product Feature

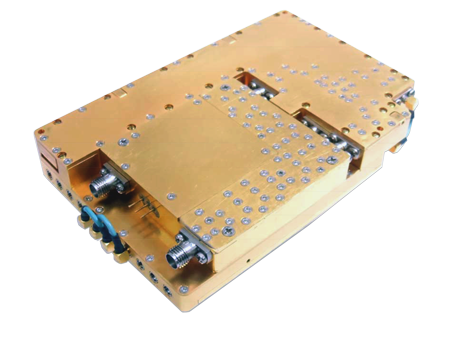

PMI Model No. PTRAN-CC-100M18G-70-MAH is a transceiver module covering the frequency range of 100 MHz to 18.0 GHz. This is part of a full transceiver subsystem that fits into a 3U open VPX form factor utilizing the high speed VITA 67 RF connector. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz range. It also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion. The unit is made to attach to an FPGA controller card.

Product Specifications

General Parameters:
Status: Active
Product Description: PMI Model No. PTRAN-CC-100M18G-70-MAH is a transceiver module covering the frequency range of 100 MHz to 18.0 GHz. This is part of a full transceiver subsystem that fits into a 3U open VPX form factor utilizing the high speed VITA 67 RF connector. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz range. It also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion. The unit is made to attach to an FPGA controller card.
Item No.: 2
