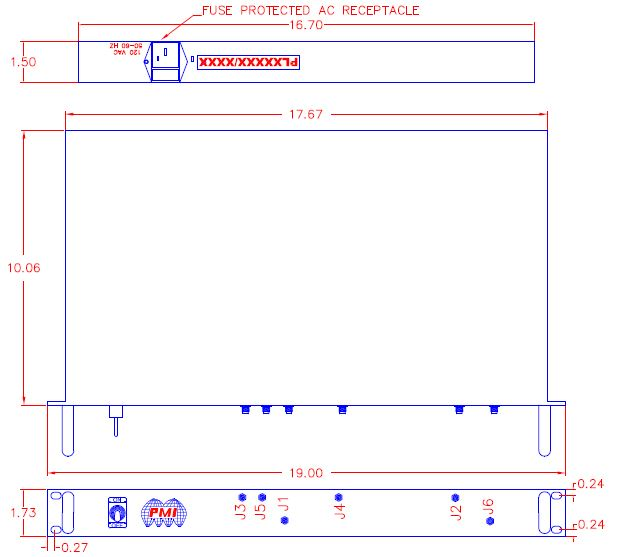

Product Description: | PMI Model No. PLM-8G12G-STE-MCCP-PR is a prototype "Proof of Concept" Link Module for special test equipment. It is designed to operate over the 8.0 to 12.0 GHz frequency range. It employs directional couplers, power divider/combiners, a circulator, and extended range DLVA, a threshold detector, and a down link blanking switch. The threshold detector opens the blanking switch whenever an uplink signal is detected, preventing reflected signals at J3 from changing the level at the ERDLVA input. |
Table 2 Losses: | J3-ERDLVA: -20.40 dB nominal, -17.85 dB min., -22.95 dB max., ±2.55 dB TOL J1-ERDLVA: -37.75 dB nominal, -34.90 dB min., -40.60 max., ±2.85 dB TOL J1-J5 Up Link Monitor: -21.75 dB nominal, -20.25 dB min., -23.35 dB max., ±1.50 dB TOL J3-J4 Down Link Monitor: -21.80 dB nominal, -20.25 dB min., -23.35 dB max., ±1.55 dB TOL J1-J6 UL/DL Monitor: -43.60 dB nominal, -39.75 dB min., -47.45 dB max., ±3.85 dB TOL J3-J6 UL/DL Monitor: -26.25 dB nominal, -22.70 dB min., -29.80 dB max., ±3.55 dB TOL J1-J3 Up Link: -2.30 dB nominal, -1.65 dB min., -2.95 dB max., ±0.65 dB TOL |
