| General Parameters: |
|---|
| Status: | Active |
|---|
| Product Description: | PMI model number PIA-BTFL-GPO-2CH is an dual channel integrated assembly that consists of a Bias-Tee, High Pass Filter, and Limiter. This compact module is supplied with field replaceable GPO connectors. The module is designed to be supplied either in hermetic or non-hermetic form. Order Option -HERM for hermetically sealed version. |
|---|
| Item No.: | 10 |
|---|
| Connectors: | GPO - Limited Detent |
|---|

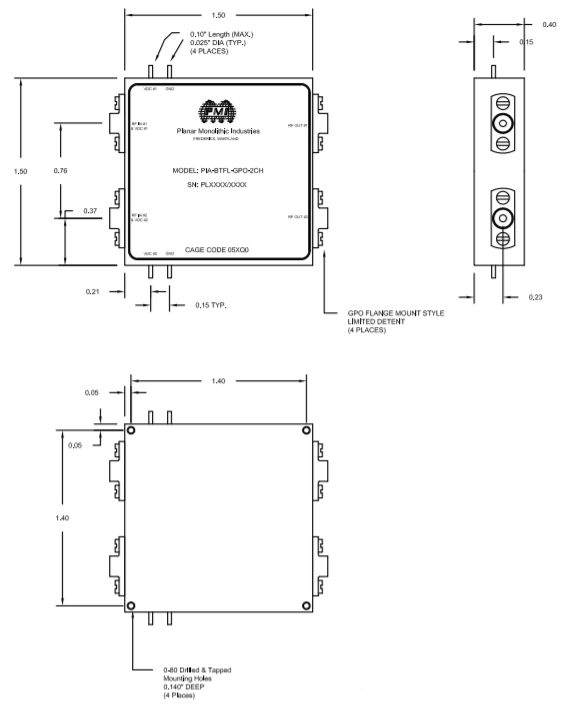

| Size: | 1.5" x 1.5" x 0.4" |
|---|
| Finish: | MIL-SPEC Epoxy Paint (Gray Color)
Mounting surface to be paint free |
|---|
| Weight: | 3 oz typ. |
|---|
| Insertion Loss: | 2.5 dB max. |
|---|
| Filter Rejection: | -15 dB min. @ 1.7 GHz
-20 dB min. @ DC to 1.5 GHz |
|---|
| Passband Lower Limit: | 2.0 GHz typ. |
|---|
| Passband Upper Limit: | 19.0 GHz |
|---|
| -3dB Cut-Off: | 1.85 GHz typ. |
|---|
| Passband VSWR: | 1.5:1 typ., 2.0:1 max. |
|---|
| Bias Rise/Fall Time: | 50 ns max. (90% to 10%) +12 to -12 V or -12 to +12 V Pulses tr = 1 ns Rload = 430 Ohms |
|---|
| Limiting Threshold: | +8 dBm min. |
|---|
| Flat Leakage: | +20 dBm CW max.
+23 dBm Pulsed max. |
|---|
| Pulse Recovery Time: | 50 ns max. (To within 1 dB of Insertion Loss) |
|---|
| Power Handling: | 2 W CW max.
50 W (12 usec max. PW, 1% Duty Cycle) |
|---|
| Bias Current: | ±30 mA Operational (±40 mA max.) |
|---|
| Bias Voltage: | -12 to +12 VDC |
|---|
| Sealing: | Epoxy Sealed |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40°C to +55°C (Operating)
-65°C to +125°C (Storage) |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Vibration: | MIL-STD-202F, Method 204C Cond. B |
|---|
| Salt Fog: | MIL-STD-202F, Method 101D-EST Cond. B |
|---|
| Thermal Shock: | MIL-STD-202F, Method 107C Cond. A |
|---|
