| General Parameters: |
|---|
| Status: | Active |
|---|

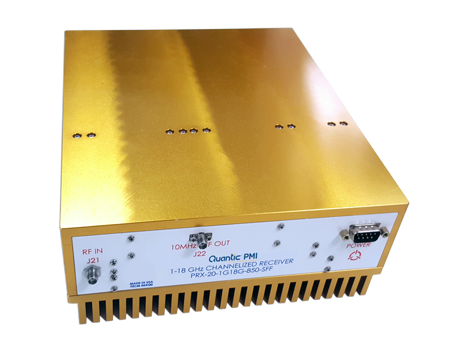

| Product Description: | PMI Model No. PRX-20-1G18G-850M-SFF is a channelized receiver covering 1 to 18 GHz instantaneously in 20 channels. IF frequencies between 1 and 4.4 GHz are output and ready to be digitized. The receiver is designed to cover a 60 dB dynamic range using a built-in internal 10 MHz reference to lock the internal LO’s used in down-converting the signal into the necessary frequency bands. The reference is also output at a +20 dBm level to be used for synchronization. All of this state-of-the-art functionality is packaged in a 10” x 8” x 3” package consuming around 50 Watts of power. |
|---|
| Item No.: | 67 |
|---|
| Power Supply: | +12 V ± 5% @ 3 A Max
+7 V to +12 V ± 5% @ 4.5
-5 V ± 5% @ 1 A Max |
|---|
| Size: | 10.0” x 8.0” x 3.0” |
|---|
| Finish: | Gold Anodized, MIL-A-8625 TYPE II, CLASS 2 Dyed Gold, Nickel Acetate Seal Per MIL-A-8625 Paragraph 3.8.1.2 |
|---|
| RF Input Frequency: | 1.0 to 18.0 GHz |
|---|
| RF Input Power: | -55 to +5 dBm |
|---|
| RF Input VSWR: | 2.0:1 Max |
|---|
| RF Input Spurious Free Dynaminc Range: | 60 dB Min |
|---|
| RF Output Frequency: | 5.0 GHz Max, 4.4 GHz Typ |
|---|
| RF Output Channels: | 20 |
|---|
| RF Output Gain: | 0 dB ± 3 dB Typ |
|---|
| RF Output Passband: | 870 MHz Typ |
|---|
| RF Output Stopband: | 1.4 GHz Max |
|---|
| Reference Output Frequency: | 10 MHz |
|---|
| Reference Output Power: | +20 dBm |
|---|
| Reference Output Stability: | ±0.1 PPM |
|---|
| Reference Output Connectors: | Input: SMA (F)
Outputs: SMA (F)
Reference Output: SMA (F)
Power: 9-Pin D-Sub (M) |
|---|
| Reference Output Aging: | ± 30 PPB Yearly |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +70 ºC (Operating)
-40 ºC to +85 ºC (Non-Operating) |
|---|
| Humidity: | MIL-STD 810, 0 to 95% Non-Condensing |
|---|
| Shock: | MIL-STD 810, 516.6 Compliant, 20G, 11 ms Duration |
|---|
| Altitude: | MIL-STD 810, 15,000 ft. |
|---|
| Vibration: | MIL-STD 810 |
|---|
