General Parameters: |
Status: | Active |

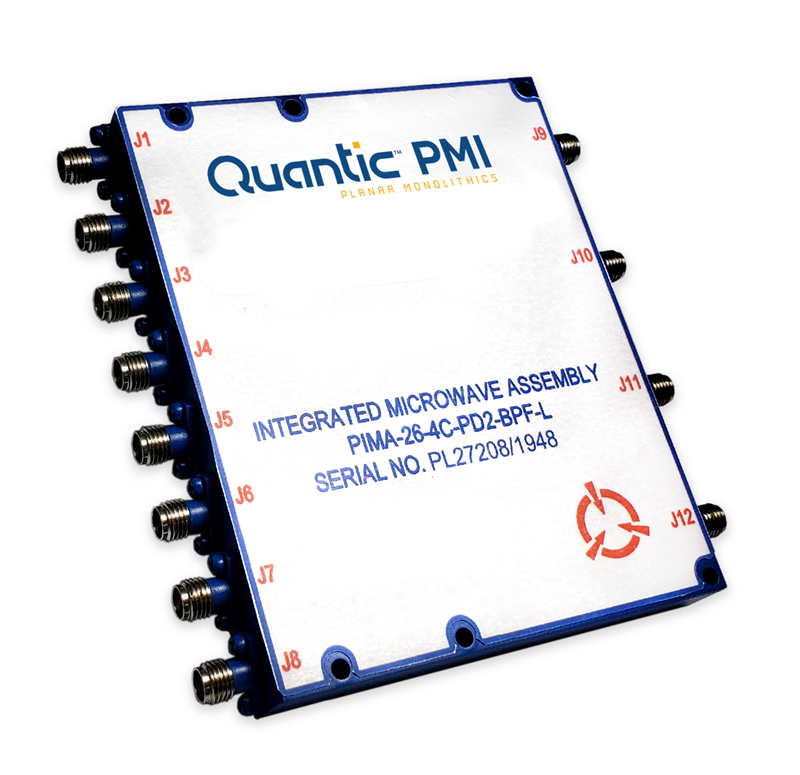

Product Description: | Quantic PMI Model No. PIMA-26-4C-PD2-BPF-L is an integrated microwave assembly consisting of 4 independent channels. Each channel incorporates a 2-way power divider and a bandpass filter. |
Item No.: | 81 |
Connectors: | SMA (F) |
Size: | 4.0” x 3.25” x 0.5” |
Finish: | Blue Hard Epoxy Polyimide Coating IAW MIL-C-22750, TYPE 1 over Epoxy Polyimide Primer IAW MIL-P-2377, TYPE 1, CLASS 1 OR 3 |
Weight: | 400 g |
Frequency Range: | 2.0 to 6.0 GHz |
Insertion Loss: | 4.5 dB Max (Above 3 dB) |
Isolation: | 13 dB Min, 15 dB Typ |
Amplitude Balance (3.0 to 5.0 GHz): | ±0.5 dB Max, ±0.1 dB goal |
Phase Balance (3.0 to 5.0 GHz): | ±5° Max, ±1° goal |
Filter Passband: | 3.0 to 5.0 GHz |
Passband Flatness: | ±1 dB (3.2 to 4.8 GHz) |
Number of Channels: | 4 |
Channel to Channel Isolation: | 60 dB Min |
Filter Rejection: | >=55 dB (Below 2667 MHz) >=55 dB (Above 5333 MHz) |
VSWR: | 2.0:1 Max |
Environmental Ratings: |
Temperature: | 0 °C to 50 °C (Operating) -40 °C to +70 °C (Storage) |
Humidity: | MIL-STD-202, 5 to 95% Non-Condensing |
Shock: | RTCA/DO-160G, Section 7.0 Compliant |
Altitude: | MIL-STD-202, 15,000 ft. |
Fungi: | RTCA/DO-160G, Section 13/MIL-STD-810F, Method 508.5 (Fungus) |
Flammability: | RTCA/DO-313 |
Vibration: | RTCA/DO-160G, Section 8.0 Table 8-1 for Fixed Wing Turbofan, Category S Curve C |
