| General Parameters: |
|---|
| Status: | Active |
|---|

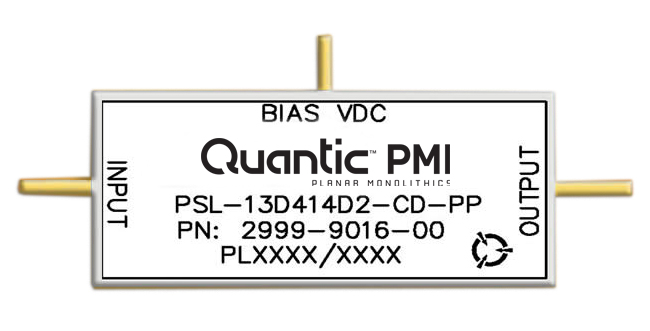

| Product Description: | PMI Model Number PSL-13D414D2-CD-PP is a switch limiter operating in the 13.4 to 14.2 GHz frequency range. A +10 mA bias will turn the switch off while a -10 mA bias will turn the switch into the insertion loss state. The integrated limiter will handle 20 W having a 2 µs pulse width. |
|---|
| Item No.: | 28 |
|---|
| RF Input Power Level: | Max Average Power:
10 W (@ Switch)
1 W (@ Limiter)
Max Peak Power:
75 W for 300 ns Pulse Width (@ Switch)
20 W for 2 µs Pulse Width (@ Limiter) |
|---|
| Frequency Range: | 13.4 to 14.2 GHz |
|---|
| Insertion Loss: | 1.3 dB Max |
|---|
| Isolation: | 40 dB Min (Blanking) |
|---|
| Frequency Min: | 13.4 GHz |
|---|
| Frequency Max: | 14.2 GHz |
|---|
| Maximum Input Power (Without Damage): | 75 W for 300 ns Pulse Width (At Switch)
20 W for 2 us Pulse Width (At Limiter) |
|---|
| Return Loss: | -15 dB Max (@ Negative Bias / Insertion Loss State) |
|---|
| Bias Rise/Fall Time: | 20 ns Max / 20 ns Max
(Input CW Power < 1dB Compression Point) |
|---|
| Sealing: | Hermetic |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +100 ºC Operating
-65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
