PTRAN-100M18G-70-MAH Active

Transceiver

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PTRAN_100M18G_70_MAHTransceiverModule_83337614_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PTRAN_100M18G_70_MAHlowerhalfinternal_54371213_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/tran1_636505677657224136_29343464_400.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/inreviumbottom1_000_636505676798926837_21607691_400.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/PTRAN_100M18G_70_MAHPhase1_99674642_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/InternalChassisPhoto_84994380_400.png
Product Feature - PTRAN-100M18G-70-MAH

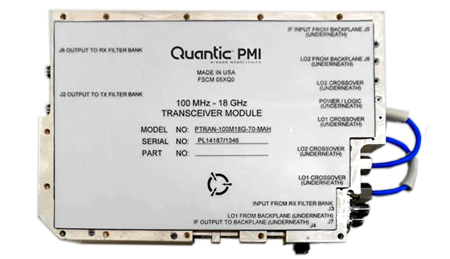

Quantic PMI Model No. PTRAN-100M18G-70-MAH is a transceiver covering the frequency range of 100 MHz to 18.0 GHz. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz frequency range.  It also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion.

Product Specifications

General Parameters:
Status: Active
Product Description: Quantic PMI Model No. PTRAN-100M18G-70-MAH is a transceiver covering the frequency range of 100 MHz to 18.0 GHz. This unit up-converts a 100 MHz to 4.0 GHz transmit signal to the 2.0 to 18.0 GHz frequency range. It also down-converts a 100 MHz to 18.0 GHz received signal to the 100 MHz to 4.0 GHz intermediate frequency range for analog to digital conversion.
Item No.: 29
