General Parameters: |
Status: | Active |

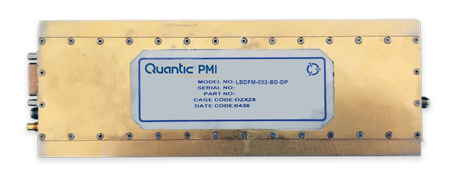

Product Description: | LBDFM-052-BD-DP, is a Low Band Direction Finding Module from 500-2000 MHz, Uni-Directional, Multi-Function Device that routes the signal present at the RF Input Connector through one of its four channels to the RF Output Connector, to amplitude modulate the input signal. The input and output ports can be switched to internal 50 Ohm terminations to ensure matched source and load impedance for interfacing devices during off-times and Isolation or VSWR tests. |
Item No.: | 4 |
Connectors: | SMA Female |
Size: | 6.9” x 2.48” x 0.85” |
Frequency Range: | 0.5 to 2.0 GHz |
RF Input Signal Level Range: | +5 dBm to +8 dBm Typ., +10 dBm Max |
RF Output Power Level and Gain Compression: | Power Out = +14 dBm Min. at all frequencies with Input Power = +5 dBm and Attenuation set at minimum, Gain Compression at 0.9 dB maximum under these conditions. |
RF Output Spectral Purity: | -60 dBc Max for Spurious Signals and Harmonic Signals |
Noise Figure: | 8.5 dB Max @ Min Attenuation |
Macro-Gain Flatness Amplitude Taper: | 8.0 dB Max Peak-To-Peak @ -10 dBm Input |
Fine-Grain Gain Flatness: | 3.0 dB Max Peak-To-Peak for any 40 MHz Bandwidth @ -5 dBm Input |
VSWR: | 2.0:1, RF Input, RF Output |
