RSM-218-65 Active

Receiver Front-End IFM Subsystem

Product Feature
Additional Documents

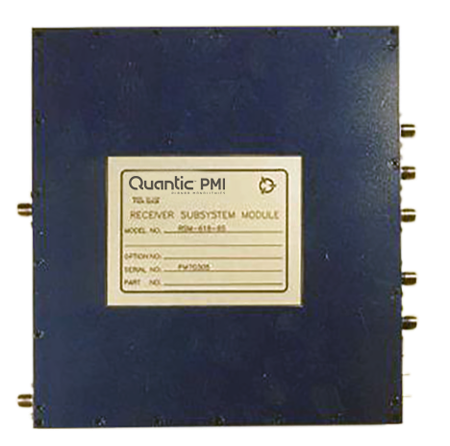

Quantic PMI Model No: RSM-218-65 is a Receiver Front-End IFM Subsystem with 2.0 to 18.0 GHz DC-Coupled Log Video Amplifier Outputs and Five DC-Coupled Frequency Discriminator Video Outputs (2 to 4 GHz, 4 to 6 GHz, 6 to 10 GHz, 10 to 14 GHz, and 14 to 18 GHz).

Product Specifications

General Parameters:
Status: Active
Product Description: Quantic PMI Model No: RSM-218-65 is a Receiver Front-End IFM Subsystem with 2.0 to 18.0 GHz DC-Coupled Log Video Amplifier Outputs and Five DC-Coupled Frequency Discriminator Video Outputs (2 to 4 GHz, 4 to 6 GHz, 6 to 10 GHz, 10 to 14 GHz, and 14 to 18 GHz).
Item No.: 5
Connectors: SMA Female
Size: 5.5” x 9.6” x 1.5”
Frequency Range: 2 to 18 GHz
RF Input Power: +15 dBm
RF Input VSWR: 3.0:1 Max @ -20 dBm, 2.5:1 Typ
Pulsewidth: 100 ns Min (-65 dBm to 0 dBm)
DC Supply: +15 VDC @ <950 mA (850 mA Typ)
-15 VDC @ <450 mA (275 mA Typ)
Frequency Flatness: ±2.5 dB Max, ±1.75 dB Typ
LOG Linearity: ±2.5 dB Max
Tangential Sensitivity: -68 dBm Max
LOG Video Output: Rise Time: 25 ns Max
Slope: 50 mV/dB (±10% Max)
Frequency Discriminator: 5 Outputs: 2 to 4 GHz, 4 to 6 GHz, 6 to 10 GHz, 10 to 14 GHz, and 14 to 18 GHz
Accuracy: ±0.3 GHz Max, ±0.2 GHz Typ
Slope: -50 mV/GHz (±10% Max)
Dynamic Range: -65 to 0 dBm
