| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Product Description: | PMI Model No. PIM-CPL-CMBR-2D6G5D2G-15P-16N-4D5L-12V-SFF is a 2.6 to 5.2 GHz Coupler/Combiner Assembly. This model has 8 inputs, 2 direct outputs and a coupled output port. The direct outputs have 4.5 dB loss, a 16 dB noise figure, and a +15 dBm input P1dB. The unit is powered with +12V. |
|---|
| Item No.: | 13 |
|---|
| Harmonics: | -20 dBc max. @ +3 dBm Input Power |
|---|
| Insertion Loss: | J1-J8 to J9, J10: -4.2 to -5.3 dB @ 2.6 GHz, -3.9 to -5 dB @ 5.2 GHz
J1-J8 to J11: -9.8 to -11.1 dB @ 2.6 GHz, -9.5 to -10.8 dB @ 5.2 GHz |
|---|
| Isolation: | J1-J8: 27 dB min.
J9 to J10: 18 dB min. |
|---|
| Operating Current: | SMA (F) |
|---|
| Spurious: | -60 dBc max. |
|---|
| Input P1dB: | +15 dBm min. |
|---|
| Insertion Flatness: | J1-J8 to J9, J10: ±0.7 dB max. Over 1 GHz BW Relative to Best Fit Straight Line
J1-J8 to J11: ±0.8 dB max. Over 1 GHz BW Relative to Best Fit Straight Line |
|---|
| Amplitude Balance: | J1-J8: ±0.2 dB max. |
|---|
| Amplitude Over Temperature: | J1-J8: ±0.7 dB max. |
|---|
| Maximum RF Input Power: | +15 dBm |
|---|
| Input/Output (J1-J10) VSWR: | 1.5:1 max. |
|---|
| Coupled Port (J11) VSWR: | 1.3:1 max. |
|---|
| Noise Figure: | 16.4 dB max. @ 2.6 GHz, 15.7 dB max. @ 5.2 GHz |
|---|
| DC Power: | +12 VDC (±3%) @ 190 mA max. |
|---|
| Power / Control Connector: | 9 Socket Micro-D Connector |
|---|

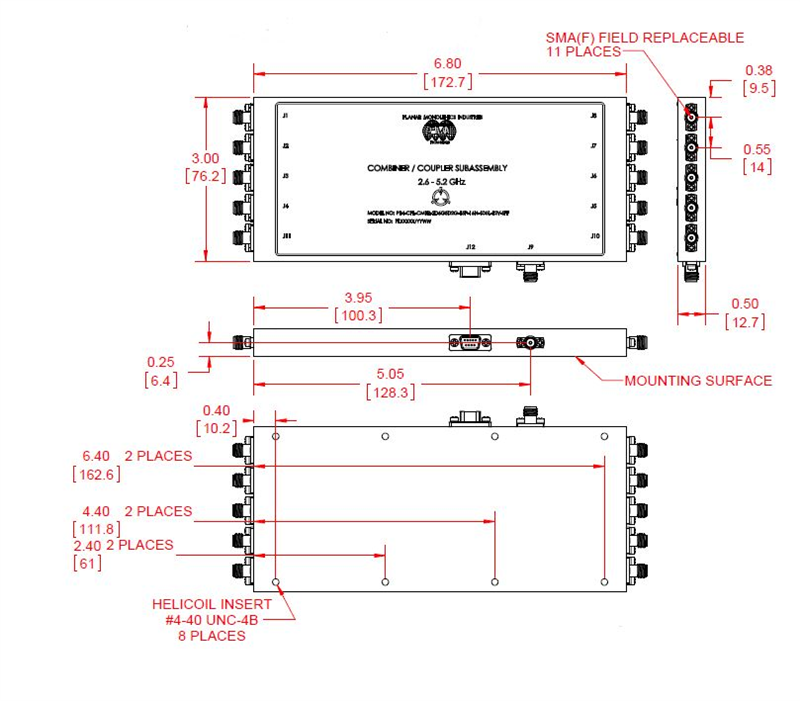

| Size: | 6.8" x 3.0" x 0.5" |
|---|
| Finish: | Painted Blue (Mounting Surface Chem Coat MIL-DTL-5541 Type I or II, Class 3) |
|---|
| Weight: | 15 oz max. |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -35°C to +77°C (Operating)
-54°C to +94°C (Storage) |
|---|
| Altitude: | MIL-STD 810, Method 500.4, Procedure I, Sea Level to 45,000 ft. |
|---|
| Vibration (Random): | 20 - 100 Hz 0.25g^2/Hz
100 - 250 Hz -3 dB/Octave
250 - 1,000 Hz 0.1 g^2/Hz
1,000 - 2,000 Hz -6 dB/Octave |
|---|
| Acoustic Noise: | 145 dB max. (Referenced to 0.0002 Dyne Per Square Centimeter) |
|---|
