PDC-42G-1850M-600M-20-292FSF Preliminary

Product Feature

PMI Model No. PDC-42G-1850M-600M-20-292FSF is a Dual Channel Down Converter Module that provides an 1850 MHz ±300 MHz IF output from a 42 GHz ±300 MHz input.  This module provides a minimum 20 dB of gain with a minimum P1dB of +10 dBm.  The PLO has an internal reference and lock detect TTL output is available at the D connector.

Product Specifications

General Parameters:
Status: Preliminary
Product Description: PMI Model No. PDC-42G-1850M-600M-20-292FSF is a Dual Channel Down Converter Module that provides an 1850 MHz ±300 MHz IF output from a 42 GHz ±300 MHz input. This module provides a minimum 20 dB of gain with a minimum P1dB of +10 dBm. The PLO has an internal reference and lock detect TTL output is available at the D connector.
Item No.: 63

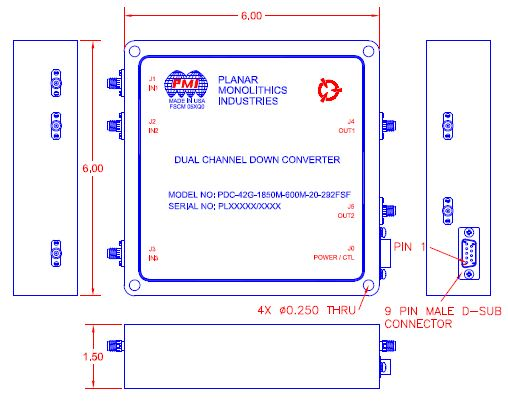

Size: 6.0" x 6.0" x 1.5" max., 4.0" x 4.0" x 1.0" goal
Finish: Painted Blue
RF Input Frequency: 42 GHz ± 300 MHz
RF Input Power: -10 dBm typ.
RF Input VSWR: 2.0:1 max.
RF Output Frequency: 1850 MHz ± 300 MHz
RF Input Noise Figure: 15 dB max.
RF Input Gain: 20 dB min.
RF Input Image Rejection: 40 dB min.
RF Input Isolation (J1, J2, J3): 40 dB min.
RF Output P1dB: +10 dBm min.
RF Output Phase Stability Between Channels: ±5° typ.
Internal LO Frequency: 40.15 GHz
Internal LO Stability: ±1 PPM
Internal LO Connectors: Inputs: 2.92 mm (F)
Outputs: SMA (F)
Power/Control: 9-Pin D-Sub (M)
Internal LO SW Ctl: TTL 0: J1 In
TTL 1: J2 In
Internal LO Power Supply: +15 V, -15 V
Environmental Ratings:
Temperature: 0°C to +60°C (Operating)
-40°C to +85°C (Non-Operating)
