| General Parameters: |
|---|
| Status: | Active |
|---|
| Product Description: | PMI Model RFFD-618-730049 is a 6 to 18GHz low pass filter combined with a Schottky Biased Detector including a reverse voltage protection diode. A duplicate detector and protection diode is included for DC offset voltage compensation. |
|---|
| Item No.: | 7 |
|---|
| Connectors: | RF Input: SMA (M) Field Replaceable
Video Output: SMA (F) Field Replaceable
DC Connections: Feed-Thru Solder Pins |
|---|

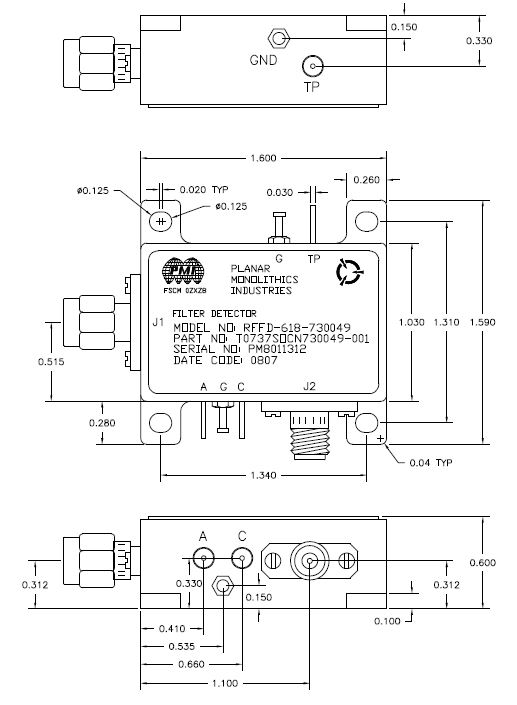

| Size: | 1.60" x 1.59" x 0.6" |
|---|
| Frequency Range: | 6.0 to 18.0 GHz |
|---|
| Filter Rejection: | 23 dB min. (20 to 26 GHz) |
|---|
| Return Loss: | -10 dB |
|---|
| Maximum Input Power: | 7 dBm Operational, 20 dBm Survival |
|---|
| Voltage Sensitivity: | 80 to 140 mV |
|---|
| Barrier Potential: | 225 to 270 mV with 100 uA bias to +25°C |
|---|
| Operating Dynamic Range: | -23 to +7 dBm |
|---|
| Frequency Flatness: | ±0.8 dB with 1 dB to 2 dB Typical Slope |
|---|
| Diode Voltage Protection: | 1.0 V max. @ 30 mA |
|---|
| Tracking Detector-Balance: | ±20 mV max. Over Operating Temperature |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -54°C to +110°C (Operating)
-65°C to +110°C (Storage) |
|---|
| Humidity: | MIL-STD-202, Method 106 |
|---|
| Shock: | MIL-STD-202, Method 213 Cond. A |
|---|
| Altitude: | MIL-STD-810C, Method 504.1 |
|---|
| Vibration: | MIL-STD-810C, Category B2 |
|---|
| Thermal Shock: | MIL-STD-202, Method 170 Cond. B |
|---|
