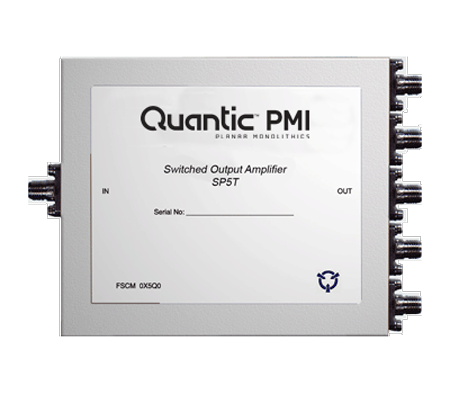

Switchable Output Amplifier Preliminary

Integrated Switch/Amplifier Modules (500 kHz to 40 GHz / SPST thru SP16T)

Additional Documents

Quantic PMI offers a full line of switchable output amplifiers that cover the 500 kHz to 40 GHz frequency range.  These amplified switches offer the following features:

  • Frequency Ranges from 500 kHz to 40 GHz
  • Zero Loss or Gain Levels up to 60 dB
  • Output Power Levels up to +30 dBm
  • Signal Path direction can be forward, reverse, or bidirectional
  • Custom Package Sizes Available
  • Internal Voltage Regulation for +12 to +15 VDC Operation
  • Internal Reverse Voltage Protection
  • TTL Controlled Switches (Ethernet and RS-232 available)
  • Ultra-Fast Switching Speeds
  • High Port-Port Isolation
  • Unconditional Stability

Product Specifications

General Parameters:
Status: Preliminary
Product Description:

Quantic PMI offers a full line of switchable output amplifiers that cover the 500 kHz to 40 GHz frequency range.  These amplified switches offer the following features:

  • Frequency Ranges from 500 kHz to 40 GHz
  • Zero Loss or Gain Levels up to 60 dB
  • Output Power Levels up to +30 dBm
  • Signal Path direction can be forward, reverse, or bidirectional
  • Custom Package Sizes Available
  • Internal Voltage Regulation for +12 to +15 VDC Operation
  • Internal Reverse Voltage Protection
  • TTL Controlled Switches (Ethernet and RS-232 available)
  • Ultra-Fast Switching Speeds
  • High Port-Port Isolation
  • Unconditional Stability
Item No.: 30
