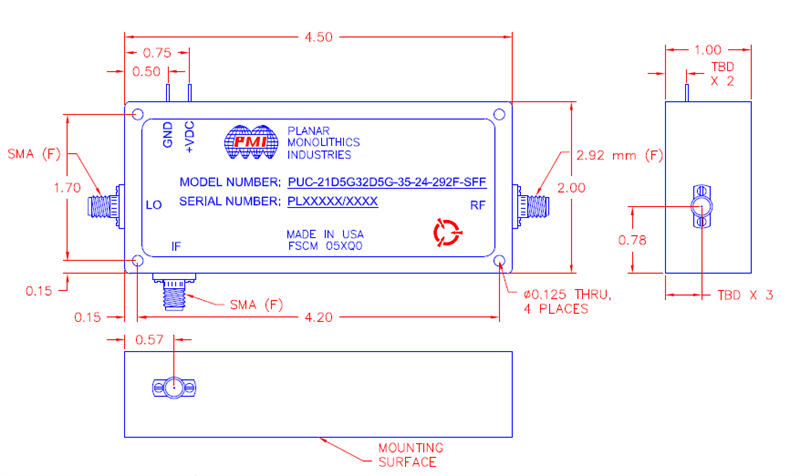

PMI Model No. PUC-21D5G32D5G-35-24-292F-SFF is an Up-Converter with an amplified RF output path covering 21.5 to 32.5GHz. The RF output lower sideband is located at 2*LO - IF and the upper sideband is located at 2*LO + IF. The unit is supplied with a 2.92mm(F) connector on the RF output and SMA(F) connectors on the LO/IF input in a housing measuring 4.5" 2.0" x 1.0"
