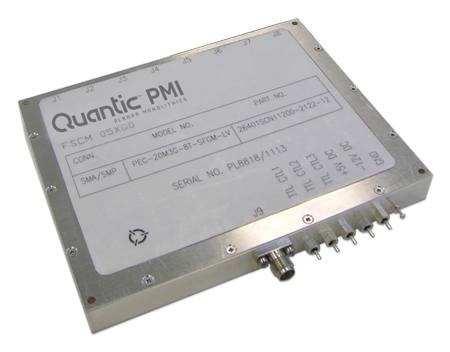

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.02 to 3 |
|---|
| Frequency Min (GHz): | 0.02 |
|---|
| Frequency Max (GHz): | 3 |
|---|
| Insertion Loss (dB): | 2 dB (0.02 to 1 GHz),
2.5 dB (1 to 2 GHz),
4 dB (2 to 3 GHz) |
|---|
| Insertion Loss - Typ (dB): | 2 dB |
|---|
| Isolation (dB): | 70 dB Min (0.02 to 1 GHz),
60 dB Min (1 to 2 GHz),
50 dB Min (2 to 3 GHz) |
|---|
| Isolation - Typ (dB): | 70 dB |
|---|
| Switching Speed: | Not Specified |
|---|
| VSWR In/Out: | 1.8:1 Max (0.02 to 1 GHz),
1.9:1 Max (1 to 2 GHz),
2.0:1 Max (2 to 3 GHz) |
|---|
| P1dB (dBm): | 23 to 25 dB (0.02 to 1 GHz),
27 to 29 dB (1 to 2 GHz),
30 to 32 dB (2 to 3 GHz) |
|---|
| Phase Balance: | ±6.0º |
|---|
| Video Transient: | Above 20 MHz -100 dBm,
Below 20 MHz -75 dBm |
|---|
| Power Supply: | +5 VDC @ 450 mA Nom,
-12 VDC @ 350 mA Nom |
|---|
| Power & Control Connector: | PINS CTL1 thru CTL3 are pulled low "0" |
|---|
| Connectors: | GPO & SMA Female |
|---|
| Size: | 4.5" x 3.6" x 0.5" |
|---|
| Finish: | Silver Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
