PT-DC40-15DB-292FF Preliminary

Pick-Off Tee

PT-DC40-15DB-292FF
  • PT-DC40-15DB-292FF
  • PT-DC40-15DB-292FF
Product Feature
Additional Documents

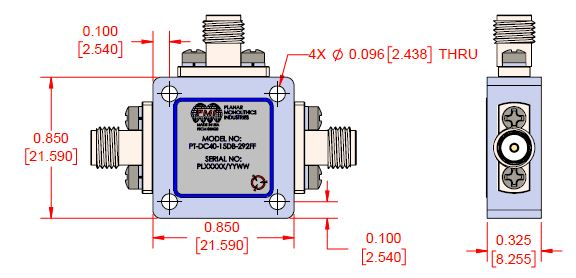

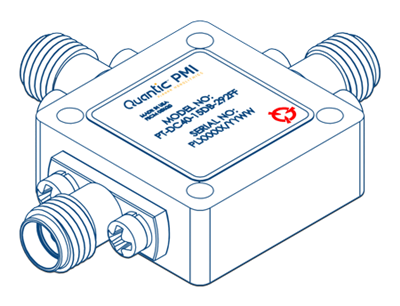

Quantic PMI Model PT-DC40-15DB-292FF is a pick-off tee with a bandwidth from DC to 40 GHz.  Package size is 0.85" x 0.85" x 0.325" with 2.92mm female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): DC to 40
Frequency, Min (GHz): DC
Frequency, Max (GHz): 40
Insertion Loss: 2 dB Max
Pick-Off Insertion Loss: 15 ± 1 dB Typ
VSWR: 2:1 Max
Maximum Input Power: 3.5 W CW
Connectors: 2.92mm Female
Finish: Painted Blue
Temperature: -55 °C to 90 °C @ 3.5 W, Linear Derate to 0 W at 110°C
Export Classification (ECCN): EAR99
