PS-360-DC-1 Option 911 Active

8-Bit Digital Controlled Phase Shifter

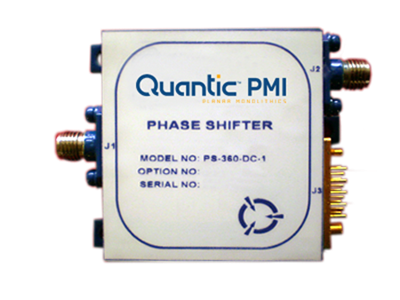

Quantic PMI Model PS-360-DC-1 Option 911 is an 8-Bit Digital Controlled Phase Shifter operating from the 9 to 11 GHz Frequency Range. The Phase Shifter has a 360˚ Range and is High Speed.

Product Specifications

General Parameters:
Status: Active
Frequency Min: 9 GHz
Frequency Max: 11 GHz
Control Bits: 8-Bit TTL
Insertion Loss: 12 dB Max
Phase Shift Range: 358.6°
Switching Speed: 500 ns
Phase Accuracy: ±12°
Power Handling Capability: +13 dBm (+30 dBm SURVIVAL)
VSWR: 2.0:1 Max
Power Supply: +12 VDC @ 250 mA Max,
-12 VDC @ 20 mA Max
Size: 2.0" X 1.75" X 0.50"
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
